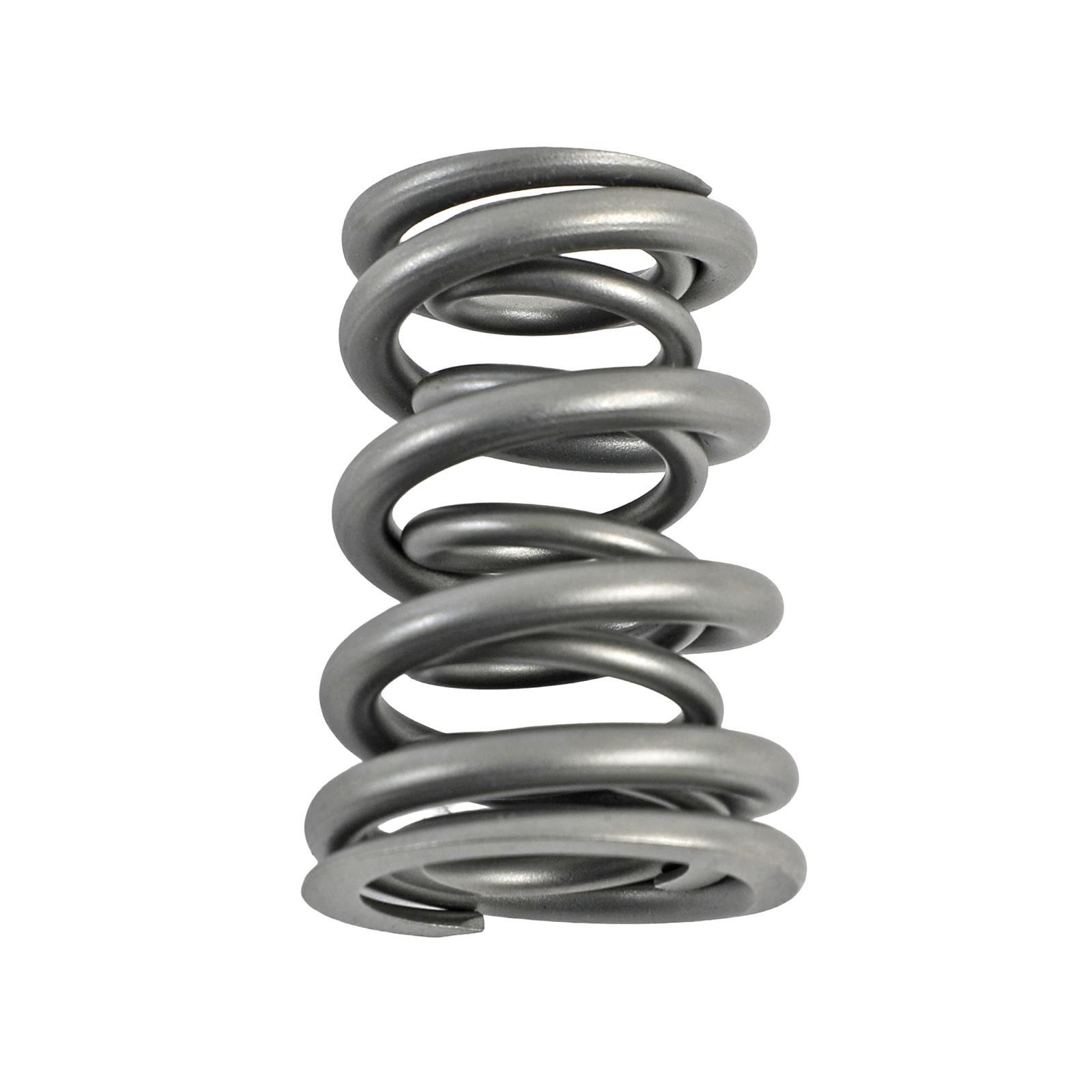

COMP Cams Valve Springs 7245-1 Spring, Dual, Conical, Each

SKU: CCA7245-1

Valve Springs

Comp Cams

COMP Cams Valve Springs 7245-1 Spring, Dual, Conical, Each

SKU: CCA7245-1

Valve Springs

Available from MFR. This item is available from the manufacturer's distribution centre. The dispatch timeframe shown is an estimate based on historical order processing and release times for this part. This item is not held in our own warehouse, and actual dispatch timing may vary depending on manufacturer workload and logistics at the time of ordering.

We accept

Description

Dual Conical Valve Springs. As opposed to dual cylindrical spring systems, COMP Cams Dual Conical Valve Springs require no interference fit to dampen spring surge. The self damping characteristic of conical geometry, along with the lower spring kinetic energy of the upper coils, provide a game-changing breakthrough in valve spring design. COMP Cams Dual Conical Valve Springs are constrained at the top and bottom with stepped retainers and spring seats to create separation. The result is that the springs naturally progressive nature can provide outstanding damping without rubbing friction or the associated heat and surface damage. These springs are designed for circle track, road Race and drag racing Applications, as well as all-out, high-RPM street/strip hydraulic Roller valve train systems with optimized lifters. Dampen coil oscillations, increase RPM limit and reduce resonance Improves valve train stability Fewer parasitic horsepower losses and more power Superfinish surface processing Non-interference fit The reduced oscillation in the Dual Conical Springs translates to less applied force and stress to the springs. This increases the lifespan of the spring and the valve train. It also allows the use of more aggressive Camshaft profiles. Seat Load Open Load Coil Bind Rate OD ID Retainers Seats Shims 150lbs @ 2.00" 630lbs @ 1.20" 1.115" 600lb/in 1.442" .646" 716-1, 1738-1 4668-1, 4669-1 4756 1.657" .861"

Part Type

Valve Springs

Data: v4.2 - Upd: 2026-10-16 13:06:21

Specifications

Product Attributes - Brand: COMP Cams
Product Attributes - Manufacturer's Part Number: 7245-1
Product Attributes - Part Type: Valve Springs
Product Attributes - Product Line: COMP Cams Valve Springs
Product Attributes - UPC: 036584283232
Product Attributes - Valve Spring Style: Conical
Product Attributes - Number of Springs Per Valve: Dual
Product Attributes - Maximum Valve Lift (in.): 0.875 in.
Product Attributes - Retainers Included: No
Product Attributes - Outside Diameter of Outer Spring (in.): 1.442 in./1.657 in.
Product Attributes - Coil Bind Height (in.): 1.115 in.
Product Attributes - Damper Spring Included: No
Product Attributes - Spring Rate (lbs./in.): 600 lbs./in.
Product Attributes - Inside Diameter of Outer Spring (in.): 1.010 in./1.225 in.
Product Attributes - Inside Diameter of Inner Spring (in.): 0.646 in./0.861 in.
Product Attributes - Locks Included: No
Product Attributes - Valve Stem Seals Included: No
Product Attributes - Valve Springs Coated: No
Product Attributes - Remanufactured: No
Product Attributes - Quantity: Sold individually.
