COMP Cams .630in Lift Conical Spring Kit w/TI Retainers 09-18 Dodge 5.7/6.2/6.4 HEMI
COMP Cams .630in Lift Conical Spring Kit w/TI Retainers 09-18 Dodge 5.7/6.2/6.4 HEMI
A$1,916.07
LAST ONE! Est Ship 4-7 days.
LAST ONE! This is the last unit at our distribution centre. Contact us if you need more. The ETA is the approximate time required to prepare your order for dispatch.
We accept
Description

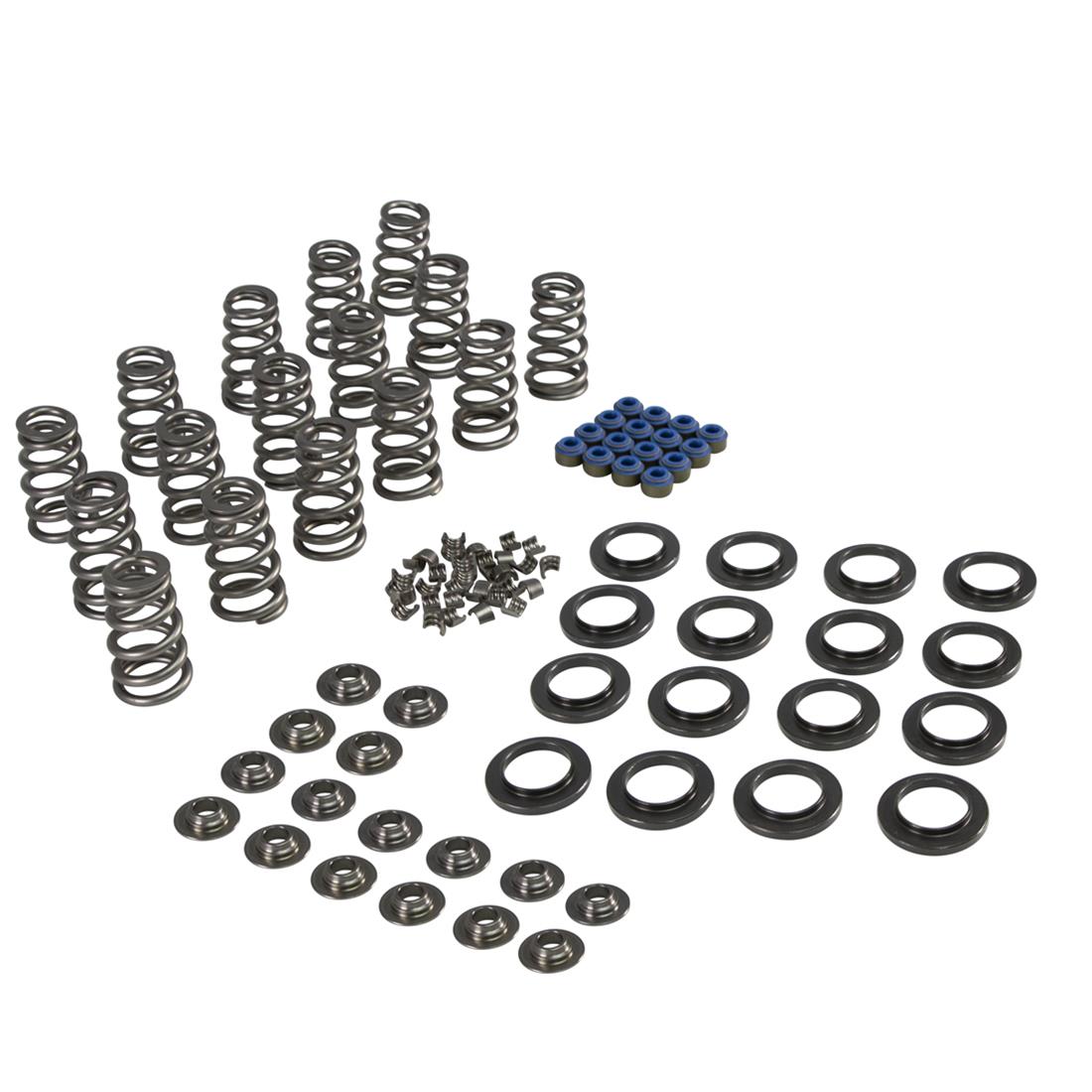

The COMP Cams .630" Lift Conical Valve Spring Kits for Dodge Gen IV HEMIs features:_x000D_ _x000D_ Max Lift: .630"_x000D_ Increased High RPM Stability_x000D_ Excellent spring upgrade for high performance and Race Applications_x000D_ Includes valve springs, locks, Seals, seats, and Titanium retainers_x000D_
Product Overview
Designed for '09-'18 Dodge 5.7L HEMI, this Conical Spring Kit includes titanium retainers, valve locks, seals and seats that require no machine work. Capable of 0.630" valve lift, this kit removes the guesswork for your HEMI engine.
Product Details
| California Proposition 65: | WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov |
|---|---|
| Coil Bind Height: | 1.125 |
| Damper: | NA |
| Description: | .630" Lift Conical Spring Kit w/ Ti Retainers for '09-'18 Dodge 5.7L HEMI |
| Free Length: | 2.110 |
| ID Big End: | 0.918 |
| ID Small End: | 0.662 |
| Included Seats: | 4683 |
| Includes Retainers?: | Yes |
| Includes Seats?: | Yes |
| Includes Shims?: | No |
| Installed Height: | 1.800 |
| Max Lift: | 0.630 |
| Number of Springs: | 16 |
| OD Big End: | 1.286 |
| OD Small End: | 1.030 |
| Open Load: | 399 |
| Part Number: | cca7228TC-KIT |
| Retainer Material: | Titanium |
| Seat Pressure: | 136 |
| Spring Rate: | 440 |
| Spring Seat Type: | Chromemoly Steel |
| Spring Style: | CONICAL |
| Title: | .630" Lift Conical Spring Kit w/ Ti Retainers for '09-'18 Dodge 5.7L HEMI |
| Valve Spring Series: | CONICAL |
Application Summary
09-'18 Dodge 5.7L HEMI
Part Type
Engine Valve Spring Kit
Specifications
- Product Attributes - Brand
- COMP Cams
- Product Attributes - Manufacturer's Part Number
- 7228TC-KIT
- Product Attributes - Part Type
- Valve Springs
- Product Attributes - Product Line
- COMP Cams High Performance Valve Spring Kits
- Product Attributes - UPC
- 036584399377
- Product Attributes - Valve Spring Style
- Conical
- Product Attributes - Number of Springs Per Valve
- Single
- Product Attributes - Maximum Valve Lift (in.)
- 0.615 in.
- Product Attributes - Retainers Included
- Yes
- Product Attributes - Retainer Material
- Titanium
- Product Attributes - Outside Diameter of Outer Spring (in.)
- 1.030 in./1.286 in.
- Product Attributes - Coil Bind Height (in.)
- 1.125 in.
- Product Attributes - Damper Spring Included
- No
- Product Attributes - Spring Rate (lbs/in.)
- 440 lbs./in.
- Product Attributes - Inside Diameter of Outer Spring (in.)
- 0.622 in./0.918 in.
- Product Attributes - Locks Included
- Yes
- Product Attributes - Lock Material
- Steel
- Product Attributes - Lock Groove Quantity
- 3-groove
- Product Attributes - Lock Style
- 10 degree
- Product Attributes - Valve Stem Seals Included
- Yes
- Product Attributes - Valve Springs Coated
- No
- Product Attributes - Remanufactured
- No
- Product Attributes - Quantity
- Sold as a kit.
Reference Information
| Brand Name/s | Comp Cams |
|---|---|
| StreetFX SKU | cca7228TC-KIT |
| SFX Item ID | 4124793 |
| Supplier Item Code | 4124793 |
| Manufacturer SKU | 7228TC-KIT |
| Manufacturer UPC | 36584399377 |
| Alternative References | COM7228TC-KIT, CPC7228TC-KIT, .630in |
Brochures
Compatibility
09-'18 Dodge 5.7L HEMI
