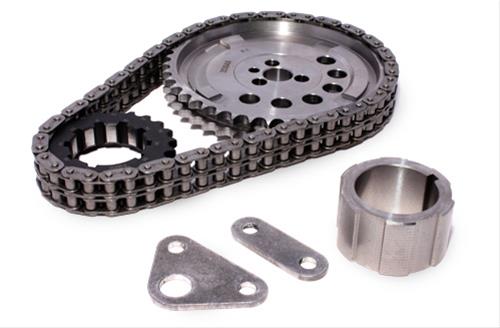

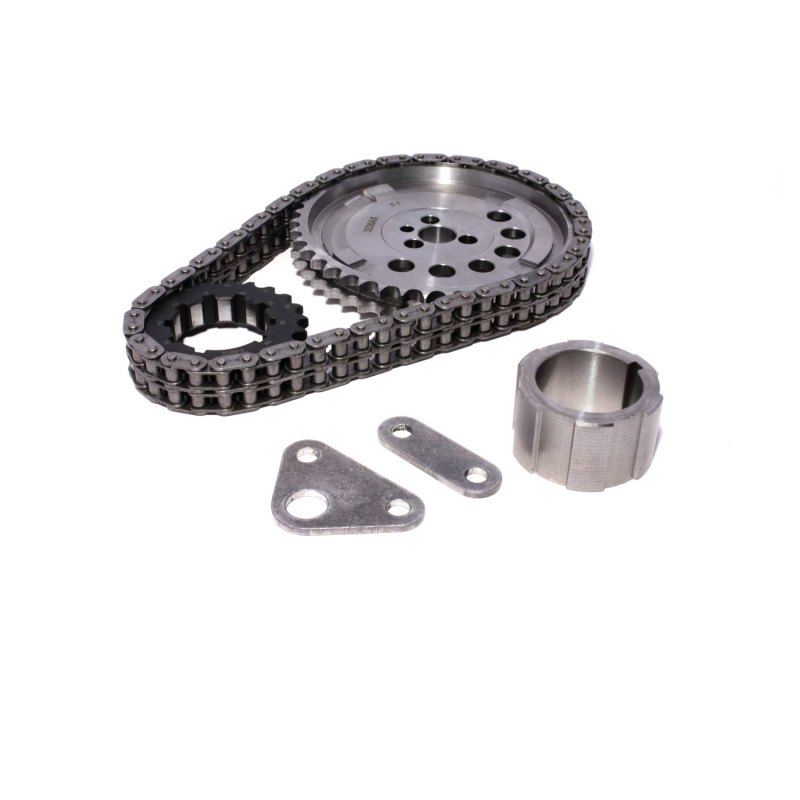

COMP Cams Timing Set LS-X Double 9Key 3
COMP Cams Timing Set LS-X Double 9Key 3
A$413.21
Available from MFR.
This item is available from the manufacturer's distribution centre. The dispatch timeframe shown is an estimate based on historical order processing and release times for this part. This item is not held in our own warehouse, and actual dispatch timing may vary depending on manufacturer workload and logistics at the time of ordering.
We accept
Description
Induction hardened and precision machined Steel billet Gears for bullet proof durabilityFeature 9 keyway crank sprocket for 2-degree incremental adjustability, 8-degree maximum advance/retardPre-stretched, heat-treated double Roller timing chain with heavy-duty large pin designIncludes Torrington Roller thrust bearing for reduced frictionIdeal for all street performance and Race Applications
Product Overview
*Keyway Adjustable Billet Timing Sets*
* Induction hardened and precision machined, steel billet gears for bullet proof durability
* Features 9 keyway crank sprocket for 2-degree incremental adjustability, 8-degree maximum advance/retard
* Pre-stretched, heat-treated double roller chain w/ heavy-duty large pin design
* Includes Torrington roller thrust bearing for reduced friction
* Ideal for all street performance and race applications
Product Details
| Description: | Keyway Adjustable .005" Under Billet Timing Set for 58X 3-Bolt, 4 Pole GM LS3 |
|---|---|
| Part Number: | cca7106-5 |
| Title: | TIMING SET, LS-X DOUBLE 9KEY 3 |
Part Type
Engine Timing Set
Specifications
- Product Attributes - Brand
- COMP Cams
- Product Attributes - Manufacturer's Part Number
- 7106-5
- Product Attributes - Part Type
- Timing Chain and Gear Sets
- Product Attributes - Product Line
- COMP Cams Keyway Adjustable Billet Timing Sets
- Product Attributes - UPC
- 036584233787
- Product Attributes - Timing Chain Included
- Yes
- Product Attributes - Timing Chain Style
- Double roller
- Product Attributes - Camshaft Gear Attachment
- 3-bolt
- Product Attributes - Maximum Advance/Retard at Camshaft
- 8 degree
- Product Attributes - Maximum Advance/Retard at Crankshaft
- 8 degree
- Product Attributes - Cam Gear Included
- Yes
- Product Attributes - Cam Gear Material
- Steel
- Product Attributes - Crank Gear Included
- Yes
- Product Attributes - Crank Gear Material
- Steel
- Product Attributes - VVT Gear Included
- No
- Product Attributes - Tensioner Included
- No
- Product Attributes - Thrust Bearing Included
- Yes
- Product Attributes - Bolts/Studs Included
- No
- Product Attributes - Gaskets Included
- No
- Product Attributes - Offset Bushings Included
- No
- Product Attributes - Quantity
- Sold as a kit.
- Product Attributes - Notes
- 4X reluctor. When installing a double roller timing chain and gears in an LS engine, the oil pump is spaced out from the block for clearance. On most applications, this will create a clearance issue between the timing cover and oil pump. Test fit and grind as needed for clearance, before final assembly.
Reference Information
| Brand Name/s | Comp Cams |
|---|---|
| StreetFX SKU | cca7106-5 |
| SFX Item ID | 4121085 |
| Supplier Item Code | 4121085 |
| Manufacturer SKU | 7106-5 |
| Manufacturer UPC | 36584233787 |
| Alternative References | ls1, ls2, ls3, ls4, ls6, ls7 |
