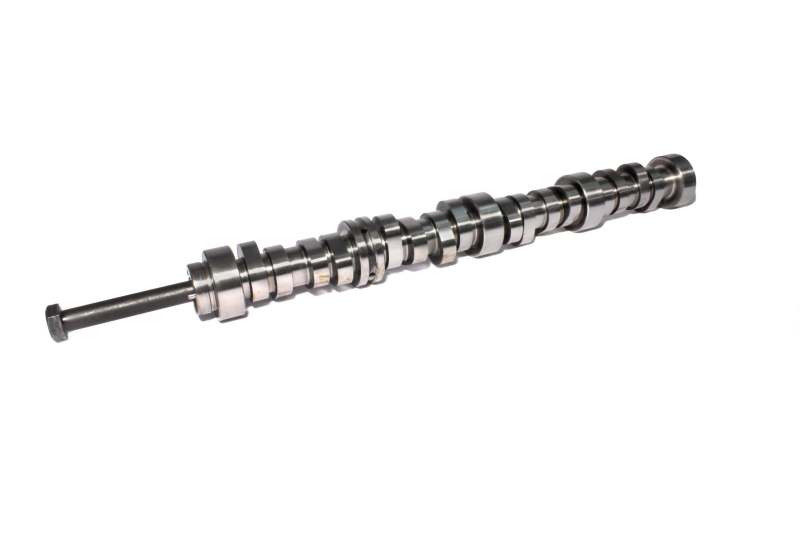

COMP Cams Camshaft GM LS 994 VVT/AFM 26
COMP Cams Camshaft GM LS 994 VVT/AFM 26
A$962.97
Special Order. Contact for ETA.
This item is out of stock in our warehouse and partner distribution centres. In some cases, this may be due to not having live inventory feeds available for all suppliers. Please contact us before ordering if you need to meet a specific deadline.
We accept
Description
Best choice for vehicles requiring strong off idle torque, while improving power at all RPM. Great for trucks & heavy cars.
Product Overview
*XFI Camshafts*
* Newest and quickest lobe profiles in the Xtreme family; provide a terrific increase in performance
* Tuned for use in EFI applications where extra air flow signal through the carburetor is not required (feature wider lobe separation without loss of responsiveness)
* Work well with aftermarket cylinder heads & feature high lift
Product Details
| Amazon ASIN: | B0066STV3M |
|---|---|
| Assembly Lubricant Included: | No |
| C.A.R.B. E.O. Number: | N/A |
| C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for On-Road Vehicles?: | No |
| C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: | Yes, but must be a race/competition only vehicle. |
| C.A.R.B. Exemption Reason: | N/A |
| California Proposition 65: | WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov |
| Camshaft Gear Attachment: | 1-Bolt |
| Camshaft Material: | Billet Steel |
| Camshaft Series: | XFI AFM |
| Description: | XFI AFM 216/228 D, 214/226 N Hydraulic Roller Cam for GM GEN IV |
| Engine Family: | GM LS GEN IV Single-Bolt w/ VVT (12585994) and w/ AFM 8 Cylinder (2007-2008) |
| Exhaust Duration @ .050 in.: | 228 |
| Exhaust Duration: | 290 |
| Exhaust Valve Lift(in): | 0.5 |
| Grind Number: | 266PHR14 |
| Intake Duration @ .050 in.: | 216 |
| Intake Duration: | 278 |
| Intake Valve Lift(in): | 0.500 |
| Lifter Type: | Hydraulic Roller |
| Lifters Included: | No |
| Lobe Separation: | 114 |
| Part Number: | cca656-421-13 |
| RPM Range: | 1600-6500 |
| Title: | XFI AFM 216/228 D, 214/226 N Hydraulic Roller Cam for GM GEN IV |
| Usage: | Street/Performance |
| Valve Springs Required: | Yes |
Part Type
Engine Camshaft
Specifications
- Amazon ASIN:
- B0066STV3M
- Assembly Lubricant Included:
- No
- C.A.R.B. E.O. Number:
- N/A
- C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?:
- Yes, but must meet tailpipe emission standards for year of vehicle.
- C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?:
- Yes, but must meet tailpipe emission standards for year of vehicle.
- C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?:
- Yes, but must meet tailpipe emission standards for year of vehicle.
- C.A.R.B. Exempt for On-Road Vehicles?:
- No
- C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?:
- Yes, but must be a race/competition only vehicle.
- C.A.R.B. Exemption Reason:
- N/A
- California Proposition 65:
- WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov
- Camshaft Gear Attachment:
- 1-Bolt
- Camshaft Material:
- Billet Steel
- Camshaft Series:
- XFI AFM
- Description:
- XFI AFM 216/228 D, 214/226 N Hydraulic Roller Cam for GM GEN IV
- Engine Family:
- GM LS GEN IV Single-Bolt w/ VVT (12585994) and w/ AFM 8 Cylinder (2007-2008)
- Exhaust Duration @ .050 in.:
- 228
- Exhaust Duration:
- 290
- Exhaust Valve Lift(in):
- 0.5
- Grind Number:
- 266PHR14
- Intake Duration @ .050 in.:
- 216
- Intake Duration:
- 278
- Intake Valve Lift(in):
- 0.500
- Lifter Type:
- Hydraulic Roller
- Lifters Included:
- No
- Lobe Separation:
- 114
- Part Number:
- cca656-421-13
- RPM Range:
- 1600-6500
- Title:
- XFI AFM 216/228 D, 214/226 N Hydraulic Roller Cam for GM GEN IV
- Usage:
- Street/Performance
- Valve Springs Required:
- Yes
Reference Information
| Brand Name/s | Comp Cams |
|---|---|
| StreetFX SKU | cca656-421-13 |
| SFX Item ID | 4121030 |
| Supplier Item Code | 4121030 |
| Manufacturer SKU | 656-421-13 |
| Manufacturer UPC | 36584237853 |
| Alternative References | ls1, ls2, ls3, ls4, ls6, ls7 |
