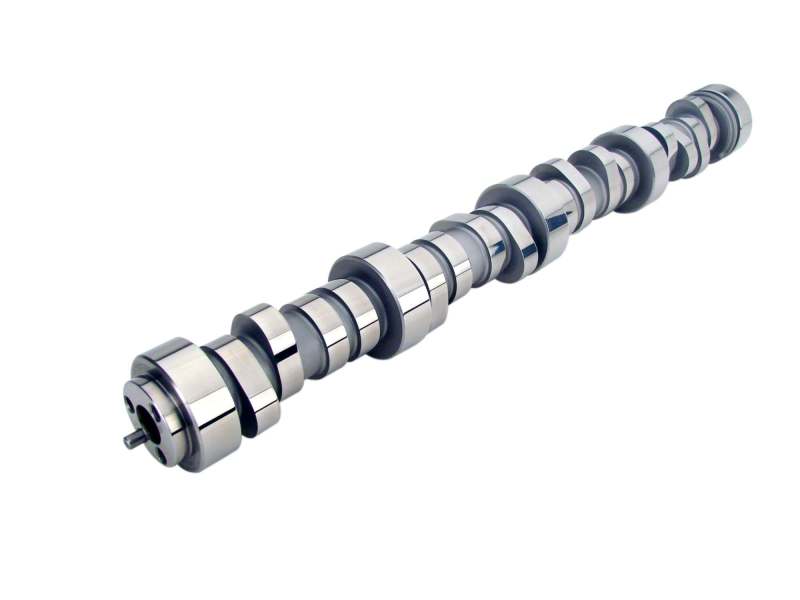

COMP Cams Camshaft Chevrolet/GM LS1 & LS6 FSL Series
COMP Cams Camshaft Chevrolet/GM LS1 & LS6 FSL Series
Sale ends in Calculating...
A$855.77 A$1,430.40
Available from MFR.
This item is available from the manufacturer's distribution centre. The dispatch timeframe shown is an estimate based on historical order processing and release times for this part. This item is not held in our own warehouse, and actual dispatch timing may vary depending on manufacturer workload and logistics at the time of ordering.
We accept
Description
50 State Legal grind for the GM Gen III LS1/LS2/LS3 3 bolt engines. Bolt in with stock components and tune, can produce 30+ HP increase in peak power. Carb EO: #D-279-13.
Product Overview
GM, 4.8, 5.3, 5.7, 6.0, 6.2, 7.0, LS1, LS2, LS3, LS4, LS6, LS7, LSA, LS9, Camaro, Silverado, LS Swap, 383, 350, SBC, Chevelle, Yukon, L92, LM7, 325, GMC, Trailblazer, Corvette, GM LS, GEN III, GEN 3, GEN IV, GEN 4, DOD, AFM, VVT, BTR, Texas Speed
Product Details
| Advertised Exhaust Duration: | 270 |
|---|---|
| Advertised Intake Duration: | 270 |
| Amazon ASIN: | N/A |
| Assembly Lubricant Included: | No |
| Basic Operating RPM Range: | 1,800-6,500 |
| C.A.R.B. E.O. Number: | N/A |
| C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for On-Road Vehicles?: | Yes |
| C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: | Yes, but must be a race/competition only vehicle. |
| C.A.R.B. Exemption Reason: | No impact on pollution output of vehicle. |
| California Proposition 65: | WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov |
| Cam Type: | Hydraulic Roller |
| Camshaft Gear Attachment: | 3-Bolt |
| Camshaft Material: | Billet Steel |
| Camshaft Series: | FSL |
| Description: | FSL 210/218 Hydraulic Roller Cam for GM LS GEN III/IV |
| Engine Family: | GM LS GEN III/IV 3-Bolt 8 Cylinder (1997-2015) |
| Exhaust Duration at .050 inch Lift: | 218 |
| Exhaust Valve Lift: | 0.541 |
| Grind Number: | LS3LX270 |
| Intake Duration at .050 Inch Lift: | 210 |
| Intake Valve Lift: | 0.57 |
| Lifter Type: | Hydraulic Roller |
| Lifters Included: | No |
| Lobe Separation: | 118 |
| Part Number: | cca54-103-11 |
| Title: | FSL 210/218 Hydraulic Roller Cam for GM LS GEN III/IV |
| Valve Springs Required: | No |
Application Summary
Fits 4.8, 5.3, 5.7, 6.0, 6.2 and 7.0 Liter LS1, LS2, LS3, LS4, LS6, LS7 plus SUV and Truck Engines (Grinds are specific to displacement and cylinder head design)
Part Type
Engine Camshaft
Specifications
- Product Attributes - Brand
- COMP Cams
- Product Attributes - Manufacturer's Part Number
- 54-103-11
- Product Attributes - Part Type
- Camshafts
- Product Attributes - Product Line
- COMP Cams FSL Hydraulic Roller Camshafts
- Product Attributes - UPC
- 36584373148
- Product Attributes - Cam Style
- Hydraulic roller, OE roller
- Product Attributes - Camshaft Use
- Street/Strip
- Product Attributes - Basic Operating RPM Range
- 1,800-6,500
- Product Attributes - Intake Duration at 050 inch Lift
- 210
- Product Attributes - Exhaust Duration at 050 inch Lift
- 218
- Product Attributes - Duration at 050 inch Lift
- 210 int./218 exh.
- Product Attributes - Advertised Intake Duration
- 270
- Product Attributes - Advertised Exhaust Duration
- 270
- Product Attributes - Advertised Duration
- 270 int./270 exh.
- Product Attributes - Intake Valve Lift with Factory Rocker Arm Ratio
- 0.570 in.
- Product Attributes - Exhaust Valve Lift with Factory Rocker Arm Ratio
- 0.541 in.
- Product Attributes - Valve Lift with Factory Rocker Arm Ratio
- 0.570 int./0.541 exh.
- Product Attributes - Lobe Separation (degrees)
- 118
- Product Attributes - Camshaft Gear Attachment
- 3-bolt
- Product Attributes - Remanufactured
- No
- Product Attributes - Computer-Controlled Compatible
- Yes
- Product Attributes - Grind Number
- LS3LX270
- Product Attributes - Valve Springs Required
- No
- Product Attributes - Quantity
- Sold individually.
- Product Attributes - Special Attention
- For 3-bolt camshaft replacement.
- Product Attributes - CARB EO Number(s)
- D-279-13
- Product Attributes - Emissions
- California EO Approved
Reference Information
| Brand Name/s | Comp Cams |
|---|---|
| StreetFX SKU | cca54-103-11 |
| SFX Item ID | 4118029 |
| Supplier Item Code | 4118029 |
| Manufacturer SKU | 54-103-11 |
| Manufacturer UPC | 36584373148 |
| Alternative References | ls1, ls2, ls3, ls4, ls6, ls7 |
Brochures
Compatibility
Fits 4.8, 5.3, 5.7, 6.0, 6.2 and 7.0 Liter LS1, LS2, LS3, LS4, LS6, LS7 plus SUV and Truck Engines (Grinds are specific to displacement and cylinder head design)
