COMP Cams Valve Seals 11/32in PTFE W/.50
COMP Cams Valve Seals 11/32in PTFE W/.50
A$58.41
Special Order. Contact for ETA.
This item is out of stock in our warehouse and partner distribution centres. In some cases, this may be due to not having live inventory feeds available for all suppliers. Please contact us before ordering if you need to meet a specific deadline.
We accept
Description
COMP Cams offers a complete line of valve stem Seals, from the stock GM "O-Ring" to the positive-stop PTFE Seal. These Seals are a must to keep unwanted oil from entering the combustion chamber through the clearance in the valve guides. The "O-Ring" Seals use the standard retainer and oil splash shield. The umbrella Seal is normally used when a larger-than-stock diameter spring is used, in the case of a double spring, the positive-stop PTFE Seal is used. We also have a smaller diameter Viton Seal available for triple spring Applications.
Product Overview
COMP Cams offers a complete line of valve stem oil seals, from the stock GM o-ring to the positive-stop PTFE seal. These seals are a must to keep unwanted oil from entering the combustion chamber through the clearance in the valve guides. The o-ring seals use the standard retainer and oil splash shield. The umbrella seal is normally used when a larger than-stock diameter spring is used, and in the case of a double spring, the positive-stop PTFE seal is used. Smaller diameter Viton seals are also available for triple spring applications. Both the o-ring and the umbrella seals require no machining, but when using the PTFE seal it is necessary to disassemble the heads and machine the top of the guide with a special cutter, which can also be found on this page.
Product Details
| Amazon ASIN: | B002EE6I38 |
|---|---|
| C.A.R.B. E.O. Number: | N/A |
| C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for On-Road Vehicles?: | Yes |
| C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: | Yes, but must be a race/competition only vehicle. |
| C.A.R.B. Exemption Reason: | No impact on pollution output of vehicle. |
| California Proposition 65: | WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov |

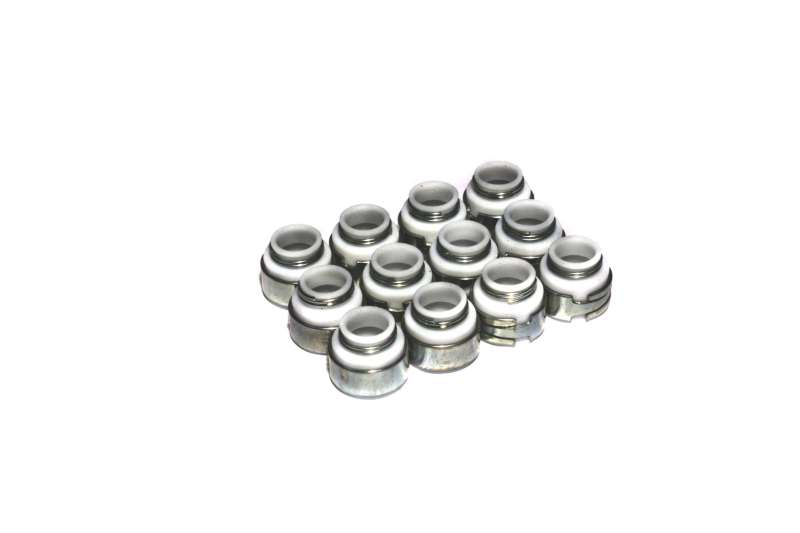

| Description: | Set of 12 PTFE Valve Seals for .500" Guide Size, 11/32" Valve Stem |
| Guide Size: | .500" |
| Part Number: | cca510-12 |
| Seal Outer Diameter: | 0.6 |
| Title: | Set of 12 PTFE Valve Seals for .500" Guide Size, 11/32" Valve Stem |
| Valve Guide Outer Diameter: | 0.5 |
| Valve Seal Type: | Positive Stop PTFE |
| Valve Size: | 11/32" / .600" |
| Valve Stem Outer Diameter: | 11/32 |
Application Summary
Engines w/ 0.500" OD Valve Guides and 11/32" Valve Stems
Part Type
Engine Valve Stem Oil Seal Set
Specifications
- Product Attributes - Brand
- COMP Cams
- Product Attributes - Manufacturer's Part Number
- 510-12
- Product Attributes - Part Type
- Engine Valve Stem Oil Seals
- Product Attributes - Product Line
- COMP Cams Valve Seals
- Product Attributes - UPC
- 036584084853
- Product Attributes - Valve Stem Diameter (in.)
- 0.344 in.
- Product Attributes - Valve Stem Diameter (mm)
- 8.74mm
- Product Attributes - Valve Stem Seal Type
- Positive stop
- Product Attributes - Valve Stem Seal Material
- PTFE
- Product Attributes - Machine Work Required
- Yes
- Product Attributes - Valve Guide Diameter (in.)
- 0.500 in.
- Product Attributes - Valve Stem Seal Outside Diameter (in.)
- 0.600 in.
- Product Attributes - Quantity
- Sold as a set of 12.
- Product Attributes - Notes
- Requires machining the top of the valve guide with a special .500 in. diameter cutter.
Reference Information
| Brand Name/s | Comp Cams |
|---|---|
| StreetFX SKU | cca510-12 |
| SFX Item ID | 4120535 |
| Supplier Item Code | 4120535 |
| Manufacturer SKU | 510-12 |
| Manufacturer UPC | 36584084853 |
| Alternative References | 11/32in, W/.50 |
Brochures
Compatibility
Engines w/ 0.500" OD Valve Guides and 11/32" Valve Stems
