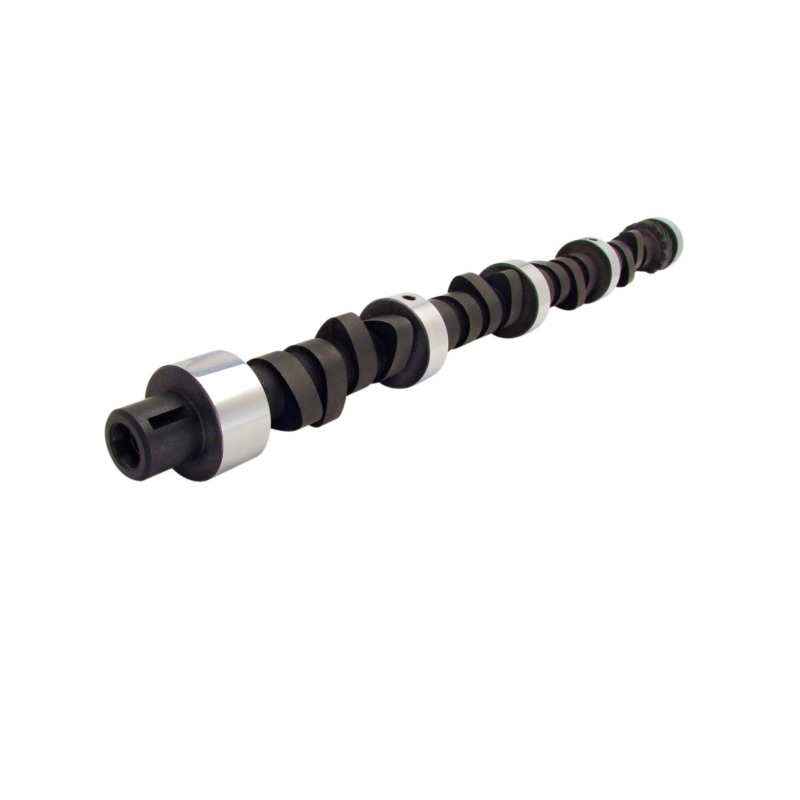

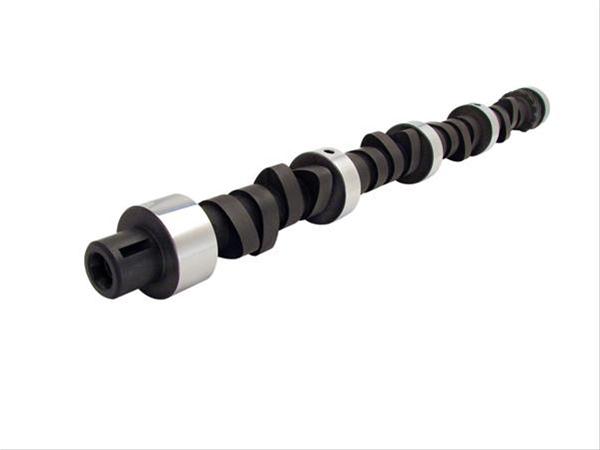

COMP Cams Camshaft P8 Replacement For 9
COMP Cams Camshaft P8 Replacement For 9
A$681.40
Available from MFR.
This item is available from the manufacturer's distribution centre. The dispatch timeframe shown is an estimate based on historical order processing and release times for this part. This item is not held in our own warehouse, and actual dispatch timing may vary depending on manufacturer workload and logistics at the time of ordering.
We accept
Description
Hydraulic: Factory ID #9794041 for,400 c.i., 1968 RAM AIR IV, factory 366 HP400 c.i., 1969, factory 345/370 HP455 c.i., 1970, factory 370 HP.
Product Overview
*Factory Muscle Camshafts*
* Reproduction of factory original muscle car camshaft
* Maintain efficiency and drivability of engines
* New computer controlled aided design avoids previous factory design compromises
* Tailored to work with the high compression engine of the 1960s and 70s to produce rough idle
Product Details
| Advertised Exhaust Duration: | 320 |
|---|---|
| Advertised Intake Duration: | 308 |
| Amazon ASIN: | B001R9DQYU |
| Assembly Lubricant Included: | Yes |
| Basic Operating RPM Range: | 1,800-5,800 |
| C.A.R.B. E.O. Number: | N/A |
| C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for On-Road Vehicles?: | No |
| C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: | Yes, but must be a race/competition only vehicle. |
| C.A.R.B. Exemption Reason: | N/A |
| California Proposition 65: | WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov |
| Cam Type: | Hydraulic Flat Tappet |
| Cam and Lifter Kit Upgrade: | CL51-116-3 |
| Camshaft Gear Attachment: | 1-Bolt |
| Camshaft Material: | Cast Iron |
| Camshaft Series: | Factory Muscle |
| Description: | Factory Muscle 231/240 Hydraulic Flat Cam for Pontiac 265-455 |
| Engine Family: | Pontiac 265-455 C.I. 8 Cylinder (1955-1981) |
| Exhaust Duration @ .050 in.: | 240 |
| Exhaust Duration at .050 inch Lift: | 240 |
| Exhaust Duration: | 320 |
| Exhaust Valve Lift(in): | 0.516 |
| Exhaust Valve Lift: | 0.516 |
| Grind Number: | 041H |
| Intake Duration @ .050 in.: | 230 |
| Intake Duration at .050 Inch Lift: | 230 |
| Intake Duration: | 308 |
| Intake Valve Lift(in): | 0.516 |
| Intake Valve Lift: | 0.516 |
| Lifter Type: | Hydraulic Flat Tappet |
| Lifters Included: | No |
| Lobe Separation: | 114 |
| Part Number: | cca51-116-3 |
| RPM Range: | 1000-7000 |
| Title: | Factory Muscle 231/240 Hydraulic Flat Cam for Pontiac 265-455 |
| Usage: | OEM |
| Valve Springs Required: | Yes |
Application Summary
Pontiac 265-455 V8
Part Type
Engine Camshaft
Specifications
- Product Attributes - Brand
- COMP Cams
- Product Attributes - Manufacturer's Part Number
- 51-116-3
- Product Attributes - Part Type
- Camshafts
- Product Attributes - Product Line
- COMP Cams Factory Muscle Camshafts
- Product Attributes - UPC
- 036584490098
- Product Attributes - Cam Style
- Hydraulic flat tappet
- Product Attributes - Camshaft Use
- Stock Replacement
- Product Attributes - Basic Operating RPM Range
- 1,800-5,800
- Product Attributes - Intake Duration at 050 inch Lift
- 231
- Product Attributes - Exhaust Duration at 050 inch Lift
- 240
- Product Attributes - Duration at 050 inch Lift
- 231 int./240 exh.
- Product Attributes - Advertised Intake Duration
- 292
- Product Attributes - Advertised Exhaust Duration
- 303
- Product Attributes - Advertised Duration
- 292 int./303 exh.
- Product Attributes - Intake Valve Lift with Factory Rocker Arm Ratio
- 0.516 in.
- Product Attributes - Exhaust Valve Lift with Factory Rocker Arm Ratio
- 0.516 in.
- Product Attributes - Valve Lift with Factory Rocker Arm Ratio
- 0.516 int./0.516 exh.
- Product Attributes - Lobe Separation (degrees)
- 114
- Product Attributes - Remanufactured
- No
- Product Attributes - Computer-Controlled Compatible
- No
- Product Attributes - Grind Number
- 041H
- Product Attributes - Valve Springs Required
- Yes
- Product Attributes - Quantity
- Sold individually.
- Product Attributes - Notes
- Reproduced factory ID number 9794041 for 400 cu.in., 1968 Ram Air IV. Factory 366 H.P. 400 cu. in..1969 factory 345/370 H.P., 455 cu.in., and 1970 factory 370 H.P.
Reference Information
| Brand Name/s | Comp Cams |
|---|---|
| StreetFX SKU | cca51-116-3 |
| SFX Item ID | 4120540 |
| Supplier Item Code | 4120540 |
| Manufacturer SKU | 51-116-3 |
| Manufacturer UPC | 36584490098 |
| Alternative References | sd455; |
Brochures
Compatibility
Pontiac 265-455 V8
