COMP Cams Guide Plates CB 3/8in Raised
COMP Cams Guide Plates CB 3/8in Raised
A$186.97
Available from MFR.
This item is available from the manufacturer's distribution centre. The dispatch timeframe shown is an estimate based on historical order processing and release times for this part. This item is not held in our own warehouse, and actual dispatch timing may vary depending on manufacturer workload and logistics at the time of ordering.
We accept
Description

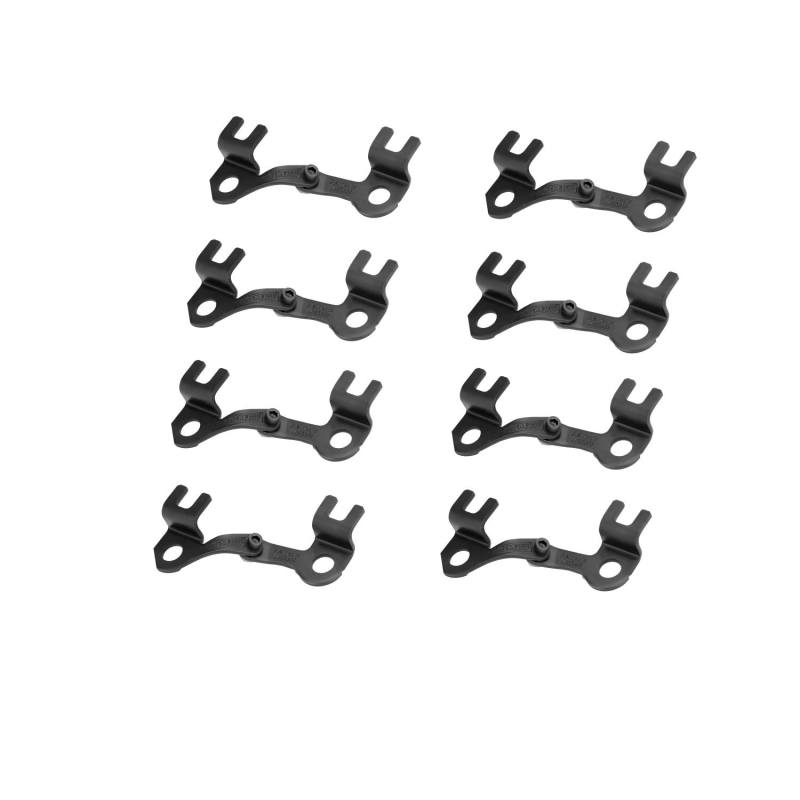

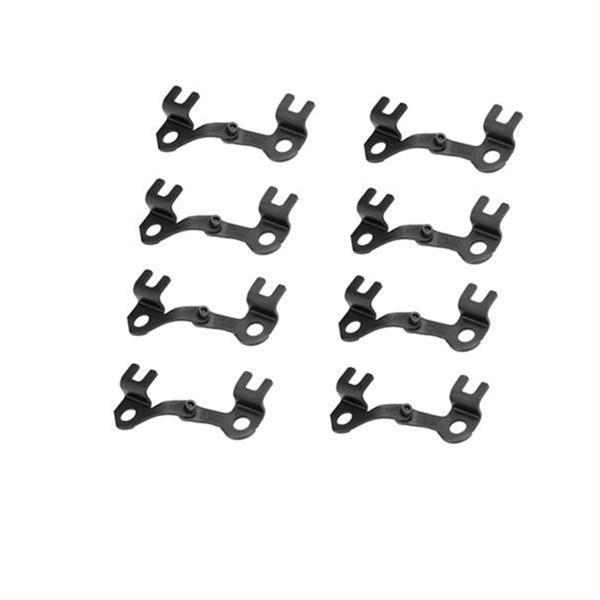

The innovative new guide plate design from COMP Cams compensates for the Chevrolet Big Block's splayed intake and exhaust valves, which are tilted in two axis. Perfect for use with aftermarket cylinder heads, Rocker arms and Pushrods, these adjustable guide plates eliminate misaligned Rocker arms and valve stem tips. A single fastener quickly locks the two halves of the guide plate together. And, if valve train parts are swapped, the guide plates can be easily readjusted to fit the new setup. They are available in sets of eight for 3/8" diameter pushrods. Precision die-stamped from premium heat-treated Steel material, the COMP Cams Two-Piece Adjustable Guide Plates are the quickest and most accurate way to align valve train components in Big Block Chevy engines. These performance guide plates work with all RHS® cylinder heads, as well as other popular performance aftermarket cylinder heads that feature relocated intake ports.
Product Overview
*One-Piece Guide Plates*
* Designed using stereo lithography techniques for accurate fit; hardened and black oxide finished
* Feature exact stud placement and rounded contact points
* Necessary for high lift/spring pressure environments of performance engines
*Two-Piece Adjustable Guide Plates*
* Available for Small and Big Block Chevy and Small Block Ford applications
* Designed for use on cylinder heads with relocated intake ports
* Big Block Chevy application designed for use with RHS or other aftermarket heads with relocated intake ports
* Able to be welded after final adjustment (SBC and SBF only); BBC is bolt-together design
* Contoured & clearanced for head bolts
Product Details
| Adjustable: | Yes |
|---|---|
| Amazon ASIN: | N/A |
| C.A.R.B. E.O. Number: | N/A |
| C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for On-Road Vehicles?: | Yes |
| C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: | Yes, but must be a race/competition only vehicle. |
| C.A.R.B. Exemption Reason: | No impact on pollution output of vehicle. |
| California Proposition 65: | WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov |
| Description: | Raised 2 Piece Adjustable Guide Plate Set for BBC w/ 3/8" Pushrod 7/16" Stud |
| Engine Family: | Chevrolet 396-454 Big Block |
| Part Number: | cca4811-8 |
| Push Rod Size: | 3/8" |
| Pushrod Diameter: | 3/8 |
| Stud Diameter: | 7/16" |
| Title: | Raised 2 Piece Adjustable Guide Plate Set for BBC w/ 3/8" Pushrod 7/16" Stud |
| Type: | Raised |
Part Type
Engine Push Rod Guide Plate
Specifications
- Product Attributes - Brand
- COMP Cams
- Product Attributes - Manufacturer's Part Number
- 4811-8
- Product Attributes - Part Type
- Guideplates
- Product Attributes - Product Line
- COMP Cams Pushrod Guideplates
- Product Attributes - UPC
- 036584220756
- Product Attributes - Guideplate Pushrod Size
- 3/8 in.
- Product Attributes - Guideplate Style
- Raised
- Product Attributes - Guideplate Material
- Steel
- Product Attributes - Guideplate Color
- Black oxide
- Product Attributes - Stud Size
- 7/16 in.
- Product Attributes - Machine Work Required
- No
- Product Attributes - Quantity
- Sold as a set of 8.
- Product Attributes - Notes
- 2-piece adjustable guideplates. Requires 7/16 in. stud base thread (standard on RHS and other aftermarket heads)
Reference Information
| Brand Name/s | Comp Cams |
|---|---|
| StreetFX SKU | cca4811-8 |
| SFX Item ID | 4120396 |
| Supplier Item Code | 4120396 |
| Manufacturer SKU | 4811-8 |
| Manufacturer UPC | 36584220756 |
| Alternative References | COM4811-8, 3/8in |
