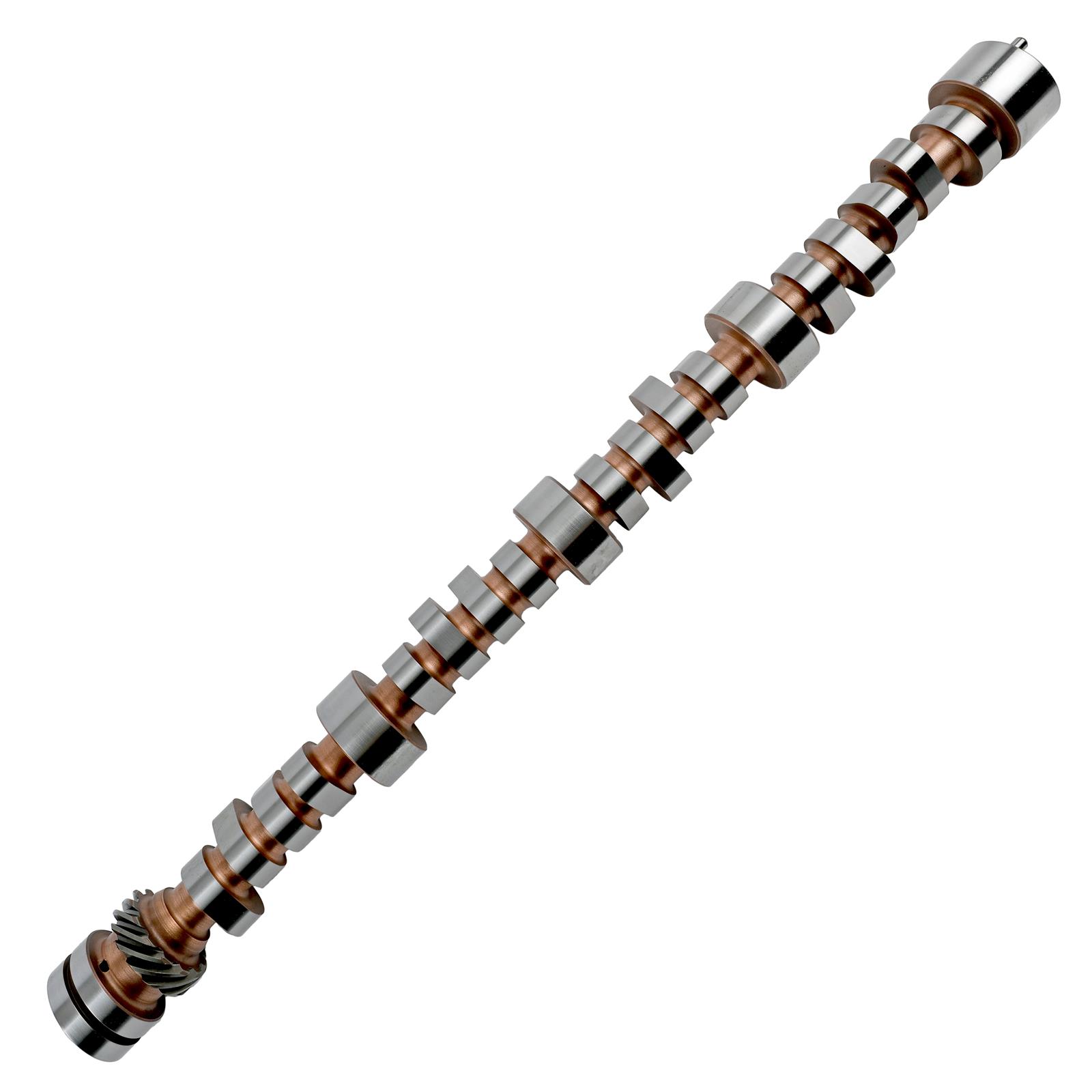

COMP Cams Camshaft C409 XE272HR10
COMP Cams Camshaft C409 XE272HR10
A$1,322.08
Limited Availability from MFR
Limited stock available from the manufacturer's distribution centre. The dispatch timeframe shown is an estimate based on historical orders of this part. This item is not held in our own warehouse, and availability and release timing may vary depending on manufacturer stock movements and processing at the time of ordering.
We accept
Description
Xtreme Energy 218/224 Hydraulic Roller Cam
Product Overview
*Xtreme Energy Camshafts*
* Quicker opening lobe profiles deliver increased responsiveness & more area under the lift curve
* More vacuum allows an increase in duration for improved performance and assists power brakes
* Excellent performance in street carbureted applications
* Best performance with aftermarket intake manifolds, headers, lower gear ratios, etc.
Product Details
| Amazon ASIN: | N/A |
|---|---|
| Assembly Lubricant Included: | No |
| C.A.R.B. E.O. Number: | N/A |
| C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for On-Road Vehicles?: | No |
| C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: | Yes, but must be a race/competition only vehicle. |
| C.A.R.B. Exemption Reason: | N/A |
| California Proposition 65: | WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov |
| Camshaft Gear Attachment: | 3-Bolt |
| Camshaft Material: | Billet Steel |
| Camshaft Series: | Xtreme Energy |
| Description: | Xtreme Energy 218/224 Hydraulic Roller Cam for Chevrolet 348-409 |
| Engine Family: | Chevrolet 348-409 c.i. 8 Cylinder (1958-1965) |
| Exhaust Duration @ .050 in.: | 224 |
| Exhaust Duration: | 278 |
| Exhaust Valve Lift(in): | 0.55 |
| Grind Number: | XE272HR-10 |
| Intake Duration @ .050 in.: | 218 |
| Intake Duration: | 272 |
| Intake Valve Lift(in): | 0.543 |
| Lifter Type: | Hydraulic Roller Retrofit |
| Lifters Included: | No |
| Lobe Separation: | 110 |
| Part Number: | cca48-801-11 |
| RPM Range: | 1400-5800 |
| Title: | Xtreme Energy 218/224 Hydraulic Roller Cam for Chevrolet 348-409 |
| Usage: | Street/Performance |
| Valve Springs Required: | Yes |
Part Type
Engine Camshaft
Specifications
- Product Attributes - Brand
- COMP Cams
- Product Attributes - Manufacturer's Part Number
- 48-801-11
- Product Attributes - Part Type
- Camshafts
- Product Attributes - Product Line
- COMP Cams Xtreme Energy Camshafts
- Product Attributes - UPC
- 036584267843
- Product Attributes - Cam Style
- Hydraulic roller, Retro-fit
- Product Attributes - Camshaft Use
- Street
- Product Attributes - Camshaft Manufacturers Description
- Great for Street Rod. Excellent mid-range and passing power. Aftermarket intake and headers will yield best results. 9:1 compression. Needs a 2000 stall. Mildly rough idle.
- Product Attributes - Basic Operating RPM Range
- 1,400-5,800
- Product Attributes - Intake Duration at 050 inch Lift
- 218
- Product Attributes - Exhaust Duration at 050 inch Lift
- 224
- Product Attributes - Duration at 050 inch Lift
- 218 int./224 exh.
- Product Attributes - Advertised Intake Duration
- 272
- Product Attributes - Advertised Exhaust Duration
- 278
- Product Attributes - Advertised Duration
- 272 int./278 exh.
- Product Attributes - Intake Valve Lift with Factory Rocker Arm Ratio
- 0.543 in.
- Product Attributes - Exhaust Valve Lift with Factory Rocker Arm Ratio
- 0.550 in.
- Product Attributes - Valve Lift with Factory Rocker Arm Ratio
- 0.543 int./0.550 exh.
- Product Attributes - Lobe Separation (degrees)
- 110
- Product Attributes - Camshaft Gear Attachment
- 3-bolt
- Product Attributes - Remanufactured
- No
- Product Attributes - Computer-Controlled Compatible
- No
- Product Attributes - Grind Number
- XE272HR10
- Product Attributes - Valve Springs Required
- Yes
- Product Attributes - Quantity
- Sold individually.
Reference Information
| Brand Name/s | Comp Cams |
|---|---|
| StreetFX SKU | cca48-801-11 |
| SFX Item ID | 4120456 |
| Supplier Item Code | 4120456 |
| Manufacturer SKU | 48-801-11 |
| Manufacturer UPC | 36584267843 |
| Alternative References | C409, XE272HR10 |
