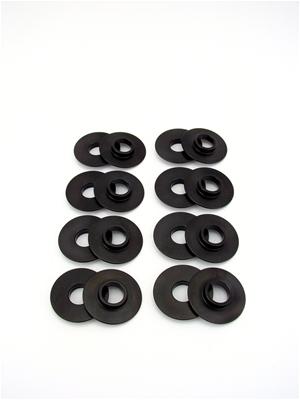

COMP Cams Spring Seat Cups Eb 1.690 - Set of 100
COMP Cams Spring Seat Cups Eb 1.690 - Set of 100
A$1,300.47
Last Available from MFR.
LAST ONE AVAILABLE from the manufacturer's distribution centre. Once sold, this item may not be immediately available again. The dispatch timeframe shown is an estimate based on historical orders for this part and is dependent on the manufacturer releasing the final available unit.
We accept
Description
The older style standard shims will not hold up to the extreme spring pressures and high RPM found in racing engines being built today. COMP Cams offers a simple but effective solution to this problem - a thin, hardened steel alloy seat which will not only protect the head and shim but also locate and hold the spring in place. Previously, this part has been available only in a cup form with the retaining portion being on the outside of the part. This required that the head be machined a great deal to accept this cup so COMP now offers an I.D. locator with the locating shoulder on the inside, as well as the spring cup. Many sizes are available to locate from the inside or outside diameter.
Product Overview
The older style standard shims will not hold up to the extreme spring pressures and high RPM found in racing engines being built today. COMP Cams offers a simple but effective solution to this problem − a thin, hardened steel alloy seat which will not only protect the head and shim but also locate and hold the spring in place. Previously, this part has been available only in a cup form with the retaining portion being on the outside of the part. This required that the head be machined a great deal to accept this cup so COMP now offers an I.D. locator with the locating shoulder on the inside, as well as the spring cup. Many sizes are available to locate from the inside or outside diameter.
Product Details
| Description: | OD Spring Locator Set of 100 - 1.780" OD, .640" ID, .060" Thick |
|---|---|
| Locator ID: | .640" |
| Locator OD: | 1.780" |
| Locator Thickness: | .060" |
| Part Number: | cca4708-100 |
| Spring ID: | N/A |
| Spring OD: | 1.690" |
| Title: | OD Spring Locator Set of 100 - 1.780" OD, .640" ID, .060" Thick |
Part Type
Engine Valve Spring Seat
Specifications
- Product Attributes - Brand
- COMP Cams
- Product Attributes - Manufacturer's Part Number
- 4708-100
- Product Attributes - Part Type
- Valve Spring Locators
- Product Attributes - Product Line
- COMP Cams Valve Spring Locators
- Product Attributes - UPC
- 036584128724
- Product Attributes - Locating Shoulder Type
- Outside
- Product Attributes - Outside Diameter of Outer Spring (in.)
- 1.690 in.
- Product Attributes - Locator Thickness (in.)
- 0.060 in.
- Product Attributes - Outside Diameter (in.)
- 1.780
- Product Attributes - Inside Diameter (in.)
- 0.640
- Product Attributes - Locator Material
- Steel
- Product Attributes - Quantity
- Sold as a set of 100.
Reference Information
| Brand Name/s | Comp Cams |
|---|---|
| StreetFX SKU | cca4708-100 |
| SFX Item ID | 4120208 |
| Supplier Item Code | 4120208 |
| Manufacturer SKU | 4708-100 |
| Manufacturer UPC | 36584128724 |
