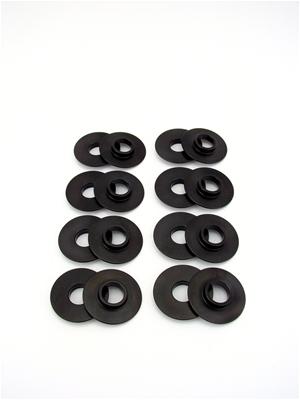

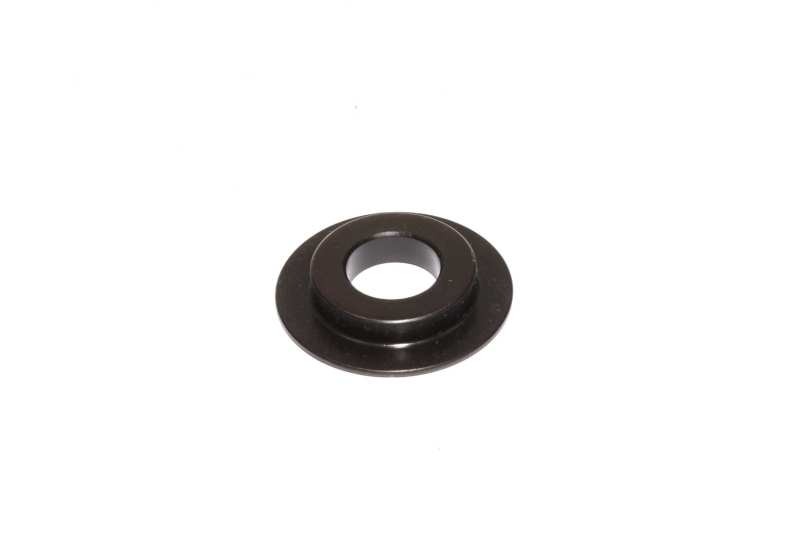

COMP Cams Spring Seat For 26918
COMP Cams Spring Seat For 26918
A$20.99
Special Order. Contact for ETA.
This item is out of stock in our warehouse and partner distribution centres. In some cases, this may be due to not having live inventory feeds available for all suppliers. Please contact us before ordering if you need to meet a specific deadline.
We accept
Description
The old standard shims will not hold up to the extreme spring pressures and high RPM in today's race engines. COMP Cams offers a simple but effective solution to this problem. These Valve Spring Locators provide a thin, hardened Steel alloy seat that will not only protect the head and shim, but also locate and hold the spring in place. Previously, this part has been available only in a cup form with the retaining portion being on the outside of the part. This required that the head be machined a great deal to accept this cup so COMP now offers an ID locator with the locating shoulder on the inside, as well as the spring cup.
Product Overview
The older style standard shims will not hold up to the extreme spring pressures and high RPM found in racing engines being built today. COMP Cams offers a simple but effective solution to this problem − a thin, hardened steel alloy seat which will not only protect the head and shim but also locate and hold the spring in place. Previously, this part has been available only in a cup form with the retaining portion being on the outside of the part. This required that the head be machined a great deal to accept this cup so COMP now offers an I.D. locator with the locating shoulder on the inside, as well as the spring cup. Many sizes are available to locate from the inside or outside diameter.
Product Details
| Amazon ASIN: | B001G8KWDA |
|---|---|
| C.A.R.B. E.O. Number: | N/A |
| C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for On-Road Vehicles?: | Yes |
| C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: | Yes, but must be a race/competition only vehicle. |
| C.A.R.B. Exemption Reason: | No impact on pollution output of vehicle. |
| California Proposition 65: | WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov |
| Description: | ID Spring Locator - 1.300" OD, .570" ID, .060" Thickness |
| Inside Diameter: | .570" |
| Locator ID: | .570" |
| Locator Inner Diameter: | 0.57 |
| Locator OD: | 1.300" |
| Locator Outer Diameter: | 1.3 |
| Locator Thickness: | .060" |
| Outside Diameter: | 1.3 |
| Part Number: | cca4705-1 |
| Spring ID: | .875" |
| Spring Inner Diameter: | 0.875 |
| Spring Inside Diameter: | .875" |
| Spring OD: | N/A |
| Title: | ID Spring Locator - 1.300" OD, .570" ID, .060" Thickness |
Part Type
Engine Valve Spring Seat
Specifications
- Product Attributes - Brand
- COMP Cams
- Product Attributes - Manufacturer's Part Number
- 4705-1
- Product Attributes - Part Type
- Valve Spring Locators
- Product Attributes - Product Line
- COMP Cams Valve Spring Locators
- Product Attributes - UPC
- 036584095033
- Product Attributes - Locating Shoulder Type
- Inside
- Product Attributes - Inside Diameter of Inner Spring (in.)
- 0.875 in.
- Product Attributes - Locator Thickness (in.)
- 0.060 in.
- Product Attributes - Outside Diameter (in.)
- 1.300
- Product Attributes - Inside Diameter (in.)
- 0.570
- Product Attributes - Locator Material
- Steel
- Product Attributes - Quantity
- Sold individually.
Reference Information
| Brand Name/s | Comp Cams |
|---|---|
| StreetFX SKU | cca4705-1 |
| SFX Item ID | 4120199 |
| Supplier Item Code | 4120199 |
| Manufacturer SKU | 4705-1 |
| Manufacturer UPC | 36584095033 |
