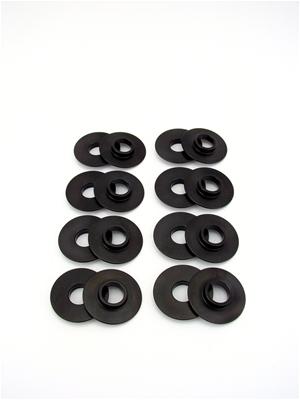

COMP Cams Spring Seats 1.450in X 1.000in
COMP Cams Spring Seats 1.450in X 1.000in
A$132.01
Special Order. Contact for ETA.
This item is out of stock in our warehouse and partner distribution centres. In some cases, this may be due to not having live inventory feeds available for all suppliers. Please contact us before ordering if you need to meet a specific deadline.
We accept
Description
As with all other areas in the valvetrain, the area where the spring sits also takes a beating. The old standard shims and/or seats simply will not hold up to the extreme pressures and high rpm found in today's performance engines. COMP Cams valve spring locators solve this problem and eliminate failures.
Product Overview
The older style standard shims will not hold up to the extreme spring pressures and high RPM found in racing engines being built today. COMP Cams offers a simple but effective solution to this problem − a thin, hardened steel alloy seat which will not only protect the head and shim but also locate and hold the spring in place. Previously, this part has been available only in a cup form with the retaining portion being on the outside of the part. This required that the head be machined a great deal to accept this cup so COMP now offers an I.D. locator with the locating shoulder on the inside, as well as the spring cup. Many sizes are available to locate from the inside or outside diameter.
Product Details
| Description: | ID Spring Locator Set of 12 - 1.450" OD, .570" ID, .060" Thickness |
|---|---|
| Locator ID: | .570" |
| Locator OD: | 1.450" |
| Locator Thickness: | .060" |
| Part Number: | cca4694-12 |
| Spring ID: | 1.000" |
| Spring OD: | N/A |
| Title: | ID Spring Locator Set of 12 - 1.450" OD, .570" ID, .060" Thickness |
Part Type
Engine Valve Spring Seat
Specifications
- Product Attributes - Brand
- COMP Cams
- Product Attributes - Manufacturer's Part Number
- 4694-12
- Product Attributes - Part Type
- Valve Spring Locators
- Product Attributes - Product Line
- COMP Cams Valve Spring Locators
- Product Attributes - UPC
- 036584122555
- Product Attributes - Locating Shoulder Type
- Inside
- Product Attributes - Inside Diameter of Inner Spring (in.)
- 0.990 in.
- Product Attributes - Locator Thickness (in.)
- 0.060 in.
- Product Attributes - Outside Diameter (in.)
- 1.450
- Product Attributes - Inside Diameter (in.)
- 0.570
- Product Attributes - Locator Material
- Steel
- Product Attributes - Quantity
- Sold as a set of 12.
Reference Information
| Brand Name/s | Comp Cams |
|---|---|
| StreetFX SKU | cca4694-12 |
| SFX Item ID | 4120174 |
| Supplier Item Code | 4120174 |
| Manufacturer SKU | 4694-12 |
| Manufacturer UPC | 36584122555 |
| Alternative References | 1.450in, 1.000in |
