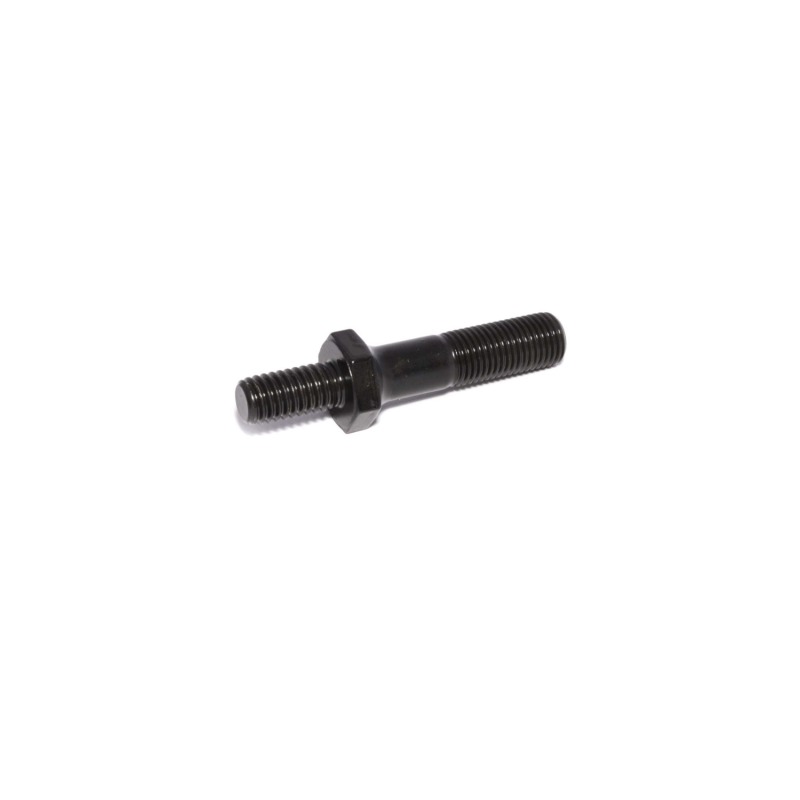

COMP Cams Stud CB 7/16 Hi-Tech
COMP Cams Stud CB 7/16 Hi-Tech
A$31.08
Limited Availability from MFR
Limited stock available from the manufacturer's distribution centre. The dispatch timeframe shown is an estimate based on historical orders of this part. This item is not held in our own warehouse, and availability and release timing may vary depending on manufacturer stock movements and processing at the time of ordering.
We accept
Description
COMP Cams takes pride in having the finest Rocker arm Studs available on the market. The High Energyâ„¢ and Magnum Series Studs work well in Applications with moderate lifts and spring pressures and are available in the popular 3/8" and 7/16" sizes. When ultimate strength is required as with high rpm Roller Cam Applications, the Hi-Techâ„¢ Race Stud is the answer. This Stud has a thin jam nut for Rocker clearance, rolled threads for maximum contact and a ground-flat top so accurate valve adjustment can be achiev+D6143ed and maintained. The diameter of the jam nut is larger in order to spread the load over a larger area. All COMP Cams Studs have generous radii and a black oxide finish. Designed for ultimate strength and locking force High Energy and Magnum polylocks are best for moderate lift and spring pressure Applications Hi-Tech Polylocks work well in all high end Race applications. The Stud girdle polylocks are precision ground for minimum runout and tapered for extra strength in the locking area. Base Thread Part # Description Diameter Length Stud Diameter Effective Stud Length 4512-1 Hi-Tech Race Rocker Stud Chevrolet Big Block 7/16" .750" 7/16" 1.900"
Product Overview
*Rocker Arm Adjusting Nuts*
Many of the popular engine families utilize a positive stop type of rocker arm attachment, which does not allow for any adjustment, and consequently there is no consideration for different cam sizes or other modifications to the engine block and heads. For that reason, COMP has designed a kit to convert this setup to a fully adjustable valve train.
* Tapered for extra strength in locking areas
* High Energy and Magnum Polylocks are best for moderate lift and spring pressure applications
* Hi-Tech Polylocks work well in all high end race applications
* Stud girdle polylocks are precision ground for minimum runout
*Rocker Arm Studs*
COMP Cams takes pride in having the finest rocker arm studs available on the market. The High Energy and Magnum series studs work well in applications with moderate lifts and spring pressures and are available in the popular 3/8" and 7/16" sizes. When ultimate strength is required, as with high RPM roller cam applications, the Hi-Tech Race Stud is the answer. This stud has a thin jam nut for rocker clearance, rolled threads for maximum contact and a ground-flat top so that accurate valve adjustment can be achieved and maintained. The diameter of the jam nut is larger in order to spread the load over a larger area. All COMP Cams® studs have generous radii and a black oxide finish.
Product Details
| Amazon ASIN: | B00062Z926 |
|---|---|
| Base Thread Diameter: | 7/16" |
| Base Thread Length: | .750" |
| C.A.R.B. E.O. Number: | N/A |
| C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for On-Road Vehicles?: | Yes |
| C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: | Yes, but must be a race/competition only vehicle. |
| C.A.R.B. Exemption Reason: | No impact on pollution output of vehicle. |
| California Proposition 65: | WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov |
| Description: | Hi-Tech Rocker Stud for BBC w/ 7/16" Base Thread and 7/16" Rocker Thread |
| Effective Stud Length: | 1.9 |
| Part Number: | cca4512-1 |
| Rocker-Side Thread: | 7/16 |
| Stud Diameter: | 7/16" |
| Stud Length: | 1.900" |
| Title: | Hi-Tech Rocker Stud for BBC w/ 7/16" Base Thread and 7/16" Rocker Thread |
Part Type
Engine Rocker Arm Stud
Specifications
- Product Attributes - Brand
- COMP Cams
- Product Attributes - Manufacturer's Part Number
- 4512-1
- Product Attributes - Part Type
- Rocker Arm Studs
- Product Attributes - Product Line
- COMP Cams Hi-Tech Rocker Arm Studs
- Product Attributes - UPC
- 036584392514
- Product Attributes - Base Thread Size
- 7/16 in.-14
- Product Attributes - Rocker Arm Nut Thread Size
- 7/16 in.-20
- Product Attributes - Rocker Arm Stud Material
- Alloy steel
- Product Attributes - Guideplate Locator Shank
- Yes
- Product Attributes - Rocker Arm Nut Thread Length (in.)
- 0.977 in.
- Product Attributes - Effective Stud Length (in.)
- 1.900 in.
- Product Attributes - Base Thread Length (in.)
- 0.750
- Product Attributes - Quantity
- Sold individually.
Reference Information
| Brand Name/s | Comp Cams |
|---|---|
| StreetFX SKU | cca4512-1 |
| SFX Item ID | 4120083 |
| Supplier Item Code | 4120083 |
| Manufacturer SKU | 4512-1 |
| Manufacturer UPC | 36584392514 |
Brochures
