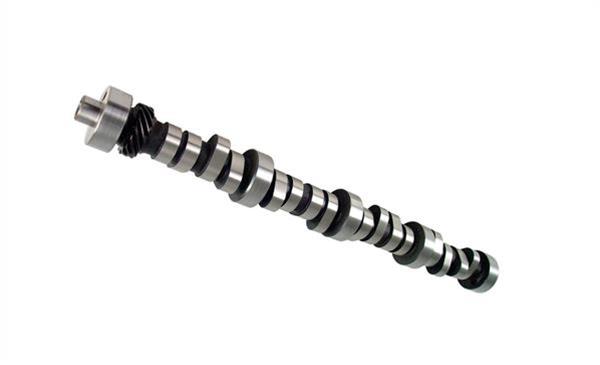

COMP Cams Camshaft FW XFI 236HR-14
COMP Cams Camshaft FW XFI 236HR-14
A$1,239.41
Available from MFR.
This item is available from the manufacturer's distribution centre. The dispatch timeframe shown is an estimate based on historical order processing and release times for this part. This item is not held in our own warehouse, and actual dispatch timing may vary depending on manufacturer workload and logistics at the time of ordering.
We accept
Description
XFI Computer Controlled 236/248 Hydraulic Roller Cam
Product Overview
*XFI Camshafts*
* Newest and quickest lobe profiles in the Xtreme family; provide a terrific increase in performance
* Tuned for use in EFI applications where extra air flow signal through the carburetor is not required (feature wider lobe separation without loss of responsiveness)
* Work well with aftermarket cylinder heads & feature high lift
Product Details
| Advertised Exhaust Duration: | 300 |
|---|---|
| Advertised Intake Duration: | 286 |
| Amazon ASIN: | B001NEUQX8 |
| Assembly Lubricant Included: | No |
| Basic Operating RPM Range: | 2,600-6,300 |
| C.A.R.B. E.O. Number: | N/A |
| C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for On-Road Vehicles?: | No |
| C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: | Yes, but must be a race/competition only vehicle. |
| C.A.R.B. Exemption Reason: | N/A |
| California Proposition 65: | WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov |
| Cam Type: | Hydraulic Roller |
| Camshaft Gear Attachment: | 1-Bolt |
| Camshaft Material: | Austempered Ductile Iron |
| Camshaft Series: | XFI |
| Description: | XFI Computer Controlled 236/248 Hydraulic Roller Cam for Ford 351W |
| Engine Family: | Ford 5.0L (1985-2002) |
| Exhaust Duration @ .050 in.: | 248 |
| Exhaust Duration at .050 inch Lift: | 248 |
| Exhaust Duration: | 300 |
| Exhaust Valve Lift(in): | 0.579 |
| Exhaust Valve Lift: | 0.579 |
| Grind Number: | XFI236HR-14 |
| Intake Duration @ .050 in.: | 236 |
| Intake Duration at .050 Inch Lift: | 236 |
| Intake Duration: | 286 |
| Intake Valve Lift(in): | 0.579 |
| Intake Valve Lift: | 0.579 |
| Lifter Type: | Hydraulic Roller |
| Lifters Included: | No |
| Lobe Separation: | 114 |
| Part Number: | cca35-775-8 |
| RPM Range: | 2000-9000 |
| Title: | XFI Computer Controlled 236/248 Hydraulic Roller Cam for Ford 351W |
| Usage: | Street/Performance |
| Valve Springs Required: | Yes |
Application Summary
Fits Ford Small Block Engines originally equipped with "Old" firing order and 351 Windsor engines with the "Windsor" firing order
Part Type
Engine Camshaft
Specifications
- Product Attributes - Brand
- COMP Cams
- Product Attributes - Manufacturer's Part Number
- 35-775-8
- Product Attributes - Part Type
- Camshafts
- Product Attributes - Product Line
- COMP Cams Xtreme Fuel Injected Camshafts
- Product Attributes - UPC
- 036584117537
- Product Attributes - Cam Style
- Hydraulic roller, OE roller
- Product Attributes - Camshaft Use
- Street/Strip
- Product Attributes - Basic Operating RPM Range
- 2,600-6,300
- Product Attributes - Intake Duration at 050 inch Lift
- 236
- Product Attributes - Exhaust Duration at 050 inch Lift
- 248
- Product Attributes - Duration at 050 inch Lift
- 236 int./248 exh.
- Product Attributes - Advertised Intake Duration
- 286
- Product Attributes - Advertised Exhaust Duration
- 300
- Product Attributes - Advertised Duration
- 286 int./300 exh.
- Product Attributes - Intake Valve Lift with Factory Rocker Arm Ratio
- 0.579 in.
- Product Attributes - Exhaust Valve Lift with Factory Rocker Arm Ratio
- 0.579 in.
- Product Attributes - Valve Lift with Factory Rocker Arm Ratio
- 0.579 int./0.579 exh.
- Product Attributes - Lobe Separation (degrees)
- 114
- Product Attributes - Remanufactured
- No
- Product Attributes - Computer-Controlled Compatible
- Yes
- Product Attributes - Valve Springs Required
- Yes
- Product Attributes - Quantity
- Sold individually.
- Product Attributes - Notes
- Requires custom computer tuning. Designed to 347 c.i.d. or larger engine.
Reference Information
| Brand Name/s | Comp Cams |
|---|---|
| StreetFX SKU | cca35-775-8 |
| SFX Item ID | 4119956 |
| Supplier Item Code | 4119956 |
| Manufacturer SKU | 35-775-8 |
| Manufacturer UPC | 36584117537 |
| Alternative References | 351w, f100, f150, COM35-775-8, 236HR-14 |
Brochures
Compatibility
Fits Ford Small Block Engines originally equipped with "Old" firing order and 351 Windsor engines with the "Windsor" firing order
