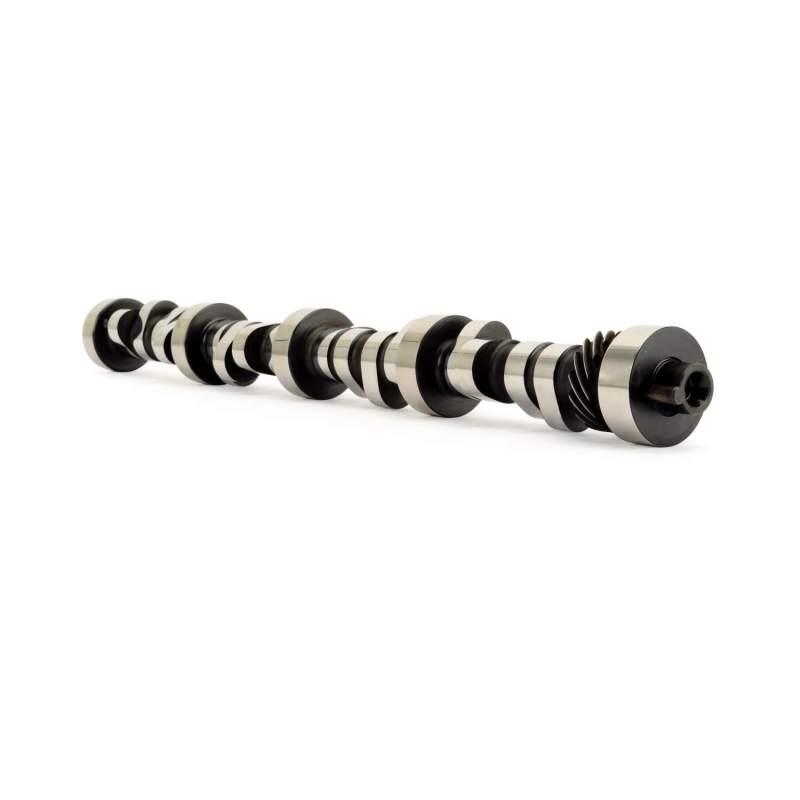

COMP Cams Camshaft FW Ford 269Qio8
COMP Cams Camshaft FW Ford 269Qio8
A$1,469.69
Limited Availability from MFR
Limited stock available from the manufacturer's distribution centre. The dispatch timeframe shown is an estimate based on historical orders of this part. This item is not held in our own warehouse, and availability and release timing may vary depending on manufacturer stock movements and processing at the time of ordering.
We accept
Description
Hydraulic Roller: 4-Pattern 269QIO8 - Best choice for smaller c.i.d. Applications with very good heads. Extremely wide power range. 1800+ Stall.
Product Overview
*4-Pattern Camshafts*
* Optimize valve events based on runner length
* Feature a large increase in both area under the curve and stability at high RPM
* Feature four lobe patterns; one intake & exhaust design for outboard runners and another intake & exhaust design for inboard runners
* Technology developed and race-proven in NASCAR
Product Details
| Advertised Inboard Exhaust Duration: | 281 |
|---|---|
| Advertised Inboard Intake Duration: | 269 |
| Advertised Outboard Exhaust Duration: | 283 |
| Advertised Outboard Intake Duration: | 271 |
| Amazon ASIN: | B00CWZUWO0 |
| Assembly Lubricant Included: | No |
| Basic Operating RPM Range: | 1,700-6,300 |
| C.A.R.B. E.O. Number: | N/A |
| C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for On-Road Vehicles?: | No |
| C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: | Yes, but must be a race/competition only vehicle. |
| C.A.R.B. Exemption Reason: | N/A |
| California Proposition 65: | WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov |
| Cam Type: | Hydraulic Roller |
| Camshaft Gear Attachment: | 1-Bolt |
| Camshaft Material: | Billet Steel |
| Camshaft Series: | 4-Pattern |
| Description: | 4-Pattern 217/227 IB, 219/229 OB Hydraulic Roller Cam for Ford 351W |
| Engine Family: | Ford 351W 8 Cylinder (1969-1996) |
| Exhaust Duration @ .050 in.: | 229 |
| Exhaust Duration: | 283 |
| Exhaust Valve Lift(in): | 0.59 |
| Grind Number: | 269QIO8 |
| Inboard Exhaust Duration at .050 inch Lift: | 227 |
| Inboard Exhaust Valve Lift: | 0.587 |
| Inboard Intake Duration at .050 Inch Lift: | 217 |
| Inboard Intake Valve Lift: | 0.6 |
| Intake Duration @ .050 in.: | 219 |
| Intake Duration: | 271 |
| Intake Valve Lift(in): | 0.603 |
| Lifter Type: | Hydraulic Roller |
| Lifters Included: | No |
| Outboard Exhaust Duration at .050 inch Lift: | 229 |
| Outboard Exhaust Valve Lift: | 0.59 |
| Outboard Intake Duration at .050 Inch Lift: | 219 |
| Outboard Intake Valve Lift: | 0.603 |
| Part Number: | cca35-561-44 |
| RPM Range: | 1700-6300 |
| Title: | 4-Pattern 217/227 IB, 219/229 OB Hydraulic Roller Cam for Ford 351W |
| Usage: | Street/Strip |
| Valve Springs Required: | Yes |
Application Summary
Fits Ford Small Block Engines originally equipped with "Old" firing order and 351 Windsor engines with the "Windsor" firing order
Part Type
Engine Camshaft
Specifications
- Product Attributes - Brand
- COMP Cams
- Product Attributes - Manufacturer's Part Number
- 35-561-44
- Product Attributes - Part Type
- Camshafts
- Product Attributes - Product Line
- COMP Cams 4-Pattern Hydraulic Roller Camshafts
- Product Attributes - UPC
- 036584259725
- Product Attributes - Cam Style
- Hydraulic roller, Retro-fit
- Product Attributes - Camshaft Use
- Street/Strip
- Product Attributes - Camshaft Manufacturers Description
- Best choice for smaller cubic inch applications with very good heads. Extremely wide power range. 1,800+ stall.
- Product Attributes - Basic Operating RPM Range
- 1,700-6,300
- Product Attributes - Intake Duration at 050 inch Lift
- 219/217
- Product Attributes - Exhaust Duration at 050 inch Lift
- 229/227
- Product Attributes - Duration at 050 inch Lift
- 219 int./229 exh., 217 int./227 exh.
- Product Attributes - Advertised Intake Duration
- 271/269
- Product Attributes - Advertised Exhaust Duration
- 283/281
- Product Attributes - Advertised Duration
- 271 int./283 exh., 269 int./281 exh.
- Product Attributes - Intake Valve Lift with Factory Rocker Arm Ratio
- 0.603 in./0.600 in.
- Product Attributes - Exhaust Valve Lift with Factory Rocker Arm Ratio
- 0.590 in./0.587 in.
- Product Attributes - Valve Lift with Factory Rocker Arm Ratio
- 0.603 int./0.590 exh., 0.600 int./0.587 exh.
- Product Attributes - Lobe Separation (degrees)
- 108
- Product Attributes - Camshaft Gear Attachment
- 1-bolt
- Product Attributes - Remanufactured
- No
- Product Attributes - Computer-Controlled Compatible
- No
- Product Attributes - Grind Number
- 269QIO8
- Product Attributes - Valve Springs Required
- Yes
- Product Attributes - Quantity
- Sold individually.
Reference Information
| Brand Name/s | Comp Cams |
|---|---|
| StreetFX SKU | cca35-561-44 |
| SFX Item ID | 4119931 |
| Supplier Item Code | 4119931 |
| Manufacturer SKU | 35-561-44 |
| Manufacturer UPC | 36584259725 |
| Alternative References | 351w, f100, f150, 269Qio8 |
Brochures
Compatibility
Fits Ford Small Block Engines originally equipped with "Old" firing order and 351 Windsor engines with the "Windsor" firing order
