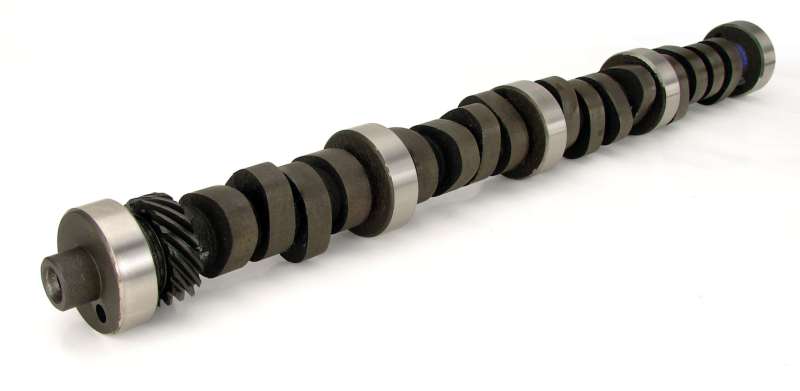

COMP Cams Camshaft FW 292H-10
COMP Cams Camshaft FW 292H-10
A$676.95
Available from MFR.
This item is available from the manufacturer's distribution centre. The dispatch timeframe shown is an estimate based on historical order processing and release times for this part. This item is not held in our own warehouse, and actual dispatch timing may vary depending on manufacturer workload and logistics at the time of ordering.
We accept
Description
Hydraulic: Great street/strip cam, 10:1 compression, headers, intake, Gears and 3000 stall. Very rough idle.
Product Overview
Ford; SBF; Mustang; Windsor; Fairlane; Meteor; Mercury; GT; 22; 260; Sunbeam; Tiger; 289; 302; 351; 289; HiPo; K-Code; GT-350; Shelby; Boss; 5.0; 308; Windsor; Torino; Cougar; F-150; Squire; Thunderbird; LTD; Galaxie; Grand Marquis
Product Details
| Advertised Exhaust Duration: | 292 |
|---|---|
| Advertised Intake Duration: | 292 |
| Amazon ASIN: | B000CIQ8YW |
| Assembly Lubricant Included: | Yes |
| Basic Operating RPM Range: | 2,500-6,500 |
| C.A.R.B. E.O. Number: | N/A |
| C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for On-Road Vehicles?: | No |
| C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: | Yes, but must be a race/competition only vehicle. |
| C.A.R.B. Exemption Reason: | N/A |
| California Proposition 65: | WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov |
| Cam Type: | Hydraulic Flat Tappet |
| Cam and Lifter Kit Upgrade: | CL35-330-3 |
| Camshaft Gear Attachment: | 1-Bolt |
| Camshaft Material: | Cast Iron |
| Camshaft Series: | Magnum |
| Description: | Magnum 244/244 Hydraulic Flat Cam for Ford 221-302 |
| Engine Family: | Ford 351W 8 Cylinder (1969-1996) |
| Exhaust Duration @ .050 in.: | 244 |
| Exhaust Duration at .050 inch Lift: | 244 |
| Exhaust Duration: | 292 |
| Exhaust Valve Lift(in): | 0.518 |
| Exhaust Valve Lift: | 0.518 |
| Grind Number: | 292H |
| Intake Duration @ .050 in.: | 244 |
| Intake Duration at .050 Inch Lift: | 244 |
| Intake Duration: | 292 |
| Intake Valve Lift(in): | 0.518 |
| Intake Valve Lift: | 0.518 |
| K-Kit Upgrade: | K35-330-3 |
| Lifter Type: | Hydraulic Flat Tappet |
| Lifters Included: | No |
| Lobe Separation: | 110 |
| Part Number: | cca35-330-3 |
| RPM Range: | 2000-9000 |
| SK-Kit Upgrade: | SK35-330-3 |
| Title: | Magnum 244/244 Hydraulic Flat Cam for Ford 221-302 |
| Usage: | Street/Strip |
| Valve Springs Required: | Yes |
Application Summary
Fits Ford Small Block Engines originally equipped with "Old" firing order and 351 Windsor engines with the "Windsor" firing order
Part Type
Engine Camshaft
Specifications
- Product Attributes - Brand
- COMP Cams
- Product Attributes - Manufacturer's Part Number
- 35-330-3
- Product Attributes - Part Type
- Camshafts
- Product Attributes - Product Line
- COMP Cams Magnum Hydraulic Camshafts
- Product Attributes - UPC
- 036584520436
- Product Attributes - Cam Style
- Hydraulic flat tappet
- Product Attributes - Camshaft Use
- Street/Strip
- Product Attributes - Basic Operating RPM Range
- 2,500-6,500
- Product Attributes - Intake Duration at 050 inch Lift
- 244
- Product Attributes - Exhaust Duration at 050 inch Lift
- 244
- Product Attributes - Duration at 050 inch Lift
- 244 int./244 exh.
- Product Attributes - Advertised Intake Duration
- 292
- Product Attributes - Advertised Exhaust Duration
- 292
- Product Attributes - Advertised Duration
- 292 int./292 exh.
- Product Attributes - Intake Valve Lift with Factory Rocker Arm Ratio
- 0.518 in.
- Product Attributes - Exhaust Valve Lift with Factory Rocker Arm Ratio
- 0.518 in.
- Product Attributes - Valve Lift with Factory Rocker Arm Ratio
- 0.518 int./0.518 exh.
- Product Attributes - Lobe Separation (degrees)
- 110
- Product Attributes - Remanufactured
- No
- Product Attributes - Computer-Controlled Compatible
- No
- Product Attributes - Grind Number
- FW 292H-10
- Product Attributes - Valve Springs Required
- Yes
- Product Attributes - Quantity
- Sold individually.
- Product Attributes - Notes
- For 5.0L HO and 351W firing order.
Reference Information
| Brand Name/s | Comp Cams |
|---|---|
| StreetFX SKU | cca35-330-3 |
| SFX Item ID | 4119903 |
| Supplier Item Code | 4119903 |
| Manufacturer SKU | 35-330-3 |
| Manufacturer UPC | 36584520436 |
| Alternative References | gt-350;, f-150;, COM35-330-3, 292H-10 |
Brochures
Compatibility
Fits Ford Small Block Engines originally equipped with "Old" firing order and 351 Windsor engines with the "Windsor" firing order
