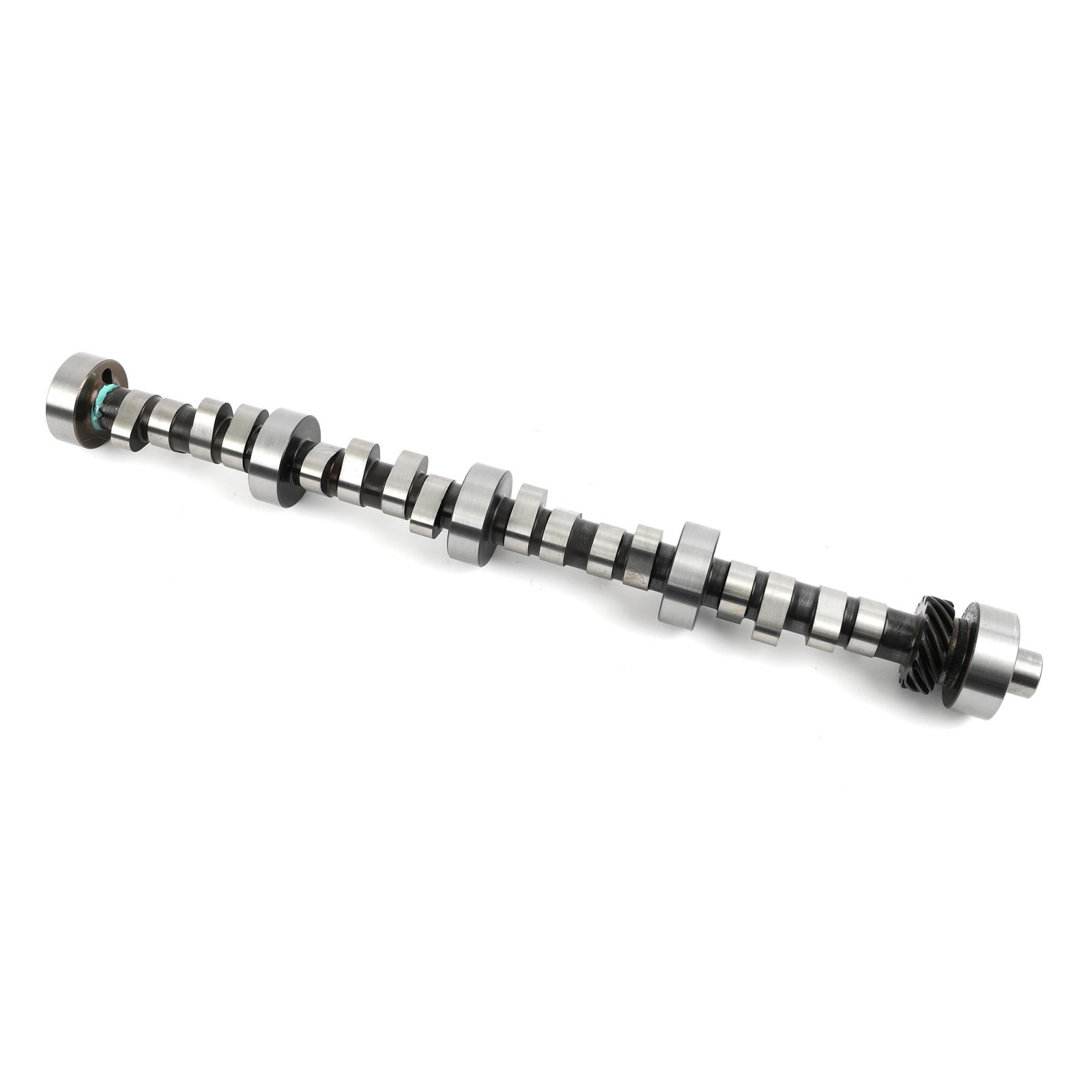

COMP Cams Camshaft FS 270Rf-HR10
COMP Cams Camshaft FS 270Rf-HR10
A$1,159.65
Special Order. Contact for ETA.
This item is out of stock in our warehouse and partner distribution centres. In some cases, this may be due to not having live inventory feeds available for all suppliers. Please contact us before ordering if you need to meet a specific deadline.
We accept
Description
IMPORTANT NOTICE: Will not fit HO models due to base circle size. Designed for pre-roller block applications. Not design for stock EFI applications.
An older member of the COMP Cams grind family, the Magnum series of camshafts offers excellent performance gains over stock without the added wear and tear associated with more aggressive camshafts. Ideal for use with higher compression ratio engines that need to bleed off compression, the magnum series performs its best when static compression is 9.5:1+ and with an aftermarket higher stall torque converter. Delivering excellent high RPM power, while not needlessly abusing valve train parts, the Magnum grind family is the perfect choice for performance engines equipped with mild ratio rocker arms and traditional performance valve springs.
Product Overview
An older member of the COMP Cams grind family, the Magnum series of camshafts offers excellent performance gains over stock without the added wear and tear associated with more aggressive camshafts. Ideal for use with higher compression ratio engines that need to bleed off compression, the magnum series performs its best when static compression is 9.5:1+ and with an aftermarket higher stall torque converter. Delivering excellent high RPM power, while not needlessly abusing valve train parts, the Magnum grind family is the perfect choice for performance engines equipped with mild ratio rocker arms and traditional performance valve springs.
Product Details
| Advertised Exhaust Duration: | 270 |
|---|---|
| Advertised Intake Duration: | 270 |
| Amazon ASIN: | B000P5GA86 |
| Assembly Lubricant Included: | No |
| Basic Operating RPM Range: | 1,800-5,000 |
| C.A.R.B. E.O. Number: | N/A |
| C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for On-Road Vehicles?: | No |
| C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: | Yes, but must be a race/competition only vehicle. |
| C.A.R.B. Exemption Reason: | N/A |
| California Proposition 65: | WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov |
| Cam Type: | Hydraulic Roller |
| Cam and Lifter Kit Upgrade: | CL31-422-8 |
| Camshaft Gear Attachment: | 1-Bolt |
| Camshaft Material: | Austempered Ductile Iron |
| Camshaft Series: | Magnum |
| Description: | Magnum 215/215 Hydraulic Roller Cam for Ford 221-302 |
| Engine Family: | Ford 221, 260, 289, 302 c.i. 8 Cylinder (1963-1995) |
| Exhaust Duration @ .050 in.: | 215 |
| Exhaust Duration at .050 inch Lift: | 215 |
| Exhaust Duration: | 270 |
| Exhaust Valve Lift(in): | 0.533 |
| Exhaust Valve Lift: | 0.533 |
| Grind Number: | 270HR |
| Intake Duration @ .050 in.: | 215 |
| Intake Duration at .050 Inch Lift: | 215 |
| Intake Duration: | 270 |
| Intake Valve Lift(in): | 0.533 |
| Intake Valve Lift: | 0.533 |
| K-Kit Upgrade: | K31-422-8 |
| Lifter Type: | Hydraulic Roller |
| Lifters Included: | No |
| Lobe Separation: | 110 |
| Part Number: | cca31-422-8 |
| RPM Range: | 1000-7000 |
| SK-Kit Upgrade: | SK31-422-8 |
| Title: | Magnum 215/215 Hydraulic Roller Cam for Ford 221-302 |
| Usage: | Street/Strip |
| Valve Springs Required: | Yes |
Application Summary
Fits Ford 221, 255, 260, 289 and 302 Small Block
Part Type
Engine Camshaft
Specifications
- Product Attributes - Brand
- COMP Cams
- Product Attributes - Manufacturer's Part Number
- 31-422-8
- Product Attributes - Part Type
- Camshafts
- Product Attributes - Product Line
- COMP Cams Magnum Retrofit Camshafts
- Product Attributes - UPC
- 036584780359
- Product Attributes - Cam Style
- Hydraulic roller, Retro-fit
- Product Attributes - Camshaft Use
- Street/Strip
- Product Attributes - Basic Operating RPM Range
- 1,800-5,000
- Product Attributes - Intake Duration at 050 inch Lift
- 215
- Product Attributes - Exhaust Duration at 050 inch Lift
- 215
- Product Attributes - Duration at 050 inch Lift
- 215 int./215 exh.
- Product Attributes - Advertised Intake Duration
- 270
- Product Attributes - Advertised Exhaust Duration
- 270
- Product Attributes - Advertised Duration
- 270 int./270 exh.
- Product Attributes - Intake Valve Lift with Factory Rocker Arm Ratio
- 0.533 in.
- Product Attributes - Exhaust Valve Lift with Factory Rocker Arm Ratio
- 0.533 in.
- Product Attributes - Valve Lift with Factory Rocker Arm Ratio
- 0.533 int./0.533 exh.
- Product Attributes - Lobe Separation (degrees)
- 110
- Product Attributes - Remanufactured
- No
- Product Attributes - Computer-Controlled Compatible
- No
- Product Attributes - Grind Number
- 270HR
- Product Attributes - Valve Springs Required
- Yes
- Product Attributes - Quantity
- Sold individually.
- Product Attributes - Notes
- Will not fit HO models due to base circle size. Designed for pre-roller block applications. Not design for stock EFI applications.
Reference Information
| Brand Name/s | Comp Cams |
|---|---|
| StreetFX SKU | cca31-422-8 |
| SFX Item ID | 4119687 |
| Supplier Item Code | 4119687 |
| Manufacturer SKU | 31-422-8 |
| Manufacturer UPC | 36584780359 |
| Alternative References | gt-350;, f-150;, 270Rf-HR10 |
Brochures
Compatibility
Fits Ford 221, 255, 260, 289 and 302 Small Block
