COMP Cams Valve Spring Kit 0.585in Lift Beehive 06-16 GM 6.6L Duramax Diesel (LBZ/LMM/LML/L5P)
COMP Cams Valve Spring Kit 0.585in Lift Beehive 06-16 GM 6.6L Duramax Diesel (LBZ/LMM/LML/L5P)
A$1,964.94
Limited Availability from MFR
Limited stock available from the manufacturer's distribution centre. The dispatch timeframe shown is an estimate based on historical orders of this part. This item is not held in our own warehouse, and availability and release timing may vary depending on manufacturer stock movements and processing at the time of ordering.
We accept
Description

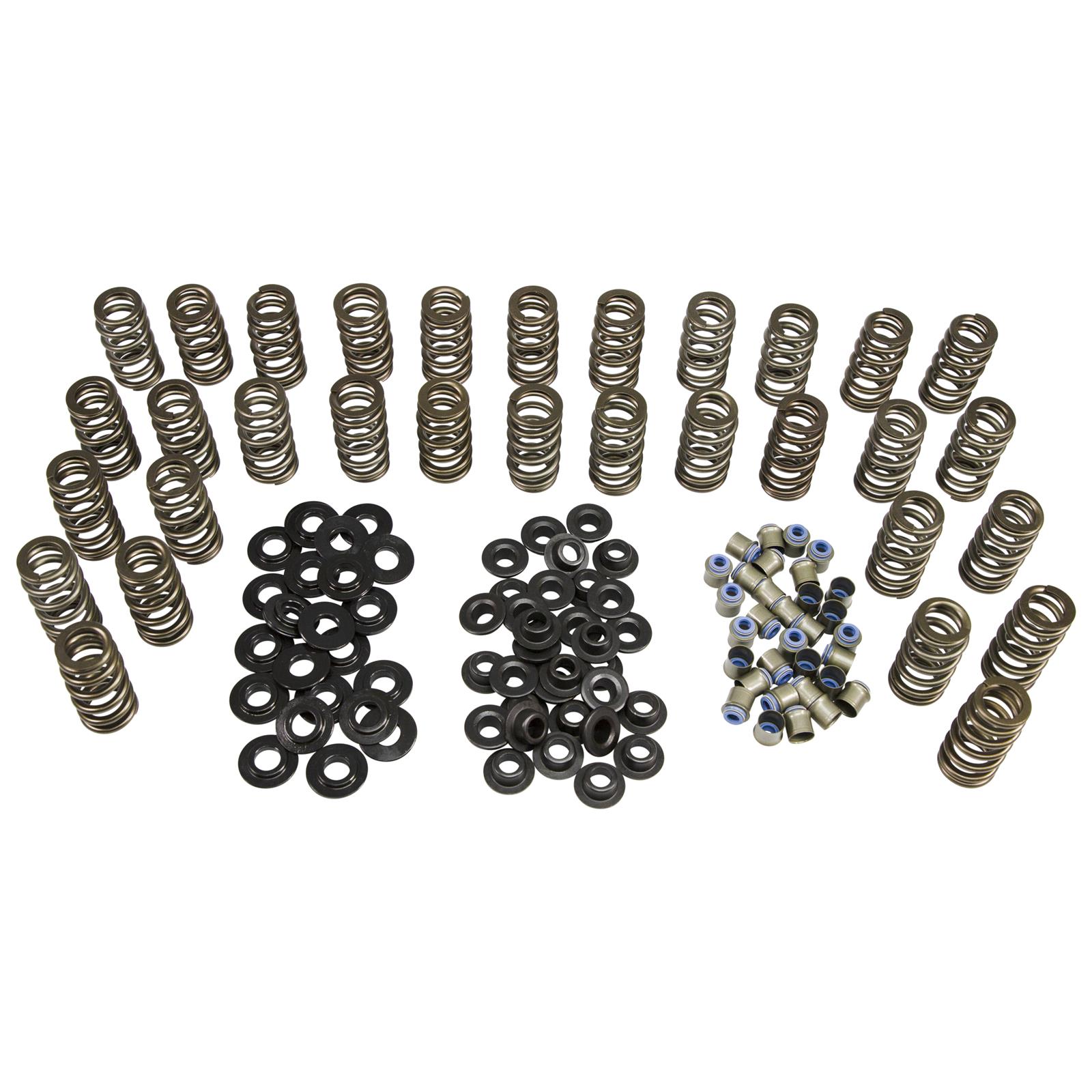

The .585” Lift COMP Cams Beehive Valve Spring Kits for GM 6.6L Duramax Diesel Engines include everything needed to upgrade from stock springs: Beehive Valve Springs, steel retainers, spring seats and valve seals. Beehive Valve Springs feature a reduced diameter at the top of the spring to allow the use of a smaller and lighter retainer, reducing overall valve train weight. The lighter valve train combined with the stronger spring allows the engine to rev higher without concerns of valve float while an increased spring rate maintains valve train stability at elevated RPM to allow the use of more aggressive camshafts. The unique ovate Beehive shape not only has higher load but is more dynamically stable than the factory spring, ensuring valve train stability at elevated RPM and boost pressures.
Product Overview
The .585” Lift COMP Cams Beehive Valve Spring Kits for GM 6.6L Duramax Diesel Engines include everything needed to upgrade from stock springs: Beehive Valve Springs, steel retainers, spring seats and valve seals. Beehive Valve Springs feature a reduced diameter at the top of the spring to allow the use of a smaller and lighter retainer, reducing overall valve train weight. The lighter valve train combined with the stronger spring allows the engine to rev higher without concerns of valve float while an increased spring rate maintains valve train stability at elevated RPM to allow the use of more aggressive camshafts. The unique ovate Beehive shape not only has higher load but is more dynamically stable than the factory spring, ensuring valve train stability at elevated RPM and boost pressures.
Product Details
| Big End Outside Diameter: | 1.101 |
|---|---|
| Camshaft Type: | Solid Roller |
| Coil Bind Height: | 0.97 |
| Damper: | No |
| Description: | .585" Lift Beehive Spring Kit for '06-'16 GM 6.6L Duramax Diesel |
| Free Length: | 2.108 |
| ID Big End: | 0.738 |
| ID Small End: | 0.65 |
| Included Seats: | 4688-32 |
| Includes Retainers?: | Yes |
| Includes Seats?: | Yes |
| Includes Shims?: | No |
| Inside Diameter: | 0.650/0.738 |
| Installed Height: | 1.585 |
| Installed Pressure: | 130 |
| Machine Work Required?: | No |
| Max Lift: | 0.585 |
| Number of Springs: | 1 |
| Open Height: | 1.1 |
| Open Pressure: | 259 |
| Part Number: | cca26125BCS-KIT |
| Retainer Material: | 4140 Chromemoly Steel |
| Seat Pressure: | 130 |
| Small End Outside Diameter: | 1.013 |
| Spring Rate: | 258 |
| Spring Seat Type: | Steel |
| Spring Style: | Beehive |
| Spring Type: | Beehive |
| Title: | .585" Lift Beehive Spring Kit for '06-'16 GM 6.6L Duramax Diesel |
| Valve Spring Series: | Diesel |
Application Summary
Fits 2006-2016 GM 6.6L Duramax Diesel
Part Type
Engine Valve Spring Kit
Specifications
- Product Attributes - Brand
- COMP Cams
- Product Attributes - Manufacturer's Part Number
- 26125BCS-KIT
- Product Attributes - Part Type
- Valve Springs
- Product Attributes - Product Line
- COMP Cams Valve Springs
- Product Attributes - UPC
- 036584408468
- Product Attributes - Valve Spring Style
- Beehive
- Product Attributes - Number of Springs Per Valve
- Single
- Product Attributes - Maximum Valve Lift (in.)
- 0.610 in.
- Product Attributes - Retainers Included
- Yes
- Product Attributes - Retainer Material
- Chromoly steel
- Product Attributes - Outside Diameter of Outer Spring (in.)
- 1.101 in.
- Product Attributes - Coil Bind Height (in.)
- 0.970 in.
- Product Attributes - Damper Spring Included
- No
- Product Attributes - Spring Rate (lbs/in.)
- 258 lbs./in.
- Product Attributes - Inside Diameter of Outer Spring (in.)
- 0.738 in.
- Product Attributes - Locks Included
- No
- Product Attributes - Valve Stem Seals Included
- Yes
- Product Attributes - Valve Springs Coated
- No
- Product Attributes - Remanufactured
- No
- Product Attributes - Quantity
- Sold as a kit.
- Product Attributes - Notes
- Kit includes springs, retainers, seals and spring seats.
Reference Information
| Brand Name/s | Comp Cams |
|---|---|
| StreetFX SKU | cca26125BCS-KIT |
| SFX Item ID | 4118117 |
| Supplier Item Code | 4118117 |
| Manufacturer SKU | 26125BCS-KIT |
| Manufacturer UPC | 36584408468 |
| Alternative References | 4x4;, CPC26125BCS-KIT, 0.585in, 6.6L, (LBZ/LMM/LML/L5P) |
Brochures
Compatibility
Fits 2006-2016 GM 6.6L Duramax Diesel
