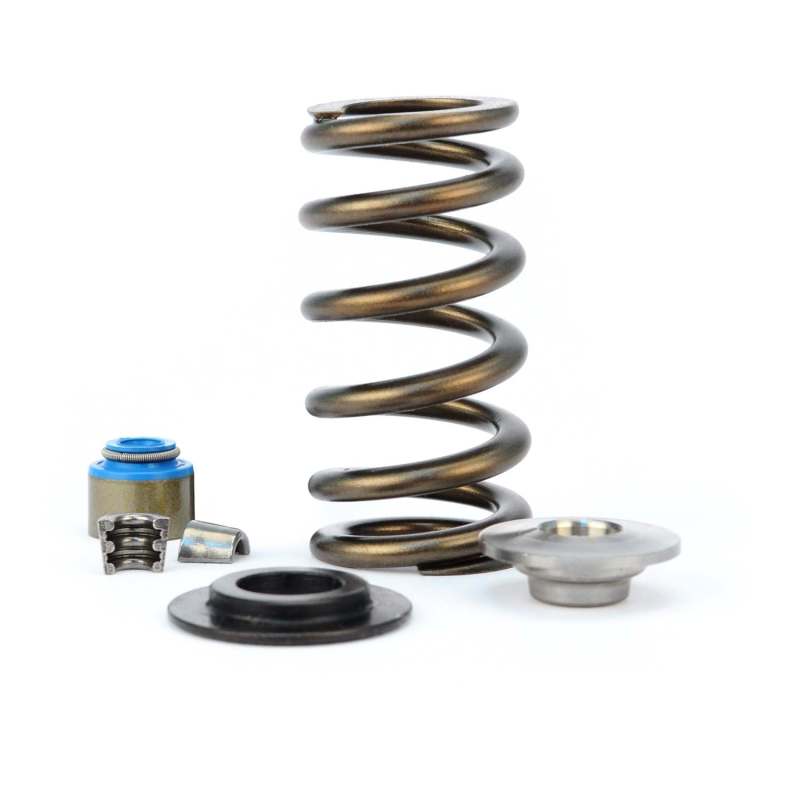

COMP Cams Ford 5.0L Coyote Valve Spring Kit O.D. .959in
COMP Cams Ford 5.0L Coyote Valve Spring Kit O.D. .959in
A$1,720.42
LOW STOCK! Est Ship 3-5 days.
HURRY! LOW STOCK. This item is in limited stock at one of our distribution centres. The ETA is the approximate time required to prepare your order for dispatch.
We accept
Description
includes (32) springs, (32) retainers, (32) seats, and (32) Seals. Increased valve control over stock springs (especially at high RPM) thanks to a performance-driven design and proven modular engine track record Fits 2011-2014 and 2015-Later
Product Overview
*Ford Coyote Beehive Springs*
* Creates higher load, higher RPM & more lift capacity than stock parts
* Complete kit; includes (32) springs, (32) retainers, (32) seats, & (32) seals
* Increased valve control over stock springs (especially at high RPM) thanks to a performance-driven design & proven modular engine track record
Features and Benefits
- Designed for both 2011 - 2014 and 2015+ Ford Coyote and Boss 5.0L engines.
- Create higher load
- higher RPM and more lift capacity than stock.
- Increased valve control at high RPM.
- .510" Maximum Lift
Product Details
| Amazon ASIN: | N/A |
|---|---|
| C.A.R.B. E.O. Number: | N/A |
| C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for On-Road Vehicles?: | Yes |
| C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: | Yes, but must be a race/competition only vehicle. |
| C.A.R.B. Exemption Reason: | No impact on pollution output of vehicle. |
| California Proposition 65: | WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov |
| Description: | Coyote Beehive Spring Kit w/ Chromemoly Steel Retainers; .510" Max Lift |
| Part Number: | cca26113CY-KIT |
| Title: | Beehive Spring Kit w/ Chromemoly Steel Retainers for Ford 5.0 Coyote |
Application Summary
Ford: Mustang 11 - 17 5 L Engine, Lincoln: Mark LT 11 - 14 5 L Engine, Ford: Lobo 11 - 17 5 L Engine, Ford: F-150 11 - 17 5 L Engine
Part Type
Engine Valve Spring Kit
Features
- .510" Maximum Lift
- Create higher load
- Designed for both 2011 - 2014 and 2015+ Ford Coyote and Boss 5.0L engines.
- higher RPM and more lift capacity than stock.
- Increased valve control at high RPM.
Specifications
- Product Attributes - Brand
- COMP Cams
- Product Attributes - Manufacturer's Part Number
- 26113CY-KIT
- Product Attributes - Part Type
- Valve Springs
- Product Attributes - Product Line
- COMP Cams High Performance Valve Spring Kits
- Product Attributes - UPC
- 036584243267
- Product Attributes - Valve Spring Style
- Beehive
- Product Attributes - Number of Springs Per Valve
- Single
- Product Attributes - Maximum Valve Lift (in.)
- 0.550 in.
- Product Attributes - Retainers Included
- Yes
- Product Attributes - Retainer Material
- Chromoly steel
- Product Attributes - Outside Diameter of Outer Spring (in.)
- 0.959 in./1.061 in.
- Product Attributes - Coil Bind Height (in.)
- 1.100 in.
- Product Attributes - Damper Spring Included
- No
- Product Attributes - Spring Rate (lbs./in.)
- 191 lbs./in.
- Product Attributes - Inside Diameter of Outer Spring (in.)
- 0.636 in./0.738 in.
- Product Attributes - Locks Included
- Yes
- Product Attributes - Lock Material
- Hardened steel
- Product Attributes - Lock Groove Quantity
- 1-groove
- Product Attributes - Lock Style
- 7 degree
- Product Attributes - Valve Stem Seals Included
- Yes
- Product Attributes - Valve Springs Coated
- No
- Product Attributes - Valve Stem Diameter (in.)
- 0.236 in.
- Product Attributes - Valve Stem Diameter (mm)
- 5.99mm
- Product Attributes - Remanufactured
- No
- Product Attributes - Quantity
- Sold as a kit.
- Product Attributes - Notes
- Designed for 32 valve engine.
Reference Information
| Brand Name/s | Comp Cams |
|---|---|
| StreetFX SKU | cca26113CY-KIT |
| SFX Item ID | 4124851 |
| Supplier Item Code | 4124851 |
| Manufacturer SKU | 26113CY-KIT |
| Manufacturer UPC | 36584243267 |
| Alternative References | CPC26113CY-KIT, 5.0L, .959in |
Brochures
Compatibility
Ford: Mustang 11 - 17 5 L Engine, Lincoln: Mark LT 11 - 14 5 L Engine, Ford: Lobo 11 - 17 5 L Engine, Ford: F-150 11 - 17 5 L Engine
