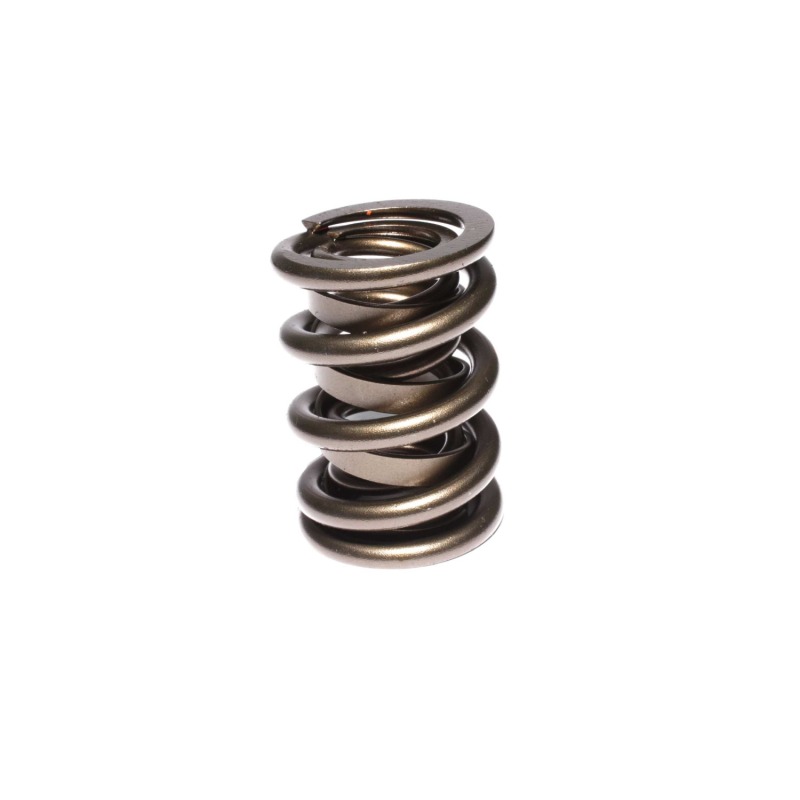

COMP Cams Valve Spring Busch/Supertruck
COMP Cams Valve Spring Busch/Supertruck
A$145.55
Available from MFR.
This item is available from the manufacturer's distribution centre. The dispatch timeframe shown is an estimate based on historical order processing and release times for this part. This item is not held in our own warehouse, and actual dispatch timing may vary depending on manufacturer workload and logistics at the time of ordering.
We accept
Description
Elite Race Double Valve Springs from COMP Cams have a .750"+ maximum lift and outside diameter of 1.680". Designed for use with Roller cams and created with a new processing Technique for longevity and reliability, they are widely used in Camping World Truck, Dirt Late Model and Sprint Car racing. The Metallurgists at COMP Cams scrutinize every piece of Metal utilized in the creation of Elite Race Valve Springs to make sure they are of unsurpassable quality because fissures within the Metal of standard spring wire, caused by molecular contaminants, are the weakest link in valve spring construction. These fissures appear to be immense under the Scanning Electron Microscope but in fact, are just microns wide. Diminishing the occurrence of these fissures in our valve spring Steel is the COMP Cams standard when selecting materials.
Product Overview
COMP Cams Elite Drag Race Dual Valve Springs are unlike any existing springs on the market. They feature a new proprietary, cutting-edge, progressive pitch coiling process from COMP that greatly improves durability and ensures safe spring life beyond traditional extreme-duty expectations.
The COMP Cams Elite Drag Race Dual Valve Springs are smaller in diameter and feature higher frequencies. These new dual valve springs are coiled with a revolutionarily new process that enhances durability by engineering the outer spring precision to the interface with the inner spring. The Elite Drag Race Dual Valve Springs use a smaller, lighter retainer engineered with a newly developed and specially formulated spring steel. This exclusive design and use of lighter retainers substantially increases the longevity in extreme conditions, such as professional drag racing.
Exclusive clean wire sourcing and precision micro-finishing are standard on every COMP Cams Drag Race Dual Valve Spring. Each individual spring is hand selected and matched with proper tolerance fitment between inner and outer springs.
Product Details
| Amazon ASIN: | B001GBVQKU |
|---|---|
| C.A.R.B. E.O. Number: | N/A |
| C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for On-Road Vehicles?: | Yes |
| C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: | Yes, but must be a race/competition only vehicle. |
| C.A.R.B. Exemption Reason: | No impact on pollution output of vehicle. |
| California Proposition 65: | WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov |
| Camshaft Type: | OEM |
| Coil Bind Height(in): | OEM |
| Coil Bind Height: | 1.184 |
| Compatible .570" Guide Diameter Spring Seats: | 4774-1 |
| Compatible .630" Guide Diameter Spring Seat: | 4775-1 |
| Compatible Retainer: | 733-1 |
| Compatible Shims: | 4757 |
| Compatible Spring Cup (O.D. Locator): | 4702-1 |
| Damper: | Yes |
| Description: | Race Extreme 1.640" OD Dual Spring; 2.050" Installed Height; 1 Spring |
| Inner Spring Inside Diameter: | 0.759 |
| Inside Diameter(in): | 0.769 |
| Installed Height(in): | 2.05 |
| Installed Pressure(lbs): | 245 |
| Number of Springs: | 2 |
| Open Height(in): | 1.25 |
| Open Pressure(lbs): | 693 |
| Outer Spring Inside Diameter: | 1.167 |
| Outer Spring Outside Diameter: | 1.64 |
| Outside Diameter(in): | 1.625 |
| Part Number: | cca26099-1 |
| Position: | N/A |
| Seat Height: | 2.05 |
| Seat Pressure: | 250 |
| Spring Rate(lbs/in): | 561 |
| Spring Rate: | 563 |
| Spring Type: | Double |
| Title: | Race Extreme 1.640" OD Dual Spring; 2.050" Installed Height; 1 Spring |
| Valve Spring Series: | Race Extreme |
Part Type
Engine Valve Spring
Specifications
- Product Attributes - Brand
- COMP Cams
- Product Attributes - Manufacturer's Part Number
- 26099-1
- Product Attributes - Part Type
- Valve Springs
- Product Attributes - Product Line
- COMP Cams Valve Springs
- Product Attributes - UPC
- 036584073024
- Product Attributes - Valve Spring Style
- Standard
- Product Attributes - Number of Springs Per Valve
- Dual
- Product Attributes - Maximum Valve Lift (in.)
- 0.806 in.
- Product Attributes - Retainers Included
- No
- Product Attributes - Outside Diameter of Outer Spring (in.)
- 1.625 in.
- Product Attributes - Coil Bind Height (in.)
- 1.184 in.
- Product Attributes - Damper Spring Included
- Yes
- Product Attributes - Spring Rate (lbs./in.)
- 576 lbs./in.
- Product Attributes - Inside Diameter of Outer Spring (in.)
- 1.175 in.
- Product Attributes - Inside Diameter of Inner Spring (in.)
- 0.769 in.
- Product Attributes - Locks Included
- No
- Product Attributes - Valve Stem Seals Included
- No
- Product Attributes - Valve Springs Coated
- No
- Product Attributes - Remanufactured
- No
- Product Attributes - Quantity
- Sold individually.
Reference Information
| Brand Name/s | Comp Cams |
|---|---|
| StreetFX SKU | cca26099-1 |
| SFX Item ID | 4119531 |
| Supplier Item Code | 4119531 |
| Manufacturer SKU | 26099-1 |
| Manufacturer UPC | 36584073024 |
