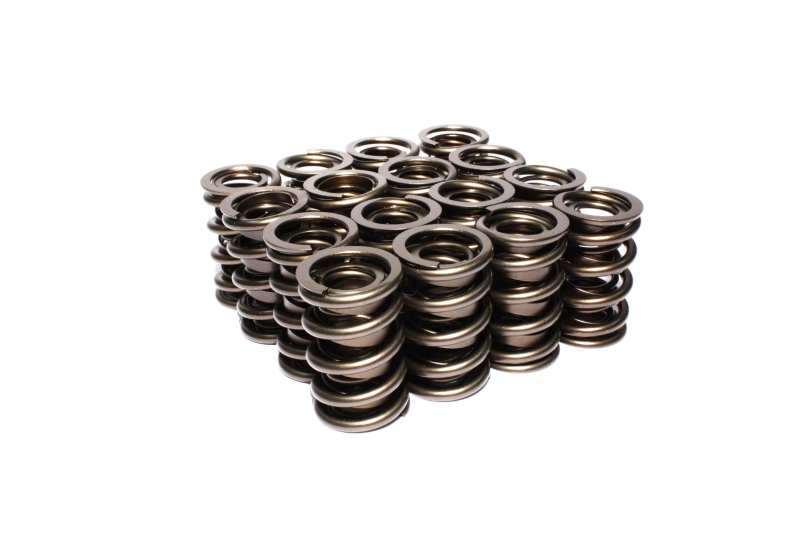

COMP Cams Valve Springs 1.539in Dual W/D
COMP Cams Valve Springs 1.539in Dual W/D
A$1,807.88
Available from MFR.
This item is available from the manufacturer's distribution centre. The dispatch timeframe shown is an estimate based on historical order processing and release times for this part. This item is not held in our own warehouse, and actual dispatch timing may vary depending on manufacturer workload and logistics at the time of ordering.
We accept
Description
COMP Cams' 26097 dual valve springs are a product of innovative design and superior craftsmanship. Engineered with state-of-the-art techniques and premium wire processing, they redefine reliability and consistency in the performance automotive aftermarket. This spring utilizes a progressive pitch coiling process that greatly improves durability and ensures safe spring life beyond traditional extreme-duty applications. The 26097 is purposed for endurance solid roller applications, with up to .800” lift at an installed height of 2.000”. They fit cylinder heads with at least a 1.549" spring pocket. Boasting an open load of over 600 pounds, these valve springs are designed for endurance applications and optimized with newer lobe profiles in mind to achieve higher RPM and higher lift. It is similar to the new 26953 but includes more seat load and installed height for applications where the 26953 is too short. Whether you're seeking improved dynamics, enhanced valve control, or unmatched reliability, we have the valve springs to deliver the perfect solution. Elevate your engine's dependability and confidence on the track with COMP Cams valve springs.
Product Overview
COMP Cams' 26097 dual valve springs are a product of innovative design and superior craftsmanship. Engineered with state-of-the-art techniques and premium wire processing, they redefine reliability and consistency in the performance automotive aftermarket. This spring utilizes a progressive pitch coiling process that greatly improves durability and ensures safe spring life beyond traditional extreme-duty applications. The 26097 is purposed for endurance solid roller applications, with up to .800” lift at an installed height of 2.000”. They fit cylinder heads with at least a 1.549" spring pocket. Boasting an open load of over 600 pounds, these valve springs are designed for endurance applications and optimized with newer lobe profiles in mind to achieve higher RPM and higher lift. It is similar to the new 26953 but includes more seat load and installed height for applications where the 26953 is too short. Whether you're seeking improved dynamics, enhanced valve control, or unmatched reliability, we have the valve springs to deliver the perfect solution. Elevate your engine's dependability and confidence on the track with COMP Cams valve springs.
Product Details
| Amazon ASIN: | B000P596EQ |
|---|---|
| C.A.R.B. E.O. Number: | N/A |
| C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for On-Road Vehicles?: | Yes |
| C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: | Yes, but must be a race/competition only vehicle. |
| C.A.R.B. Exemption Reason: | No impact on pollution output of vehicle. |
| California Proposition 65: | WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov |
| Camshaft Type: | OEM |
| Coil Bind Height(in): | OEM |
| Coil Bind Height: | 1.135 |
| Compatible .570" Guide Diameter Spring Seats: | 4781-16 |
| Compatible .630" Guide Diameter Spring Seats: | 1782-16 |
| Compatible Retainer: | 732-16 |
| Compatible Shims: | 4757 |
| Compatible Spring Cup (O.D. Locator): | 4700-16 |
| Damper: | Yes |
| Description: | Race Endurance 1.551" OD Dual Springs; 2.000" Installed Height; 16 Springs |
| Inner Spring Inside Diameter: | 0.721 |
| Inside Diameter(in): | 0.731 |
| Installed Height(in): | 2 |
| Installed Height: | 2.000 |
| Installed Pressure(lbs): | 195 |
| Load at Installed Height (lbs): | 195 |
| Load at Open Height (lbs): | 597 |
| Maximum Coil Bind Height (in): | 1.135 |
| Number of Springs: | 2 |
| Open Height (in): | 1.200 |
| Open Height(in): | 1.25 |
| Open Pressure(lbs): | 563 |
| Outer Spring Inside Diameter: | 1.117 |
| Outer Spring Outside Diameter: | 1.551 |
| Outside Diameter(in): | 1.539 |
| Part Number: | cca26097-16 |
| Position: | N/A |
| Recommended Max Lift (in): | .800 |
| Seat Height: | 2 |
| Seat Pressure: | 195 |
| Spring Rate(lbs/in): | 502 |
| Spring Rate: | 502 |
| Spring Type: | Double |
| Title: | Race Endurance 1.551" OD Dual Springs; 2.000" Installed Height; 16 Springs |
| Valve Spring Series: | Race Endurance |
Part Type
Engine Valve Spring Kit
Specifications
- Product Attributes - Brand
- COMP Cams
- Product Attributes - Manufacturer's Part Number
- 26097-16
- Product Attributes - Part Type
- Valve Springs
- Product Attributes - Product Line
- COMP Cams Valve Springs
- Product Attributes - UPC
- 036584021391
- Product Attributes - Valve Spring Style
- Standard
- Product Attributes - Number of Springs Per Valve
- Dual
- Product Attributes - Maximum Valve Lift (in.)
- 0.805 in.
- Product Attributes - Retainers Included
- No
- Product Attributes - Outside Diameter of Outer Spring (in.)
- 1.539 in.
- Product Attributes - Coil Bind Height (in.)
- 1.190 in.
- Product Attributes - Damper Spring Included
- Yes
- Product Attributes - Spring Rate (lbs./in.)
- 490 lbs./in.
- Product Attributes - Inside Diameter of Outer Spring (in.)
- 1.125 in.
- Product Attributes - Inside Diameter of Inner Spring (in.)
- 0.731 in.
- Product Attributes - Locks Included
- No
- Product Attributes - Valve Stem Seals Included
- No
- Product Attributes - Valve Springs Coated
- No
- Product Attributes - Remanufactured
- No
- Product Attributes - Quantity
- Sold as a set of 16.
Reference Information
| Brand Name/s | Comp Cams |
|---|---|
| StreetFX SKU | cca26097-16 |
| SFX Item ID | 4119530 |
| Supplier Item Code | 4119530 |
| Manufacturer SKU | 26097-16 |
| Manufacturer UPC | 36584021391 |
| Alternative References | COM26097-16, 1.539in |
