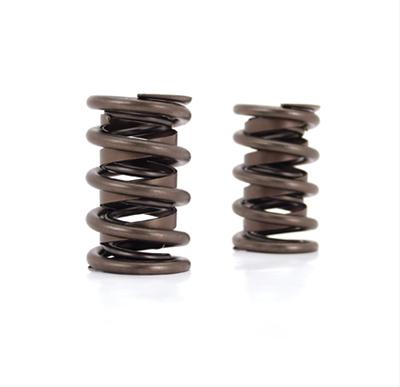

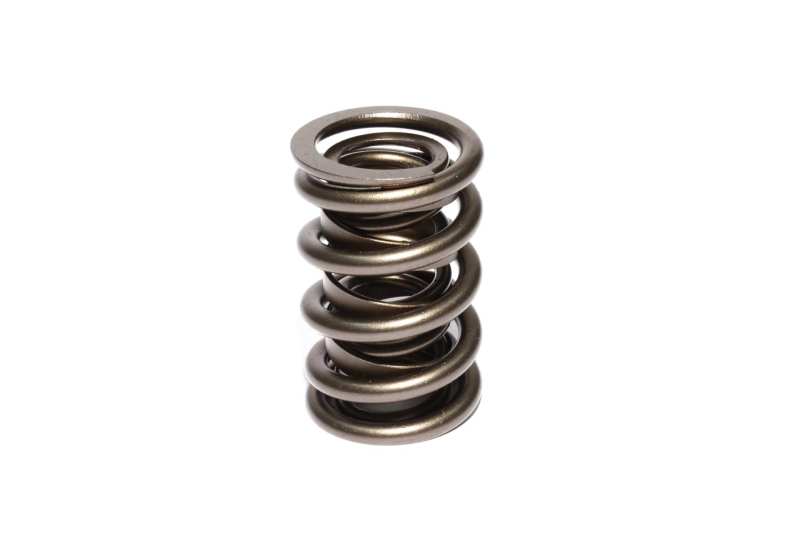

COMP Cams Valve Spring 1.539in Dual W/Da
COMP Cams Valve Spring 1.539in Dual W/Da
A$133.21
Available from MFR.
This item is available from the manufacturer's distribution centre. The dispatch timeframe shown is an estimate based on historical order processing and release times for this part. This item is not held in our own warehouse, and actual dispatch timing may vary depending on manufacturer workload and logistics at the time of ordering.
We accept
Description
Elite Race Double Valve Springs from COMP Cams have a .750"+ maximum lift and outside diameter of 1.680". Engineered with enhanced processing for middle level fatigue resistance and designed to work with Roller cams, they are widely used in Dirt or Asphalt Late Model and Sportsman racing, as well as marine racing. These Elite Race Valve Springs will also work in some high end flat tappet Applications.
Product Overview
COMP Cams Elite Drag Race Dual Valve Springs are unlike any existing springs on the market. They feature a new proprietary, cutting-edge, progressive pitch coiling process from COMP that greatly improves durability and ensures safe spring life beyond traditional extreme-duty expectations.
The COMP Cams Elite Drag Race Dual Valve Springs are smaller in diameter and feature higher frequencies. These new dual valve springs are coiled with a revolutionarily new process that enhances durability by engineering the outer spring precision to the interface with the inner spring. The Elite Drag Race Dual Valve Springs use a smaller, lighter retainer engineered with a newly developed and specially formulated spring steel. This exclusive design and use of lighter retainers substantially increases the longevity in extreme conditions, such as professional drag racing.
Exclusive clean wire sourcing and precision micro-finishing are standard on every COMP Cams Drag Race Dual Valve Spring. Each individual spring is hand selected and matched with proper tolerance fitment between inner and outer springs.
Product Details
| Amazon ASIN: | B001GBTQTI |
|---|---|
| C.A.R.B. E.O. Number: | N/A |
| C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for On-Road Vehicles?: | Yes |
| C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: | Yes, but must be a race/competition only vehicle. |
| C.A.R.B. Exemption Reason: | No impact on pollution output of vehicle. |
| California Proposition 65: | WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov |
| Camshaft Type: | OEM |
| Coil Bind Height(in): | OEM |
| Coil Bind Height: | 1.135 |
| Compatible .570" Guide Diameter Spring Seat: | 4781-1 |
| Compatible .630" Guide Diameter Spring Seat: | 4782-1 |
| Compatible Retainer: | 732-1 |
| Compatible Shims: | 4757 |
| Compatible Spring Cup (O.D. Locator): | 4700-1 |
| Damper: | Yes |
| Description: | Race Endurance 1.551" OD Dual Spring; 2.000" Installed Height; 1 Spring |
| Inner Spring Inside Diameter: | 0.721 |
| Inside Diameter(in): | 0.731 |
| Installed Height(in): | 2 |
| Installed Pressure(lbs): | 195 |
| Number of Springs: | 2 |
| Open Height(in): | 1.25 |
| Open Pressure(lbs): | 563 |
| Outer Spring Inside Diameter: | 1.117 |
| Outer Spring Outside Diameter: | 1.551 |
| Outside Diameter(in): | 1.539 |
| Part Number: | cca26097-1 |
| Position: | N/A |
| Seat Height: | 2 |
| Seat Pressure: | 195 |
| Spring Rate(lbs/in): | 494 |
| Spring Rate: | 502 |
| Spring Type: | Double |
| Title: | Race Endurance 1.551" OD Dual Spring; 2.000" Installed Height; 1 Spring |
| Valve Spring Series: | Race Endurance |
Part Type
Engine Valve Spring
Specifications
- Product Attributes - Brand
- COMP Cams
- Product Attributes - Manufacturer's Part Number
- 26097-1
- Product Attributes - Part Type
- Valve Springs
- Product Attributes - Product Line
- COMP Cams Valve Springs
- Product Attributes - UPC
- 036584021384
- Product Attributes - Valve Spring Style
- Standard
- Product Attributes - Number of Springs Per Valve
- Dual
- Product Attributes - Maximum Valve Lift (in.)
- 0.805 in.
- Product Attributes - Retainers Included
- No
- Product Attributes - Outside Diameter of Outer Spring (in.)
- 1.539 in.
- Product Attributes - Coil Bind Height (in.)
- 1.190 in.
- Product Attributes - Damper Spring Included
- Yes
- Product Attributes - Spring Rate (lbs./in.)
- 490 lbs./in.
- Product Attributes - Inside Diameter of Outer Spring (in.)
- 1.125 in.
- Product Attributes - Inside Diameter of Inner Spring (in.)
- 0.731 in.
- Product Attributes - Locks Included
- No
- Product Attributes - Valve Stem Seals Included
- No
- Product Attributes - Valve Springs Coated
- No
- Product Attributes - Remanufactured
- No
- Product Attributes - Quantity
- Sold individually.
Reference Information
| Brand Name/s | Comp Cams |
|---|---|
| StreetFX SKU | cca26097-1 |
| SFX Item ID | 4119529 |
| Supplier Item Code | 4119529 |
| Manufacturer SKU | 26097-1 |
| Manufacturer UPC | 36584021384 |
| Alternative References | 1.539in |
