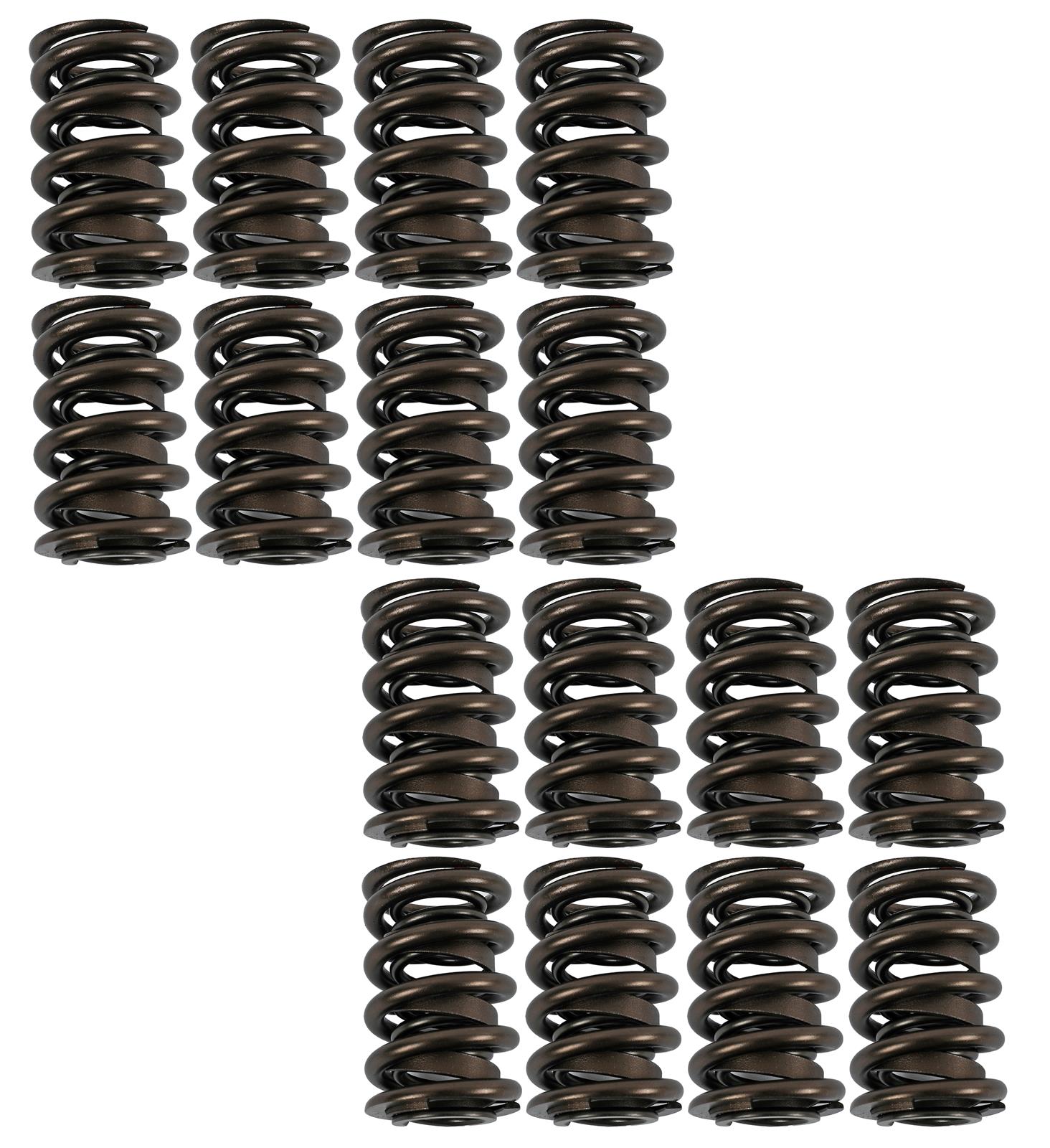

COMP Cams Valve Springs Stock Late Mode
COMP Cams Valve Springs Stock Late Mode
A$707.03
Available from MFR.
This item is available from the manufacturer's distribution centre. The dispatch timeframe shown is an estimate based on historical order processing and release times for this part. This item is not held in our own warehouse, and actual dispatch timing may vary depending on manufacturer workload and logistics at the time of ordering.
We accept
Description
COMP Cams' new 26094 dual valve springs are a product of innovative design and superior craftsmanship. Engineered with state-of-the-art techniques and premium wire, they redefine reliability and consistency in the performance automotive aftermarket. The 26094 is geared towards aggressive solid roller cams with up to .760" lift and race-oriented solid flat tappet setups, with an installed height of 1.950”. They fit cylinder heads with at least a 1.555" spring pocket. Boasting an open load of over 520 pounds, these valve springs are designed for many aggressive street and race applications with exceptional performance and durability.Whether you're seeking improved dynamics, enhanced valve control, or unmatched reliability, we have the valve springs to deliver the perfect solution. Elevate your engine's dependability and confidence on the road or track with COMP Cams valve springs.
Product Overview
COMP Cams' new 26094 dual valve springs are a product of innovative design and superior craftsmanship. Engineered with state-of-the-art techniques and premium wire, they redefine reliability and consistency in the performance automotive aftermarket. The 26094 is geared towards aggressive solid roller cams with up to .760" lift and race-oriented solid flat tappet setups, with an installed height of 1.950”. They fit cylinder heads with at least a 1.555" spring pocket. Boasting an open load of over 520 pounds, these valve springs are designed for many aggressive street and race applications with exceptional performance and durability.Whether you're seeking improved dynamics, enhanced valve control, or unmatched reliability, we have the valve springs to deliver the perfect solution. Elevate your engine's dependability and confidence on the road or track with COMP Cams valve springs.
Product Details
| Amazon ASIN: | B000P5B8WE |
|---|---|
| C.A.R.B. E.O. Number: | N/A |
| C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for On-Road Vehicles?: | Yes |
| C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: | Yes, but must be a race/competition only vehicle. |
| C.A.R.B. Exemption Reason: | No impact on pollution output of vehicle. |
| California Proposition 65: | WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov |
| Camshaft Type: | OEM |
| Coil Bind Height(in): | 1.165 |
| Coil Bind Height: | 1.2 |
| Compatible .570" Guide Diameter Spring Seats: | 4772-16 |
| Compatible .630" Guide Diameter Spring Seats: | 4773-16 |
| Compatible Retainer: | 749-16 |
| Compatible Shims: | 4757 |
| Compatible Spring Cup (O.D. Locator): | 4700-16 |
| Damper: | Yes |
| Description: | Race Endurance 1.564" OD Dual Springs; 1.900" Installed Height; 16 Springs |
| ID of Inner Spring (in): | .812 |
| Inner Spring Inside Diameter: | 0.742 |
| Inside Diameter(in): | 0.752 |
| Installed Height(in): | 1.9 |
| Installed Pressure(lbs): | 176 |
| Load at Installed Height: | 150 |
| Load at Open Height (lbs): | 526 |
| Maximum Coil Bind Height (in): | 1.130 |
| Number of Springs Per Valve: | 2 |
| Number of Springs: | 2 |
| Open Height(in): | 1.3 |
| Open Height: | 1.200 |
| Open Pressure(lbs): | 441 |
| Outer Spring Inside Diameter: | 1.127 |
| Outer Spring Outside Diameter: | 1.564 |
| Outside Diameter(in): | OEM |
| Part Number: | cca26094-16 |
| Position: | N/A |
| Quantity: | 16 |
| Recommended Max Lift (in): | .760 |
| Seat Height: | 1.9 |
| Seat Pressure: | 178 |
| Spring Rate (lbs/in): | 500 |
| Spring Rate(lbs/in): | 445 |
| Spring Rate: | 454 |
| Spring Type: | Double |
| Title: | Race Endurance 1.564" OD Dual Springs; 1.900" Installed Height; 16 Springs |
| Valve Spring Finish: | Raw |
| Valve Spring Series: | Race Endurance |
| Valve Spring Style: | Dual |
Part Type
Engine Valve Spring Kit
Specifications
- Product Attributes - Brand
- COMP Cams
- Product Attributes - Manufacturer's Part Number
- 26094-16
- Product Attributes - Part Type
- Valve Springs
- Product Attributes - Product Line
- COMP Cams Valve Springs
- Product Attributes - UPC
- 036584061816
- Product Attributes - Valve Spring Style
- Standard
- Product Attributes - Number of Springs Per Valve
- Dual
- Product Attributes - Maximum Valve Lift (in.)
- 0.640 in.
- Product Attributes - Retainers Included
- No
- Product Attributes - Outside Diameter of Outer Spring (in.)
- 1.550 in.
- Product Attributes - Coil Bind Height (in.)
- 1.200 in.
- Product Attributes - Damper Spring Included
- Yes
- Product Attributes - Spring Rate (lbs./in.)
- 445 lbs./in.
- Product Attributes - Inside Diameter of Outer Spring (in.)
- 1.130 in.
- Product Attributes - Inside Diameter of Inner Spring (in.)
- 0.752 in.
- Product Attributes - Locks Included
- No
- Product Attributes - Valve Stem Seals Included
- No
- Product Attributes - Valve Springs Coated
- No
- Product Attributes - Remanufactured
- No
- Product Attributes - Quantity
- Sold as a set of 16.
Reference Information
| Brand Name/s | Comp Cams |
|---|---|
| StreetFX SKU | cca26094-16 |
| SFX Item ID | 4119525 |
| Supplier Item Code | 4119525 |
| Manufacturer SKU | 26094-16 |
| Manufacturer UPC | 36584061816 |
| Alternative References | COM26094-16 |
