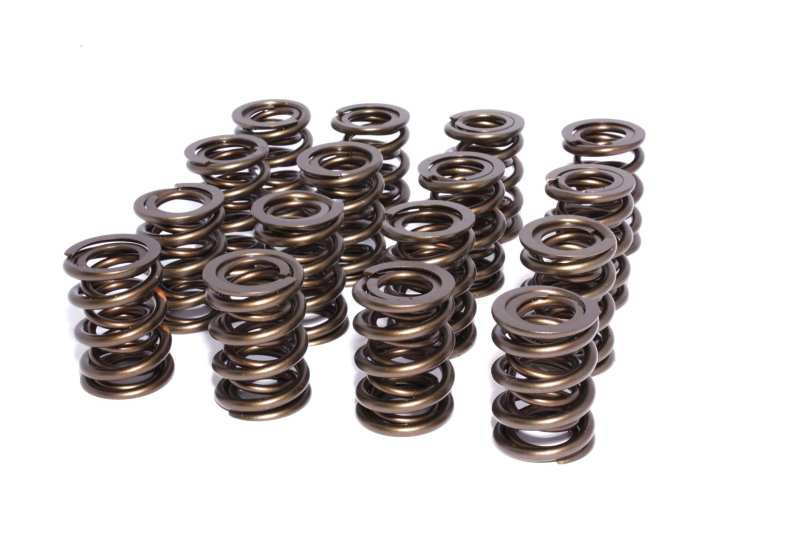

COMP Cams Valve Springs 1.550in Dual
COMP Cams Valve Springs 1.550in Dual
A$939.36
Special Order. Contact for ETA.
This item is out of stock in our warehouse and partner distribution centres. In some cases, this may be due to not having live inventory feeds available for all suppliers. Please contact us before ordering if you need to meet a specific deadline.
We accept
Description
COMP Cams Dual Valve Springs for race applications are manufactured from Super Clean wire and subject to extensive quality control testing to deliver a valve spring assembly with superior strength, durability and valve train stability, no matter the application. The dual spring design creates a stronger valve spring that can easily handle the increased lift found in extreme stress applications. COMP Cams Dual Valve Springs exceed the expectations of today's engine builders and racers.
Product Overview
Dual Valve Springs from COMP Cams are manufactured from Super Clean wire and subject to extensive quality control testing to deliver a valve spring assembly with superior strength, durability and valve train stability, no matter what the application. The dual spring design creates a stronger valve spring that can easily handle the increased lift found in extreme stress applications. COMP Cams Dual Valve Springs exceed the expectations of today’s engine builders and racers.
Product Details
| Amazon ASIN: | B000P5G8RO |
|---|---|
| C.A.R.B. E.O. Number: | N/A |
| C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for On-Road Vehicles?: | Yes |
| C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: | Yes, but must be a race/competition only vehicle. |
| C.A.R.B. Exemption Reason: | No impact on pollution output of vehicle. |
| California Proposition 65: | WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov |
| Camshaft Type: | OEM |
| Coil Bind Height(in): | OEM |
| Coil Bind Height: | 1.23 |
| Compatible .570" Guide Diameter Spring Seats: | 4776-16 |
| Compatible .630" Guide Diameter Spring Seats: | 4777-16 |
| Compatible Retainer: | 731-16 |
| Compatible Shims: | 4757 |
| Compatible Spring Cup (O.D. Locator): | 4700-16 |
| Damper: | No |
| Description: | Race Endurance 1.565" OD Dual Springs; 2.000" Installed Height; 16 Springs |
| Inner Spring Inside Diameter: | 0.803 |
| Inside Diameter(in): | 0.812 |
| Installed Height(in): | 2 |
| Installed Pressure(lbs): | 230 |
| Number of Springs: | 2 |
| Open Height(in): | 1.3 |
| Open Pressure(lbs): | 580 |
| Outer Spring Inside Diameter: | 1.127 |
| Outer Spring Outside Diameter: | 1.565 |
| Outside Diameter(in): | 1.55 |
| Part Number: | cca26089-16 |
| Position: | N/A |
| Seat Height: | 2 |
| Seat Pressure: | 230 |
| Spring Rate(lbs/in): | 500 |
| Spring Rate: | 500 |
| Spring Type: | Double |
| Title: | Race Endurance 1.565" OD Dual Springs; 2.000" Installed Height; 16 Springs |
| Valve Spring Series: | Race Endurance |
Part Type
Engine Valve Spring Kit
Specifications
- Amazon ASIN:
- B000P5G8RO
- C.A.R.B. E.O. Number:
- N/A
- C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?:
- Yes, but must meet tailpipe emission standards for year of vehicle.
- C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?:
- Yes, but must meet tailpipe emission standards for year of vehicle.
- C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?:
- Yes, but must meet tailpipe emission standards for year of vehicle.
- C.A.R.B. Exempt for On-Road Vehicles?:
- Yes
- C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?:
- Yes, but must be a race/competition only vehicle.
- C.A.R.B. Exemption Reason:
- No impact on pollution output of vehicle.
- California Proposition 65:
- WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov
- Camshaft Type:
- OEM
- Coil Bind Height(in):
- OEM
- Coil Bind Height:
- 1.23
- Compatible .570" Guide Diameter Spring Seats:
- 4776-16
- Compatible .630" Guide Diameter Spring Seats:
- 4777-16
- Compatible Retainer:
- 731-16
- Compatible Shims:
- 4757
- Compatible Spring Cup (O.D. Locator):
- 4700-16
- Damper:
- No
- Description:
- Race Endurance 1.565" OD Dual Springs; 2.000" Installed Height; 16 Springs
- Inner Spring Inside Diameter:
- 0.803
- Inside Diameter(in):
- 0.812
- Installed Height(in):
- 2
- Installed Pressure(lbs):
- 230
- Number of Springs:
- 2
- Open Height(in):
- 1.3
- Open Pressure(lbs):
- 580
- Outer Spring Inside Diameter:
- 1.127
- Outer Spring Outside Diameter:
- 1.565
- Outside Diameter(in):
- 1.55
- Part Number:
- cca26089-16
- Position:
- N/A
- Seat Height:
- 2
- Seat Pressure:
- 230
- Spring Rate(lbs/in):
- 500
- Spring Rate:
- 500
- Spring Type:
- Double
- Title:
- Race Endurance 1.565" OD Dual Springs; 2.000" Installed Height; 16 Springs
- Valve Spring Series:
- Race Endurance
Reference Information
| Brand Name/s | Comp Cams |
|---|---|
| StreetFX SKU | cca26089-16 |
| SFX Item ID | 4119523 |
| Supplier Item Code | 4119523 |
| Manufacturer SKU | 26089-16 |
| Manufacturer UPC | 36584061229 |
| Alternative References | 1.550in |
