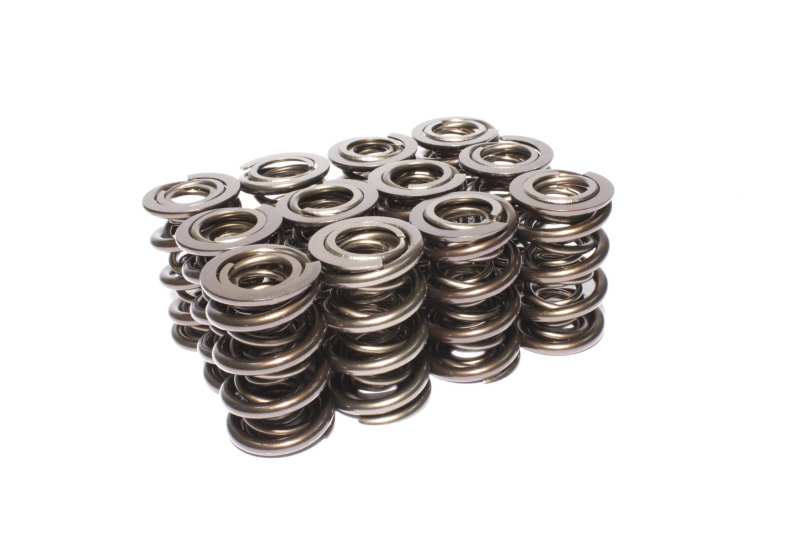

COMP Cams Valve Springs 2.100in Triple D
COMP Cams Valve Springs 2.100in Triple D
A$917.08
Special Order. Contact for ETA.
This item is out of stock in our warehouse and partner distribution centres. In some cases, this may be due to not having live inventory feeds available for all suppliers. Please contact us before ordering if you need to meet a specific deadline.
We accept
Description
Elite Race Triple Valve Springs from COMP Cams have an .800? to .900? maximum lift and outside diameter of 1.680?. Designed for use with roller cams, they are widely used in aggressive and endurance applications such as Competition Eliminator, Super Gas, Super Stock and other Fast Bracket Classes, as well as boat drag and tractor pull applications. The metallurgists at COMP Cams scrutinize every piece of metal utilized in the creation of Elite Race Valve Springs to make sure they are of unsurpassable quality because fissures within the metal of standard spring wire, caused by molecular contaminants, are the weakest link in valve spring construction. These fissures appear to be immense under the Scanning Electron Microscope but in fact, are just microns wide. Diminishing the occurrence of these fissures in our valve spring steel is the COMP Cams standard when selecting materials.
Product Overview
COMP Cams Elite Drag Race Dual Valve Springs are unlike any existing springs on the market. They feature a new proprietary, cutting-edge, progressive pitch coiling process from COMP that greatly improves durability and ensures safe spring life beyond traditional extreme-duty expectations.
The COMP Cams Elite Drag Race Dual Valve Springs are smaller in diameter and feature higher frequencies. These new dual valve springs are coiled with a revolutionarily new process that enhances durability by engineering the outer spring precision to the interface with the inner spring. The Elite Drag Race Dual Valve Springs use a smaller, lighter retainer engineered with a newly developed and specially formulated spring steel. This exclusive design and use of lighter retainers substantially increases the longevity in extreme conditions, such as professional drag racing.
Exclusive clean wire sourcing and precision micro-finishing are standard on every COMP Cams Drag Race Dual Valve Spring. Each individual spring is hand selected and matched with proper tolerance fitment between inner and outer springs.
Product Details
| Camshaft Type: | OEM |
|---|---|
| Coil Bind Height(in): | 1.13 |
| Description: | Race Extreme 1.683" OD Triple Springs; 2.100" Installed Height; 12Springs |
| Inside Diameter(in): | 0.635 |
| Installed Height(in): | 2.1 |
| Installed Pressure(lbs): | 332 |
| Open Height(in): | 1.2 |
| Open Pressure(lbs): | 949 |
| Outside Diameter(in): | 1.645 |
| Part Number: | cca26082-12 |
| Position: | N/A |
| Spring Rate(lbs/in): | 686 |
| Spring Type: | Triple |
| Title: | VALVE SPRINGS, 1.683" TRIPLE D |
Part Type
Engine Valve Spring Kit
Specifications
- Product Attributes - Brand
- COMP Cams
- Product Attributes - Manufacturer's Part Number
- 26082-12
- Product Attributes - Part Type
- Valve Springs
- Product Attributes - Product Line
- COMP Cams Valve Springs
- Product Attributes - UPC
- 036584071266
- Product Attributes - Valve Spring Style
- Standard
- Product Attributes - Number of Springs Per Valve
- Triple
- Product Attributes - Maximum Valve Lift (in.)
- 0.910 in.
- Product Attributes - Retainers Included
- No
- Product Attributes - Outside Diameter of Outer Spring (in.)
- 1.680 in.
- Product Attributes - Coil Bind Height (in.)
- 1.130 in.
- Product Attributes - Damper Spring Included
- No
- Product Attributes - Spring Rate (lbs./in.)
- 686 lbs./in.
- Product Attributes - Inside Diameter of Outer Spring (in.)
- 1.195 in.
- Product Attributes - Inside Diameter of Inner Spring (in.)
- 0.635 in.
- Product Attributes - Locks Included
- No
- Product Attributes - Valve Stem Seals Included
- No
- Product Attributes - Valve Springs Coated
- No
- Product Attributes - Remanufactured
- No
- Product Attributes - Quantity
- Sold as a set of 12.
Reference Information
| Brand Name/s | Comp Cams |
|---|---|
| StreetFX SKU | cca26082-12 |
| SFX Item ID | 4119520 |
| Supplier Item Code | 4119520 |
| Manufacturer SKU | 26082-12 |
| Manufacturer UPC | 36584071266 |
| Alternative References | 2.100in |
