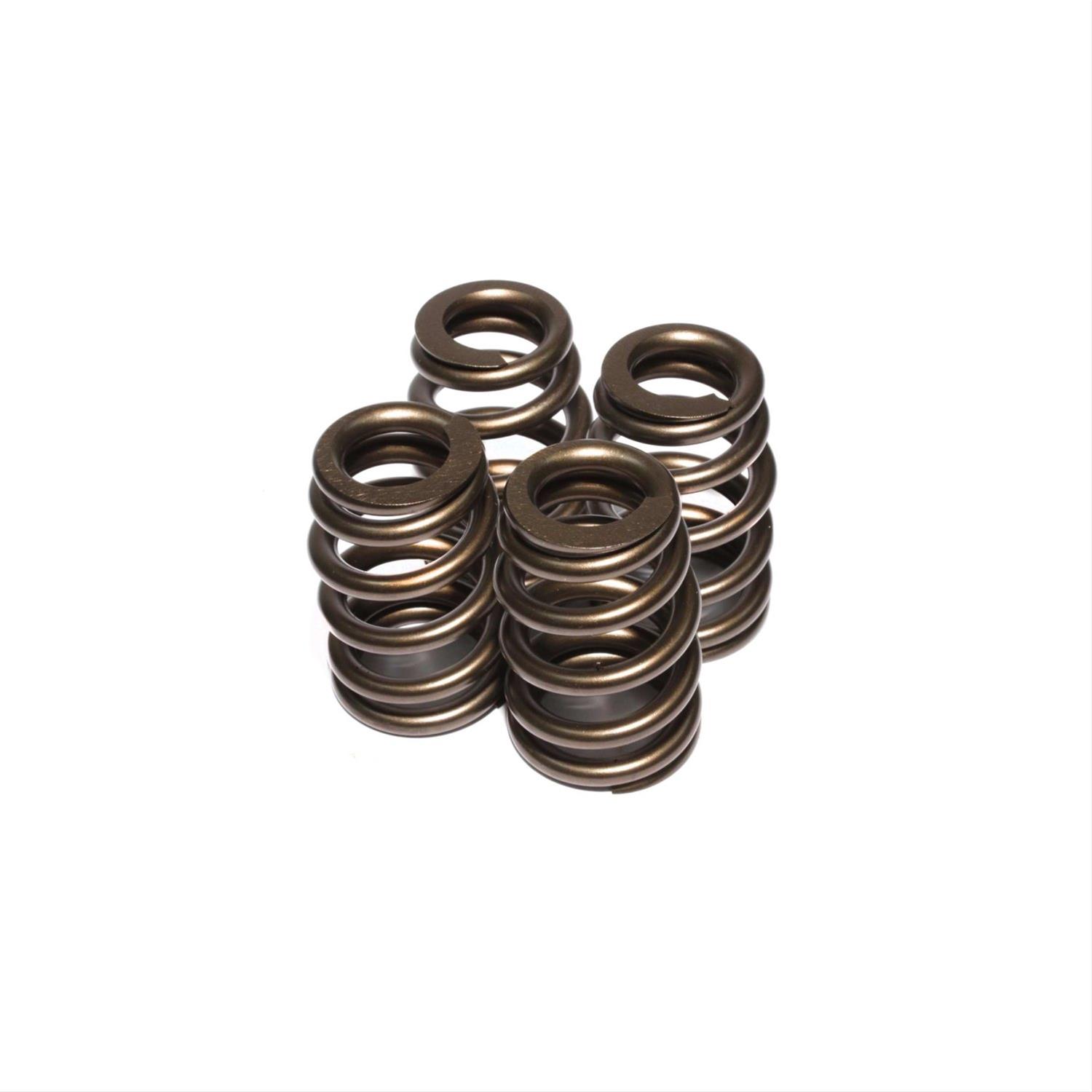

COMP Cams Valve Springs 1.185in Beehive - Set of 4
COMP Cams Valve Springs 1.185in Beehive - Set of 4
A$232.12
Special Order. Contact for ETA.
This item is out of stock in our warehouse and partner distribution centres. In some cases, this may be due to not having live inventory feeds available for all suppliers. Please contact us before ordering if you need to meet a specific deadline.
We accept
Description
reduces the weight of the spring and allows a smaller, lighter retainer. Unique Design Increases Harmonic Resistance, Yielding Greater Spring Stability. Handles valve train stress more efficiently. Increases harmonic resistance for greater stability. Eliminates damaging harmonics. Increases high RPM horsepower and durability.
Product Overview
COMP Cams Beehive Valve Springs deliver increased valve train stability and a much lighter valve train. This is achieved with less spring pressure for better valve control and reduced weight of both the spring and retainer. The unique Beehive shape handles valve train stress more efficiently to eliminate damaging harmonics and increases high RPM horsepower and durability. The oval/multi-arc wire shape places the maximum area of the wire at the point of highest stress to handle valve train stress more efficiently and allow better heat dissipation for longer life. Because of the unique Beehive design, the valve train can handle more RPM and more aggressive cam profiles.
*Performance Street*
COMP Cams Performance Street Valve Springs provide extra stability and endurance. These are the most popular COMP springs for street applications and are used primarily by customers with performance hydraulic flat tappet & hydraulic rollers in mind. COMP technicians will match the proper spring for each customer’s given lift and install height requirements.
*Race/Street*
Race/Street Valve Springs provide extra stability and endurance for most race/street applications. These springs are used by the street customer who has chosen a larger lift cam with race being the primary focus, along with limited street use. COMP technicians will match the proper spring for the customer exploring more race than street driving for larger hydraulic,
hydraulic rollers and some solid flat tappet profiles, given lift and install height requirements.
Product Details
| Camshaft Type: | OEM |
|---|---|
| Coil Bind Height(in): | 1.1 |
| Description: | Race Sportsman 1.454" OD Beehive Springs; 1.800" Installed Height; 4 Springs |
| Inside Diameter(in): | 0.731/1 |
| Installed Height(in): | 1.8 |
| Installed Pressure(lbs): | 160 |
| Open Height(in): | 1.15 |
| Open Pressure(lbs): | 420 |
| Outside Diameter(in): | 1.185/1.454 |
| Part Number: | cca26056-4 |
| Position: | N/A |
| Spring Rate(lbs/in): | 400 |
| Spring Type: | Single |
| Title: | VALVE SPRING,1.454" BEEHIVE |
Part Type
Engine Valve Spring Kit
Specifications
- Product Attributes - Brand
- COMP Cams
- Product Attributes - Manufacturer's Part Number
- 26056-4
- Product Attributes - Part Type
- Valve Springs
- Product Attributes - Product Line
- COMP Cams Valve Springs
- Product Attributes - UPC
- 036584257547
- Product Attributes - Valve Spring Style
- Beehive
- Product Attributes - Number of Springs Per Valve
- Single
- Product Attributes - Maximum Valve Lift (in.)
- 0.640 in.
- Product Attributes - Retainers Included
- No
- Product Attributes - Outside Diameter of Outer Spring (in.)
- 1.185 in./1.454 in.
- Product Attributes - Coil Bind Height (in.)
- 1.100 in.
- Product Attributes - Damper Spring Included
- No
- Product Attributes - Spring Rate (lbs/in.)
- 400 lbs./in.
- Product Attributes - Inside Diameter of Outer Spring (in.)
- 0.731 in.
- Product Attributes - Locks Included
- No
- Product Attributes - Valve Stem Seals Included
- No
- Product Attributes - Valve Springs Coated
- No
- Product Attributes - Remanufactured
- No
- Product Attributes - Quantity
- Sold as a set of 4.
Reference Information
| Brand Name/s | Comp Cams |
|---|---|
| StreetFX SKU | cca26056-4 |
| SFX Item ID | 4117972 |
| Supplier Item Code | 4117972 |
| Manufacturer SKU | 26056-4 |
| Manufacturer UPC | 36584257547 |
| Alternative References | 1.185in |
