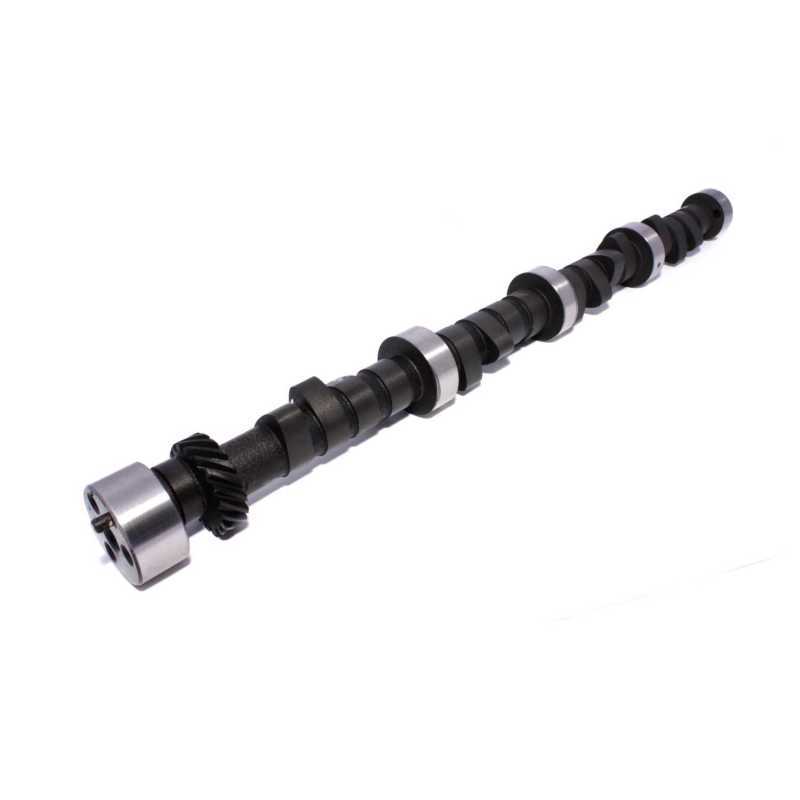

COMP Cams Camshaft CRB3 XE274H-10
COMP Cams Camshaft CRB3 XE274H-10
A$702.12
Available from MFR.
This item is available from the manufacturer's distribution centre. The dispatch timeframe shown is an estimate based on historical order processing and release times for this part. This item is not held in our own warehouse, and actual dispatch timing may vary depending on manufacturer workload and logistics at the time of ordering.
We accept
Description
COMP Cams Xtreme Energy camshafts employ the latest cam technology to provide maximum performance. Whether your use is off-roading, towing, or street performance, there's an Xtreme Energy cam available for you. By using an aggressive lobe profile, these cams provide better throttle response and more top-end horsepower than equivalent cams from other manufacturers—while delivering increased engine vacuum. Hundreds of models are available for fitment on vehicles from 1955 to the present. Select the cam designed for your application.
Product Overview
Chrysler; Dodge; Plymouth; Challenger; Charger; Charger 500; Li' Red Express; Ram; Ramcharger; Cuda; MOPAR; 383; 400; 413; Wedge; 426 Wedge; 426 HEMI; 440; B; RB; Fury; Cuda; Road Runner; GTX; Duster; Coronet; Super Bee; Daytona; Valiant
Product Details
| Description: | Xtreme Energy 274H Hydraulic Flat Camshaft for Chrysler 383-440 |
|---|---|
| Exhaust Duration @ .050 in.: | 236 |
| Exhaust Duration: | 286 |
| Exhaust Valve Lift(in): | 0.491 |
| Intake Duration @ .050 in.: | 230 |
| Intake Duration: | 274 |
| Intake Valve Lift(in): | 0.488 |
| Lifter Type: | Hydraulic Flat Tappet |
| Part Number: | cca23-224-4 |
| RPM Range: | 1000-7000 |
| Title: | Camshaft for Chrysler 383-440(CRB3 XE274H-10) |
| Usage: | Street/Strip |
Additional Information
3-Bolt Series
Application Summary
3-Bolt Camshaft Design - Fits Chrysler B/RB 383, 400, 413, 426 Wedge and 440
Part Type
Engine Camshaft
Specifications
- Product Attributes - Brand
- COMP Cams
- Product Attributes - Manufacturer's Part Number
- 23-224-4
- Product Attributes - Part Type
- Camshafts
- Product Attributes - Product Line
- COMP Cams Xtreme Energy Camshafts
- Product Attributes - UPC
- 036584126508
- Product Attributes - Cam Style
- Hydraulic flat tappet
- Product Attributes - Camshaft Use
- Street/Strip
- Product Attributes - Camshaft Manufacturers Description
- High performance street. Very strong mid-range with headers, 2200+ stall.
- Product Attributes - Basic Operating RPM Range
- 1,800-6,000
- Product Attributes - Intake Duration at 050 inch Lift
- 230
- Product Attributes - Exhaust Duration at 050 inch Lift
- 236
- Product Attributes - Duration at 050 inch Lift
- 230 int./236 exh.
- Product Attributes - Advertised Intake Duration
- 274
- Product Attributes - Advertised Exhaust Duration
- 286
- Product Attributes - Advertised Duration
- 274 int./286 exh.
- Product Attributes - Intake Valve Lift with Factory Rocker Arm Ratio
- 0.488 in.
- Product Attributes - Exhaust Valve Lift with Factory Rocker Arm Ratio
- 0.491 in.
- Product Attributes - Valve Lift with Factory Rocker Arm Ratio
- 0.488 int./0.491 exh.
- Product Attributes - Lobe Separation (degrees)
- 110
- Product Attributes - Camshaft Gear Attachment
- 3-bolt
- Product Attributes - Remanufactured
- No
- Product Attributes - Computer-Controlled Compatible
- No
- Product Attributes - Grind Number
- XE274H
- Product Attributes - Valve Springs Required
- Yes
- Product Attributes - Quantity
- Sold individually.
- Product Attributes - Notes
- 3-bolt style.
Reference Information
| Brand Name/s | Comp Cams |
|---|---|
| StreetFX SKU | cca23-224-4 |
| SFX Item ID | 4119456 |
| Supplier Item Code | 4119456 |
| Manufacturer SKU | 23-224-4 |
| Manufacturer UPC | 36584126508 |
| Alternative References | COM23-224-4, CRB3, XE274H-10 |
Brochures
Compatibility
3-Bolt Camshaft Design - Fits Chrysler B/RB 383, 400, 413, 426 Wedge and 440
