COMP Cams Retainer Tool Steel 10Deg For
COMP Cams Retainer Tool Steel 10Deg For
A$47.43
Available from MFR.
This item is available from the manufacturer's distribution centre. The dispatch timeframe shown is an estimate based on historical order processing and release times for this part. This item is not held in our own warehouse, and actual dispatch timing may vary depending on manufacturer workload and logistics at the time of ordering.
We accept
Description

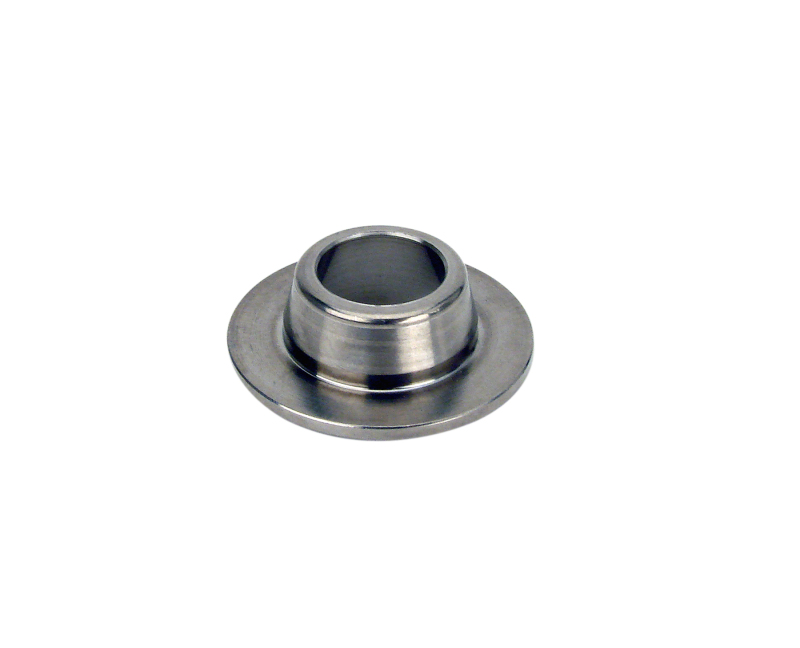

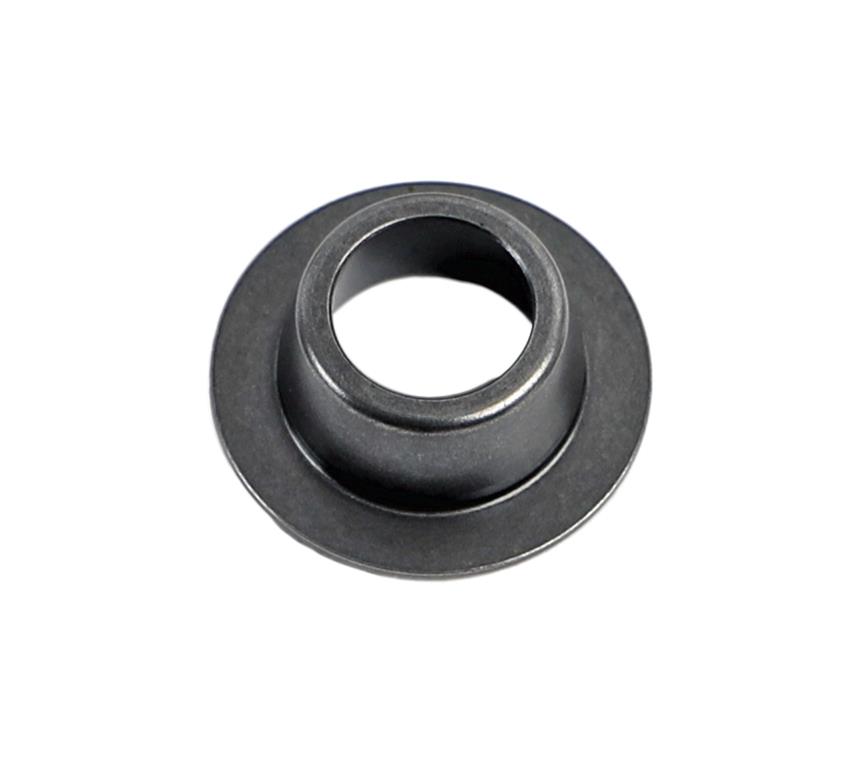

These new lightweight 1.185" spring diameter Tool Steel Retainers from COMP Cams have a 10°
Product Overview
COMP Cams Lightweight Tool Steel Retainers provide the best of all valve train benefits: light weight, along with exceptional strength and wear characteristics. Approximately 33% lighter than conventional chromemoly steel retainers and only 2-4 grams heavier than titanium (depending upon application), they are made from high-grade tool steel, making them able to withstand even the most demanding race applications.
* CNC-machined for consistent quality
* Developed using latest FEA and CAD software
* Spintron-tested to extreme RPM to prove strength is equivalent to titanium and stronger than chromemoly steel
* Designed for both 7° and 10° angles
Product Details
| Amazon ASIN: | B002EE6DZG |
|---|---|
| Angle: | 10° |
| C.A.R.B. E.O. Number: | N/A |
| C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for On-Road Vehicles?: | Yes |
| C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: | Yes, but must be a race/competition only vehicle. |
| C.A.R.B. Exemption Reason: | No impact on pollution output of vehicle. |
| California Proposition 65: | WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov |
| Compatible Lock: | 638-1 |
| Description: | 10 Degree Tool Steel Retainer for All Valves w/ 26056 Springs |
| Diameter 1: | 1.050" |
| Diameter 2: | .725" |
| Diameter 3: | .466" |
| Diameter 4: | N/A |
| Lock Angle: | 10 |
| Part Number: | cca1756-1 |
| Retainer Material: | Tool Steel |
| Spring Diameter: | 1.185" |
| Stem Size: | All |
| Title: | 10 Tool Steel Retainer for All Valves w/ 26056 Springs |
| Valve Spring Diameter: | 1.185 |
| Valve Stem Size: | All |
Part Type
Engine Valve Spring Retainer
Specifications
- Product Attributes - Brand
- COMP Cams
- Product Attributes - Manufacturer's Part Number
- 1756-1
- Product Attributes - Part Type
- Valve Spring Retainers
- Product Attributes - Product Line
- COMP Cams Tool Steel Valve Spring Retainers
- Product Attributes - UPC
- 036584186113
- Product Attributes - Outside Diameter of Outer Spring (in.)
- 1.185 in.
- Product Attributes - Retainer Material
- Tool steel
- Product Attributes - Lock Style
- 10 degree
- Product Attributes - Valve Spring Style
- Beehive
- Product Attributes - Retainer Style
- Standard
- Product Attributes - Number of Springs Per Valve
- Single
- Product Attributes - Inside Diameter of Inner Spring (in.)
- 0.730 in.
- Product Attributes - Locks Included
- No
- Product Attributes - Quantity
- Sold individually.
Reference Information
| Brand Name/s | Comp Cams |
|---|---|
| StreetFX SKU | cca1756-1 |
| SFX Item ID | 4119147 |
| Supplier Item Code | 4119147 |
| Manufacturer SKU | 1756-1 |
| Manufacturer UPC | 36584186113 |
| Alternative References | 10Deg |
