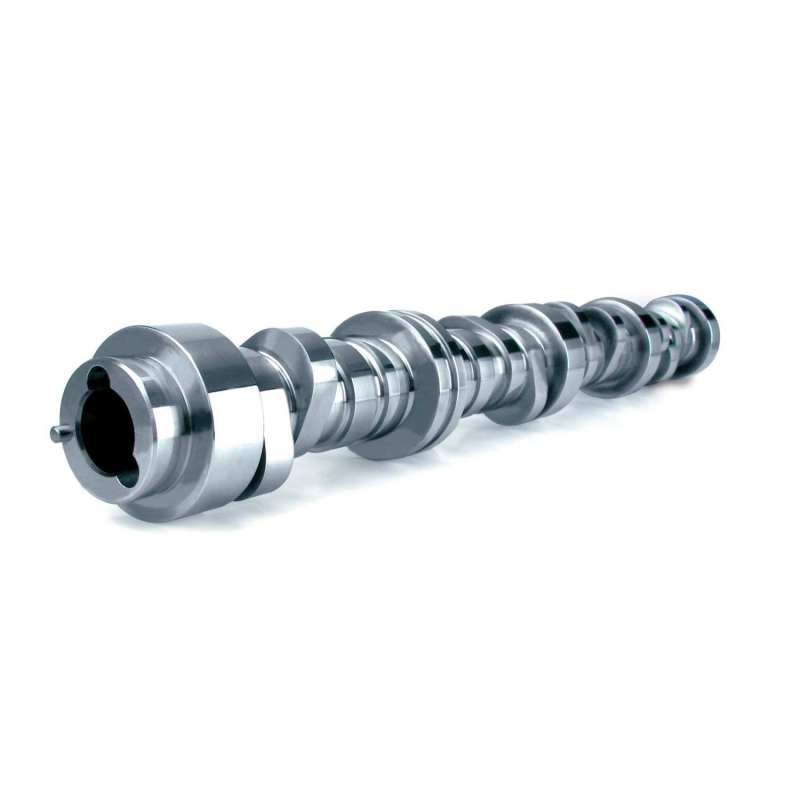

COMP Cams Camshaft GM Gen Iv LS 994 Vvt
COMP Cams Camshaft GM Gen Iv LS 994 Vvt
A$1,259.00
Special Order. Contact for ETA.
This item is out of stock in our warehouse and partner distribution centres. In some cases, this may be due to not having live inventory feeds available for all suppliers. Please contact us before ordering if you need to meet a specific deadline.
We accept
Description
IMPORTANT NOTICE: Must be used with COMP Cams phaser limiter. For use on models with variable valve timing without active fuel management.
XFI RPM HI-Lift 210/224 Hydraulic Roller Cam
Product Overview
Chevrolet: Express 1500 08 - 08 5.3 L Engine, Hummer: H2 08 - 08 6.2 L Engine, GMC: Yukon XL 1500 08 - 08 6.2 L Engine, Chevrolet: Tahoe 08 - 08 6.2 L Engine, Cadillac: Escalade 08 - 08 6.2 L Engine, Cadillac: Escalade EXT 08 - 08 6.2 L Engine, Chevrolet: Silverado 1500 07 - 08 5.3 L Engine, Chevrolet: Avalanche 07 - 08 5.3 L Engine, GMC: Yukon 08 - 08 6.2 L Engine, Chevrolet: Suburban 1500 07 - 08 5.3 L Engine, GMC: Sierra 1500 07 - 08 5.3 L Engine, GMC: Savana 1500 08 - 08 5.3 L Engine, Cadillac: Escalade ESV 08 - 08 6.2 L Engine, GMC: Yukon XL 1500 07 - 08 5.3 L Engine, GMC: Sierra 1500 08 - 08 6.2 L Engine
Product Details
| Advertised Exhaust Duration: | 277 |
|---|---|
| Advertised Intake Duration: | 263 |
| Amazon ASIN: | B005H89QGY |
| Assembly Lubricant Included: | No |
| Basic Operating RPM Range: | 1,300-6,500 |
| C.A.R.B. E.O. Number: | N/A |
| C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for On-Road Vehicles?: | No |
| C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: | Yes, but must be a race/competition only vehicle. |
| C.A.R.B. Exemption Reason: | N/A |
| California Proposition 65: | WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov |
| Cam Type: | Hydraulic Roller |
| Camshaft Gear Attachment: | 1-Bolt |
| Camshaft Material: | Billet Steel |
| Camshaft Series: | XFI RPM Hi-Lift |
| Description: | XFI RPM HI-LIFT 210/224 Hydraulic Roller Cam for GM LS GEN IV |
| Engine Family: | GM LS GEN IV Single-Bolt w/ VVT (12585994) and w/o AFM 8 Cylinder (2007-2008) |
| Exhaust Duration @ .050 in.: | 224 |
| Exhaust Duration at .050 inch Lift: | 224 |
| Exhaust Duration: | 277 |
| Exhaust Valve Lift(in): | 0.568 |
| Exhaust Valve Lift: | 0.568 |
| Grind Number: | 263PHR14 |
| Intake Duration @ .050 in.: | 210 |
| Intake Duration at .050 Inch Lift: | 210 |
| Intake Duration: | 263 |
| Intake Valve Lift(in): | 0.556 |
| Intake Valve Lift: | 0.556 |
| Lifter Type: | Hydraulic Roller |
| Lifters Included: | No |
| Lobe Separation: | 114 |
| Part Number: | cca156-400-13 |
| RPM Range: | 1000-7000 |
| Title: | XFI RPM HI-LIFT 210/224 Hydraulic Roller Cam for GM LS GEN IV |
| Usage: | Street/Performance |
| Valve Springs Required: | Yes |
Application Summary
Chevrolet: Express 1500 08 - 08 5.3 L Engine, Hummer: H2 08 - 08 6.2 L Engine, GMC: Yukon XL 1500 08 - 08 6.2 L Engine, Chevrolet: Tahoe 08 - 08 6.2 L Engine, Cadillac: Escalade 08 - 08 6.2 L Engine, Cadillac: Escalade EXT 08 - 08 6.2 L Engine, Chevrolet: Silverado 1500 07 - 08 5.3 L Engine, Chevrolet: Avalanche 07 - 08 5.3 L Engine, GMC: Yukon 08 - 08 6.2 L Engine, Chevrolet: Suburban 1500 07 - 08 5.3 L Engine, GMC: Sierra 1500 07 - 08 5.3 L Engine, GMC: Savana 1500 08 - 08 5.3 L Engine, Cadillac: Escalade ESV 08 - 08 6.2 L Engine, GMC: Yukon XL 1500 07 - 08 5.3 L Engine, GMC: Sierra 1500 08 - 08 6.2 L Engine
Part Type
Engine Camshaft
Specifications
- Product Attributes - Brand
- COMP Cams
- Product Attributes - Manufacturer's Part Number
- 156-400-13
- Product Attributes - Part Type
- Camshafts
- Product Attributes - Product Line
- COMP Cams XFI SPR GM Gen IV VVT Camshafts
- Product Attributes - UPC
- 036584197553
- Product Attributes - Cam Style
- Hydraulic roller, OE roller
- Product Attributes - Camshaft Use
- Street/Strip
- Product Attributes - Basic Operating RPM Range
- 1,300-6,500
- Product Attributes - Intake Duration at 050 inch Lift
- 210
- Product Attributes - Exhaust Duration at 050 inch Lift
- 224
- Product Attributes - Duration at 050 inch Lift
- 210 int./224 exh.
- Product Attributes - Advertised Intake Duration
- 263
- Product Attributes - Advertised Exhaust Duration
- 277
- Product Attributes - Advertised Duration
- 263 int./277 exh.
- Product Attributes - Intake Valve Lift with Factory Rocker Arm Ratio
- 0.556 in.
- Product Attributes - Exhaust Valve Lift with Factory Rocker Arm Ratio
- 0.568 in.
- Product Attributes - Valve Lift with Factory Rocker Arm Ratio
- 0.556 int./0.568 exh.
- Product Attributes - Lobe Separation (degrees)
- 114
- Product Attributes - Camshaft Gear Attachment
- 1-bolt
- Product Attributes - Remanufactured
- No
- Product Attributes - Computer-Controlled Compatible
- Yes
- Product Attributes - Grind Number
- 263PHR14
- Product Attributes - Valve Springs Required
- Yes
- Product Attributes - Quantity
- Sold individually.
- Product Attributes - Notes
- Must be used with COMP Cams phaser limiter. For use on models with variable valve timing without active fuel management.
Reference Information
| Brand Name/s | Comp Cams |
|---|---|
| StreetFX SKU | cca156-400-13 |
| SFX Item ID | 4119009 |
| Supplier Item Code | 4119009 |
| Manufacturer SKU | 156-400-13 |
| Manufacturer UPC | 36584197553 |
| Alternative References | ls1, ls2, ls3, ls4, ls6, ls7 |
Brochures
Compatibility
Chevrolet: Express 1500 08 - 08 5.3 L Engine, Hummer: H2 08 - 08 6.2 L Engine, GMC: Yukon XL 1500 08 - 08 6.2 L Engine, Chevrolet: Tahoe 08 - 08 6.2 L Engine, Cadillac: Escalade 08 - 08 6.2 L Engine, Cadillac: Escalade EXT 08 - 08 6.2 L Engine, Chevrolet: Silverado 1500 07 - 08 5.3 L Engine, Chevrolet: Avalanche 07 - 08 5.3 L Engine, GMC: Yukon 08 - 08 6.2 L Engine, Chevrolet: Suburban 1500 07 - 08 5.3 L Engine, GMC: Sierra 1500 07 - 08 5.3 L Engine, GMC: Savana 1500 08 - 08 5.3 L Engine, Cadillac: Escalade ESV 08 - 08 6.2 L Engine, GMC: Yukon XL 1500 07 - 08 5.3 L Engine, GMC: Sierra 1500 08 - 08 6.2 L Engine
