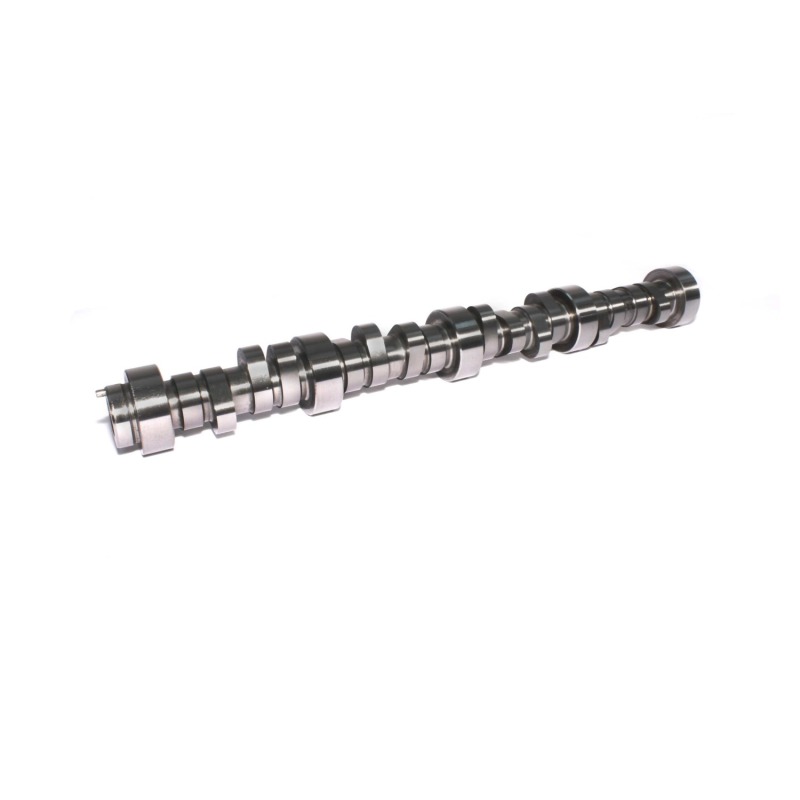

COMP Cams Camshaft GM LS2/LS3 1 Bolt XR
COMP Cams Camshaft GM LS2/LS3 1 Bolt XR
A$1,293.17
LAST ONE! Est Ship 4-7 days.
LAST ONE! This is the last unit at our distribution centre. Contact us if you need more. The ETA is the approximate time required to prepare your order for dispatch.
We accept
Description
XFI 222/234 Hydraulic Roller Cam
Product Overview
Chevrolet: Silverado 2500 06 - 13 4.8 L Engine, Hummer: H3T 09 - 09 5.3 L Engine, Cadillac: CTS 09 - 15 6.2 L Engine, Chevrolet: Silverado 2500 14 - 16 5.3 L Engine, Chevrolet: Colorado 09 - 09 5.3 L Engine, Chevrolet: Camaro 10 - 16 6.2 L Engine, Chevrolet: Express Cargo 10 - 16 6 L Engine, Chevrolet: Suburban 1500 10 - 13 6 L Engine, Chevrolet: Express Pasajeros 10 - 16 6 L Engine, Chevrolet: Silverado 3500 08 - 16 6 L Engine, GMC: Canyon 09 - 09 5.3 L Engine, Chevrolet: SS 14 - 17 6.2 L Engine, Chevrolet: Corvette 07 - 07 6 L Engine, Chevrolet: Corvette 08 - 13 6.2 L Engine, Hummer: H3 08 - 10 5.3 L Engine, Pontiac: G8 09 - 09 6.2 L Engine
Product Details
| Amazon ASIN: | B004QOJ2OQ |
|---|---|
| Assembly Lubricant Included: | No |
| C.A.R.B. E.O. Number: | N/A |
| C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for On-Road Vehicles?: | No |
| C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: | Yes, but must be a race/competition only vehicle. |
| C.A.R.B. Exemption Reason: | N/A |
| California Proposition 65: | WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov |
| Camshaft Gear Attachment: | 1-Bolt |
| Camshaft Material: | Billet Steel |
| Camshaft Series: | XFI |
| Description: | XFI 222/234 Hydraulic Roller Cam for GM GEN IV w/o VVT or AFM |
| Engine Family: | GM LS2/LS3 GEN IV Single-Bolt w/o VVT and AFM 8 Cylinder (2007-2015) |
| Exhaust Duration @ .050 in.: | 234 |
| Exhaust Duration: | 287 |
| Exhaust Valve Lift(in): | 0.576 |
| Grind Number: | XR275HR-13 |
| Intake Duration @ .050 in.: | 222 |
| Intake Duration: | 275 |
| Intake Valve Lift(in): | 0.566 |
| Lifter Type: | Hydraulic Roller |
| Lifters Included: | No |
| Lobe Separation: | 113 |
| Part Number: | cca146-426-11 |
| RPM Range: | 1700-6800 |
| Title: | XFI 222/234 Hydraulic Roller Cam for GM GEN IV w/o VVT or AFM |
| Usage: | Street/Strip |
| Valve Springs Required: | Yes |
Application Summary
Chevrolet: Silverado 2500 06 - 13 4.8 L Engine, Hummer: H3T 09 - 09 5.3 L Engine, Cadillac: CTS 09 - 15 6.2 L Engine, Chevrolet: Silverado 2500 14 - 16 5.3 L Engine, Chevrolet: Colorado 09 - 09 5.3 L Engine, Chevrolet: Camaro 10 - 16 6.2 L Engine, Chevrolet: Express Cargo 10 - 16 6 L Engine, Chevrolet: Suburban 1500 10 - 13 6 L Engine, Chevrolet: Express Pasajeros 10 - 16 6 L Engine, Chevrolet: Silverado 3500 08 - 16 6 L Engine, GMC: Canyon 09 - 09 5.3 L Engine, Chevrolet: SS 14 - 17 6.2 L Engine, Chevrolet: Corvette 07 - 07 6 L Engine, Chevrolet: Corvette 08 - 13 6.2 L Engine, Hummer: H3 08 - 10 5.3 L Engine, Pontiac: G8 09 - 09 6.2 L Engine
Part Type
Engine Camshaft
Specifications
- Product Attributes - Brand
- COMP Cams
- Product Attributes - Manufacturer's Part Number
- 146-426-11
- Product Attributes - Part Type
- Camshafts
- Product Attributes - Product Line
- COMP Cams XFI Hydraulic Roller Camshafts
- Product Attributes - UPC
- 036584197591
- Product Attributes - Cam Style
- Hydraulic roller, OE roller
- Product Attributes - Camshaft Use
- Street/Strip
- Product Attributes - Basic Operating RPM Range
- 1,800-6,800
- Product Attributes - Intake Duration at 050 inch Lift
- 222
- Product Attributes - Exhaust Duration at 050 inch Lift
- 234
- Product Attributes - Duration at 050 inch Lift
- 222 int./234 exh.
- Product Attributes - Advertised Intake Duration
- 275
- Product Attributes - Advertised Exhaust Duration
- 287
- Product Attributes - Advertised Duration
- 275 int./287 exh.
- Product Attributes - Intake Valve Lift with Factory Rocker Arm Ratio
- 0.566 in.
- Product Attributes - Exhaust Valve Lift with Factory Rocker Arm Ratio
- 0.576 in.
- Product Attributes - Valve Lift with Factory Rocker Arm Ratio
- 0.566 int./0.576 exh.
- Product Attributes - Lobe Separation (degrees)
- 113
- Product Attributes - Camshaft Gear Attachment
- 1-bolt
- Product Attributes - Remanufactured
- No
- Product Attributes - Computer-Controlled Compatible
- Yes
- Product Attributes - Grind Number
- XR275HR13
- Product Attributes - Valve Springs Required
- Yes
- Product Attributes - Quantity
- Sold individually.
- Product Attributes - Notes
- For use on models without variable valve timing or active fuel management. Requires engine tuning.
Reference Information
| Brand Name/s | Comp Cams |
|---|---|
| StreetFX SKU | cca146-426-11 |
| SFX Item ID | 4118975 |
| Supplier Item Code | 4118975 |
| Manufacturer SKU | 146-426-11 |
| Manufacturer UPC | 36584197591 |
| Alternative References | ls1;, ls2;, ls3;, ls4;, ls6;, ls7; |
Brochures
Compatibility
Chevrolet: Silverado 2500 06 - 13 4.8 L Engine, Hummer: H3T 09 - 09 5.3 L Engine, Cadillac: CTS 09 - 15 6.2 L Engine, Chevrolet: Silverado 2500 14 - 16 5.3 L Engine, Chevrolet: Colorado 09 - 09 5.3 L Engine, Chevrolet: Camaro 10 - 16 6.2 L Engine, Chevrolet: Express Cargo 10 - 16 6 L Engine, Chevrolet: Suburban 1500 10 - 13 6 L Engine, Chevrolet: Express Pasajeros 10 - 16 6 L Engine, Chevrolet: Silverado 3500 08 - 16 6 L Engine, GMC: Canyon 09 - 09 5.3 L Engine, Chevrolet: SS 14 - 17 6.2 L Engine, Chevrolet: Corvette 07 - 07 6 L Engine, Chevrolet: Corvette 08 - 13 6.2 L Engine, Hummer: H3 08 - 10 5.3 L Engine, Pontiac: G8 09 - 09 6.2 L Engine
