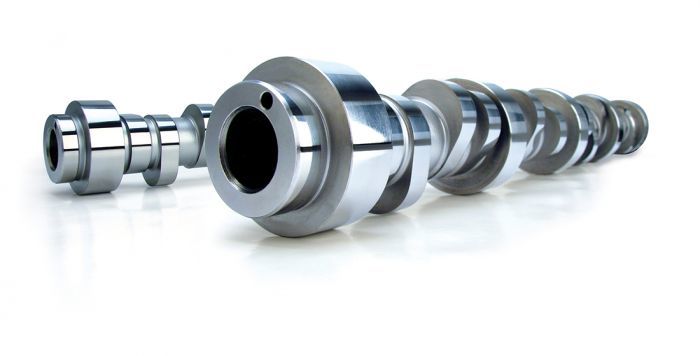

COMP Cams Camshaft GM Gen IV LS2/LS3 1 Bolt FSL Series
COMP Cams Camshaft GM Gen IV LS2/LS3 1 Bolt FSL Series
A$1,478.43
Available from MFR.
This item is available from the manufacturer's distribution centre. The dispatch timeframe shown is an estimate based on historical order processing and release times for this part. This item is not held in our own warehouse, and actual dispatch timing may vary depending on manufacturer workload and logistics at the time of ordering.
We accept
Description
GM LS2/LS3 Gen IV single Bolt without VVT or AFM. Works with stock components and tune, can produce 47+ HP increase in peak power.
Product Overview
Chevrolet: Silverado 2500 06 - 13 4.8 L Engine, Hummer: H3T 09 - 09 5.3 L Engine, Cadillac: CTS 09 - 15 6.2 L Engine, Chevrolet: Silverado 2500 14 - 16 5.3 L Engine, Chevrolet: Colorado 09 - 09 5.3 L Engine, Chevrolet: Camaro 10 - 16 6.2 L Engine, Chevrolet: Express Cargo 10 - 16 6 L Engine, Chevrolet: Suburban 1500 10 - 13 6 L Engine, Chevrolet: Express Pasajeros 10 - 16 6 L Engine, Chevrolet: Silverado 3500 08 - 16 6 L Engine, GMC: Canyon 09 - 09 5.3 L Engine, Chevrolet: SS 14 - 17 6.2 L Engine, Chevrolet: Corvette 07 - 07 6 L Engine, Chevrolet: Corvette 08 - 13 6.2 L Engine, Hummer: H3 08 - 10 5.3 L Engine, Pontiac: G8 09 - 09 6.2 L Engine
Product Details
| Advertised Exhaust Duration: | 274 |
|---|---|
| Advertised Intake Duration: | 264 |
| Amazon ASIN: | N/A |
| Assembly Lubricant Included: | No |
| Basic Operating RPM Range: | 1800-6800 |
| C.A.R.B. E.O. Number: | D-279-12 |
| C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for On-Road Vehicles?: | Yes |
| C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: | Yes, but must be a race/competition only vehicle. |
| C.A.R.B. Exemption Reason: | C.A.R.B. EO Issued |
| California Proposition 65: | WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov |
| Cam Type: | Hydraulic Roller |
| Camshaft Gear Attachment: | Single-Bolt |
| Camshaft Material: | Billet Steel |
| Camshaft Series: | FSL |
| Description: | FSL 210/222 Hydraulic Roller Cam for GM GEN IV LS w/o VVT or AFM |
| Engine Family: | GM GEN IV LS3 Single-Bolt w/o VVT or AFM 8 Cylinder (2007-2015) |
| Exhaust Duration at .050 inch Lift: | 222 |
| Exhaust Valve Lift: | 0.541 |
| Grind Number: | LSAE264 |
| Intake Duration at .050 Inch Lift: | 210 |
| Intake Valve Lift: | 0.541 |
| Lifter Type: | Hydraulic Roller |
| Lifters Included: | No |
| Lobe Separation: | 116 |
| Part Number: | cca146-201-13 |
| Recommended Cam Install Kit: | 5625 |
| Title: | FSL 210/222 Hydraulic Roller Cam for GM GEN IV LS w/o VVT or AFM |
| Usage: | Street Performance |
| Valve Springs Required: | 26906 |
Additional Information
LS2/LS3 Single Bolt
Application Summary
Chevrolet: Silverado 2500 06 - 13 4.8 L Engine, Hummer: H3T 09 - 09 5.3 L Engine, Cadillac: CTS 09 - 15 6.2 L Engine, Chevrolet: Silverado 2500 14 - 16 5.3 L Engine, Chevrolet: Colorado 09 - 09 5.3 L Engine, Chevrolet: Camaro 10 - 16 6.2 L Engine, Chevrolet: Express Cargo 10 - 16 6 L Engine, Chevrolet: Suburban 1500 10 - 13 6 L Engine, Chevrolet: Express Pasajeros 10 - 16 6 L Engine, Chevrolet: Silverado 3500 08 - 16 6 L Engine, GMC: Canyon 09 - 09 5.3 L Engine, Chevrolet: SS 14 - 17 6.2 L Engine, Chevrolet: Corvette 07 - 07 6 L Engine, Chevrolet: Corvette 08 - 13 6.2 L Engine, Hummer: H3 08 - 10 5.3 L Engine, Pontiac: G8 09 - 09 6.2 L Engine
Part Type
Engine Camshaft
Specifications
- Product Attributes - Brand
- COMP Cams
- Product Attributes - Manufacturer's Part Number
- 146-201-13
- Product Attributes - Part Type
- Camshafts
- Product Attributes - Product Line
- COMP Cams FSL Hydraulic Roller Camshafts
- Product Attributes - UPC
- 00036584388968
- Product Attributes - Cam Style
- Hydraulic roller, OE roller
- Product Attributes - Camshaft Use
- Street/Strip
- Product Attributes - Basic Operating RPM Range
- 1,800-6,800
- Product Attributes - Intake Duration at 050 inch Lift
- 210
- Product Attributes - Exhaust Duration at 050 inch Lift
- 222
- Product Attributes - Duration at 050 inch Lift
- 210 int./222 exh.
- Product Attributes - Advertised Intake Duration
- 264
- Product Attributes - Advertised Exhaust Duration
- 274
- Product Attributes - Advertised Duration
- 264 int./274 exh.
- Product Attributes - Intake Valve Lift with Factory Rocker Arm Ratio
- 0.541 in.
- Product Attributes - Exhaust Valve Lift with Factory Rocker Arm Ratio
- 0.541 in.
- Product Attributes - Valve Lift with Factory Rocker Arm Ratio
- 0.541 int./0.541 exh.
- Product Attributes - Lobe Separation (degrees)
- 116
- Product Attributes - Camshaft Gear Attachment
- 1-bolt
- Product Attributes - Remanufactured
- No
- Product Attributes - Computer-Controlled Compatible
- Yes
- Product Attributes - Grind Number
- LSAE264
- Product Attributes - Valve Springs Required
- Yes
- Product Attributes - Quantity
- Sold individually.
- Product Attributes - Special Attention
- For use on LS3 models without variable valve timing and without Active Fuel Management.
- Product Attributes - CARB EO Number(s)
- D-279-13
- Product Attributes - Emissions
- California EO Approved
Reference Information
| Brand Name/s | Comp Cams |
|---|---|
| StreetFX SKU | cca146-201-13 |
| SFX Item ID | 4118032 |
| Supplier Item Code | 4118032 |
| Manufacturer SKU | 146-201-13 |
| Manufacturer UPC | 36584388968 |
| Alternative References | ls1, ls2, ls3, ls4, ls6, ls7 |
Brochures
Compatibility
Chevrolet: Silverado 2500 06 - 13 4.8 L Engine, Hummer: H3T 09 - 09 5.3 L Engine, Cadillac: CTS 09 - 15 6.2 L Engine, Chevrolet: Silverado 2500 14 - 16 5.3 L Engine, Chevrolet: Colorado 09 - 09 5.3 L Engine, Chevrolet: Camaro 10 - 16 6.2 L Engine, Chevrolet: Express Cargo 10 - 16 6 L Engine, Chevrolet: Suburban 1500 10 - 13 6 L Engine, Chevrolet: Express Pasajeros 10 - 16 6 L Engine, Chevrolet: Silverado 3500 08 - 16 6 L Engine, GMC: Canyon 09 - 09 5.3 L Engine, Chevrolet: SS 14 - 17 6.2 L Engine, Chevrolet: Corvette 07 - 07 6 L Engine, Chevrolet: Corvette 08 - 13 6.2 L Engine, Hummer: H3 08 - 10 5.3 L Engine, Pontiac: G8 09 - 09 6.2 L Engine
