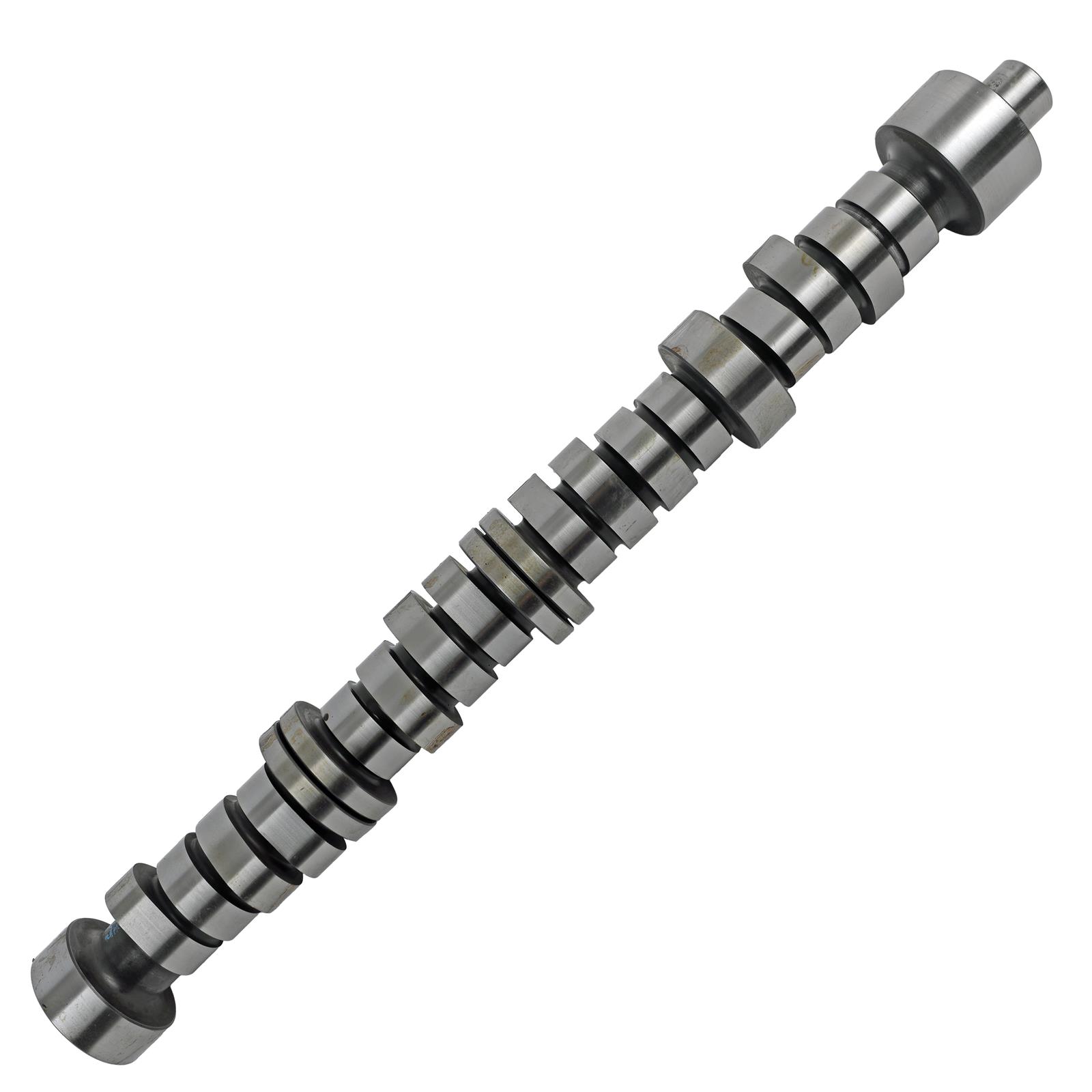

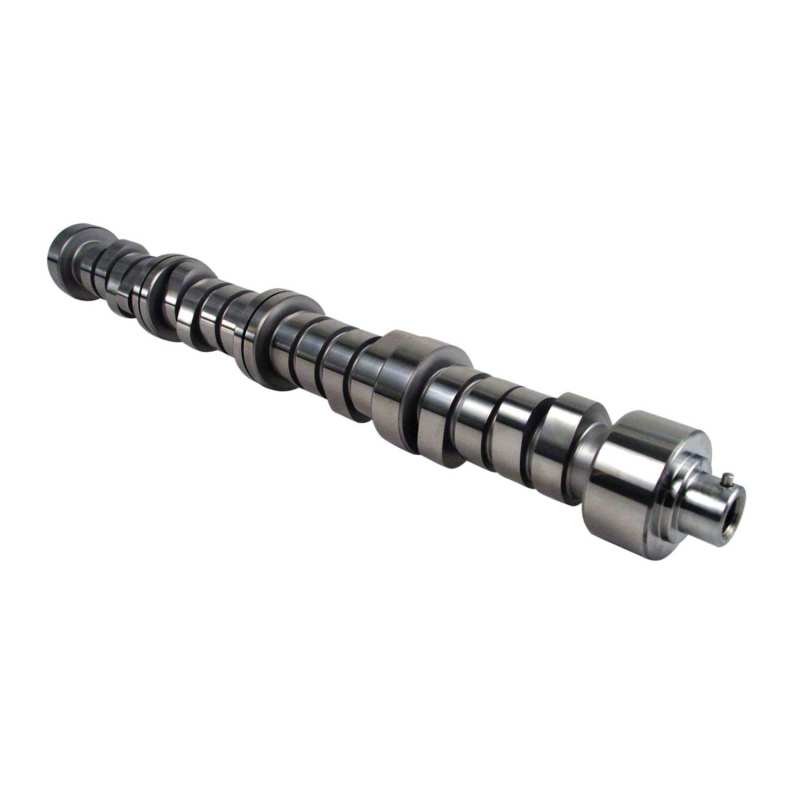

COMP Cams Camshaft GM 6.6L Duramax 270X
COMP Cams Camshaft GM 6.6L Duramax 270X
A$2,093.79
Last Available from MFR.
LAST ONE AVAILABLE from the manufacturer's distribution centre. Once sold, this item may not be immediately available again. The dispatch timeframe shown is an estimate based on historical orders for this part and is dependent on the manufacturer releasing the final available unit.
We accept
Description
Mechanical Roller-Optimized horsepower for heavily modified, street/strip, non-towing, high RPM Applications.
Product Overview
*Tri-Power Xtreme Camshafts*
* Three different camshaft designs targeted to improve horsepower, torque or fuel efficiency
* By decreasing pumping losses, efficiency and performance are enhanced, regardless of camshaft selected
* Designed for factory fuel injected engines; use programmer for best mileage gains
Product Details
| Advertised Exhaust Duration: | 282 |
|---|---|
| Advertised Intake Duration: | 270 |
| Amazon ASIN: | B001GFU9T0 |
| Assembly Lubricant Included: | No |
| Basic Operating RPM Range: | 1,800-4,600 |
| C.A.R.B. E.O. Number: | N/A |
| C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for On-Road Vehicles?: | No |
| C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: | Yes, but must be a race/competition only vehicle. |
| C.A.R.B. Exemption Reason: | N/A |
| California Proposition 65: | WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov |
| Cam Type: | Solid Roller |
| Camshaft Material: | Billet Steel |
| Camshaft Series: | Tri-Power Xtreme |
| Description: | Tri-Power Xtreme 209/216 Solid Roller Cam for GM 6.6L Duramax Diesel |
| Engine Family: | GM 6600/6.6L Duramax Diesel (2000+) |
| Exhaust Duration @ .050 in.: | 216 |
| Exhaust Duration at .050 inch Lift: | 216 |
| Exhaust Duration: | 282 |
| Exhaust Valve Lift(in): | 0.48 |
| Exhaust Valve Lift: | 0.48 |
| Grind Number: | 270XD R109 |
| Intake Duration @ .050 in.: | 209 |
| Intake Duration at .050 Inch Lift: | 209 |
| Intake Duration: | 270 |
| Intake Valve Lift(in): | 0.480 |
| Intake Valve Lift: | 0.48 |
| Lifter Type: | Solid Roller |
| Lifters Included: | No |
| Lobe Separation: | 109 |
| Part Number: | cca132-502-12 |
| RPM Range: | 1000-7000 |
| Title: | Tri-Power Xtreme 209/216 Solid Roller Cam for GM 6.6L Duramax Diesel |
| Usage: | Street/Performance |
| Valve Springs Required: | Yes |
Part Type
Engine Camshaft
Specifications
- Product Attributes - Brand
- COMP Cams
- Product Attributes - Manufacturer's Part Number
- 132-502-12
- Product Attributes - Part Type
- Camshafts
- Product Attributes - Product Line
- COMP Cams Tri-Power Xtreme Camshafts
- Product Attributes - UPC
- 036584124955
- Product Attributes - Cam Style
- Solid roller, OE roller
- Product Attributes - Camshaft Use
- Street/Strip
- Product Attributes - Camshaft Manufacturers Description
- Optimized horsepower for heavily modified, street/strip, non-towing, high RPM applications.
- Product Attributes - Basic Operating RPM Range
- 1,800-4,600
- Product Attributes - Intake Duration at 050 inch Lift
- 209
- Product Attributes - Exhaust Duration at 050 inch Lift
- 216
- Product Attributes - Duration at 050 inch Lift
- 209 int./216 exh.
- Product Attributes - Advertised Intake Duration
- 270
- Product Attributes - Advertised Exhaust Duration
- 282
- Product Attributes - Advertised Duration
- 270 int./282 exh.
- Product Attributes - Intake Valve Lift with Factory Rocker Arm Ratio
- 0.480 in.
- Product Attributes - Exhaust Valve Lift with Factory Rocker Arm Ratio
- 0.480 in.
- Product Attributes - Valve Lift with Factory Rocker Arm Ratio
- 0.480 int./0.480 exh.
- Product Attributes - Lobe Separation (degrees)
- 109
- Product Attributes - Intake Valve Lash
- 0.010 in.
- Product Attributes - Exhaust Valve Lash
- 0.010 in.
- Product Attributes - Remanufactured
- No
- Product Attributes - Computer-Controlled Compatible
- No
- Product Attributes - Grind Number
- 270XD R109
- Product Attributes - Valve Springs Required
- Yes
- Product Attributes - Quantity
- Sold individually.
Reference Information
| Brand Name/s | Comp Cams |
|---|---|
| StreetFX SKU | cca132-502-12 |
| SFX Item ID | 4118917 |
| Supplier Item Code | 4118917 |
| Manufacturer SKU | 132-502-12 |
| Manufacturer UPC | 36584124955 |
| Alternative References | 6.6l, CPC132-502-12, 270X |
