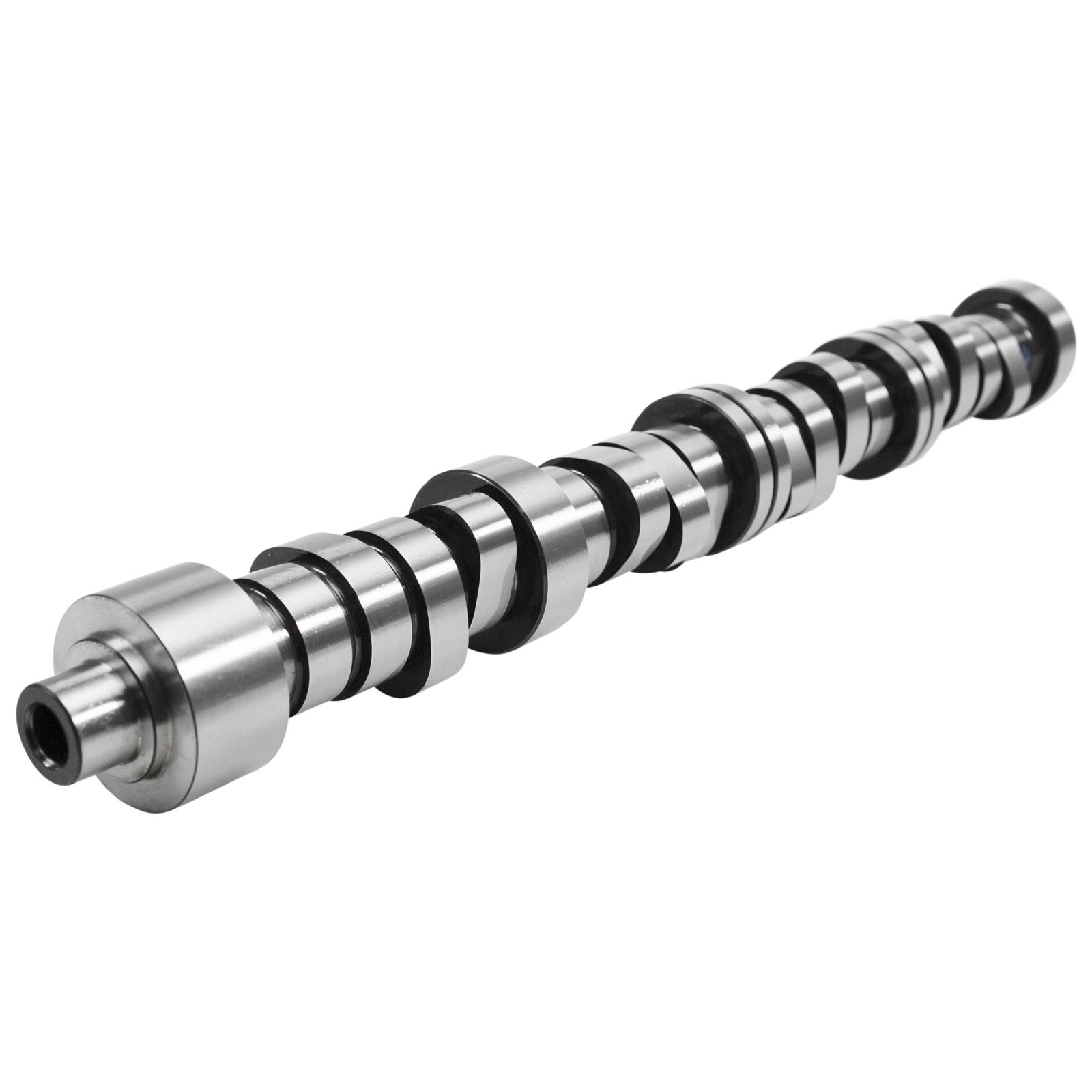

COMP Cams Stage 2 LST 194/208 Solid Roller Camshaft 2000+ GM 6600/6.6L Duramax Diesel
COMP Cams Stage 2 LST 194/208 Solid Roller Camshaft 2000+ GM 6600/6.6L Duramax Diesel
A$2,094.89
Last Available from MFR.
LAST ONE AVAILABLE from the manufacturer's distribution centre. Once sold, this item may not be immediately available again. The dispatch timeframe shown is an estimate based on historical orders for this part and is dependent on the manufacturer releasing the final available unit.
We accept
Description
The LST Camshaft Series uses the newest and most advanced lobe designs from COMP Cams. These new lobes provide the potential for major increases in power and torque in Duramax engines when combined with the appropriate tuning. The “Low Shock Technology” features lobe profiles designed to maximize additional engine airflow, which reduces harmful EGTs, while improving stability at higher RPM. These profiles are also easier on the valve springs, enhancing durability and reducing load loss. Organized into stages that allow you to choose your level of performance, Stage 1 Camshafts are No Springs Required and run well with the factory or a performance tune. Stage 2 and 3 camshafts require a COMP Cams #26125 Beehive Valve Spring Kit upgrade but do produce the greatest potential for additional power and RPM when matched with maximum effort tuning.
Product Overview
The LST Camshaft Series uses the newest and most advanced lobe designs from COMP Cams. These new lobes provide the potential for major increases in power and torque in Duramax engines when combined with the appropriate tuning. The “Low Shock Technology” features lobe profiles designed to maximize additional engine airflow, which reduces harmful EGTs, while improving stability at higher RPM. These profiles are also easier on the valve springs, enhancing durability and reducing load loss. Organized into stages that allow you to choose your level of performance, Stage 1 Camshafts are No Springs Required and run well with the factory or a performance tune. Stage 2 and 3 camshafts require a COMP Cams #26125 Beehive Valve Spring Kit upgrade but do produce the greatest potential for additional power and RPM when matched with maximum effort tuning.
Product Details
| Advertised Exhaust Duration: | 276 |
|---|---|
| Advertised Intake Duration: | 252 |
| Assembly Lubricant Included: | No |
| Basic Operating RPM Range: | 1,200-4,000 |
| Cam Type: | Solid Roller |
| Camshaft Gear Attachment: | 1-Bolt |
| Camshaft Material: | Billet Steel |
| Camshaft Series: | LST |
| Computer Tune Required?: | Yes |
| Description: | LST Stage 2 Solid Roller Camshaft for '01-'16 GM 6600/6.6L Duramax Diesel |
| Engine Family: | 2001-2016 GM 6600/6.6L Duramax Diesel |
| Exhaust Duration at .050 inch Lift: | 208 |
| Exhaust Valve Lash: | 0.014 |
| Exhaust Valve Lift: | 0.475 |
| Grind Number: | 252LST-R107 |
| Intake Duration at .050 Inch Lift: | 194 |
| Intake Valve Lash: | 0.012 |
| Intake Valve Lift: | 0.475 |
| Lifter Style: | Solid Roller |
| Lifters Included: | No |
| Lobe Separation: | 107 |
| Part Number: | cca132-302-13 |
| Recommended Valve Spring Kit: | 26125ACS-KIT/26125BCS-KIT |
| Usage: | Street/Strip |
| Valve Springs Required: | Yes |
Application Summary
2001-2016 GM 6600/6.6L Duramax Diesel
Part Type
Engine Camshaft
Specifications
- Product Attributes - Brand
- COMP Cams
- Product Attributes - Manufacturer's Part Number
- 132-302-13
- Product Attributes - Part Type
- Camshafts
- Product Attributes - Product Line
- COMP Cams LST Series Solid Roller Camshafts
- Product Attributes - UPC
- 036584408611
- Product Attributes - Cam Style
- Solid roller, OE roller
- Product Attributes - Camshaft Use
- Street/Strip
- Product Attributes - Basic Operating RPM Range
- 1,200-4,000
- Product Attributes - Intake Duration at 050 inch Lift
- 194
- Product Attributes - Exhaust Duration at 050 inch Lift
- 208
- Product Attributes - Duration at 050 inch Lift
- 194 int./208 exh.
- Product Attributes - Advertised Intake Duration
- 252
- Product Attributes - Advertised Exhaust Duration
- 276
- Product Attributes - Advertised Duration
- 252 int./276 exh.
- Product Attributes - Intake Valve Lift with Factory Rocker Arm Ratio
- 0.475 in.
- Product Attributes - Exhaust Valve Lift with Factory Rocker Arm Ratio
- 0.475 in.
- Product Attributes - Valve Lift with Factory Rocker Arm Ratio
- 0.475 int./0.475 exh.
- Product Attributes - Lobe Separation (degrees)
- 107
- Product Attributes - Remanufactured
- No
- Product Attributes - Computer-Controlled Compatible
- Yes
- Product Attributes - Valve Springs Required
- No
- Product Attributes - Quantity
- Sold individually.
Reference Information
| Brand Name/s | Comp Cams |
|---|---|
| StreetFX SKU | cca132-302-13 |
| SFX Item ID | 4118118 |
| Supplier Item Code | 4118118 |
| Manufacturer SKU | 132-302-13 |
| Manufacturer UPC | 36584408611 |
| Alternative References | 4x4;, CPC132-302-13, 6600/6.6L |
Brochures
Compatibility
2001-2016 GM 6600/6.6L Duramax Diesel
