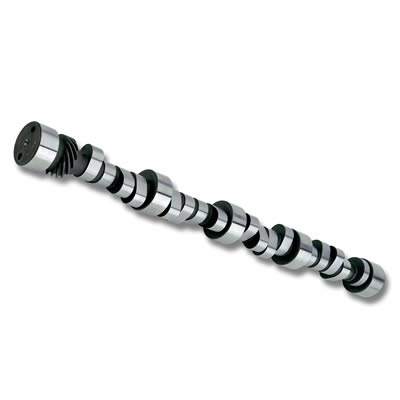

COMP Cams Camshaft CS 22/12 H6
COMP Cams Camshaft CS 22/12 H6
Sale ends in Calculating...
A$722.45
A$805.55
Special Order. Contact for ETA.
This item is out of stock in our warehouse and partner distribution centres. In some cases, this may be due to not having live inventory feeds available for all suppliers. Please contact us before ordering if you need to meet a specific deadline.
We accept
Description
under 10" 1: Cams for '55-'57 engines can be custom ordered. 2: The '87+ Chevy Small Block received provisions for Roller lifters. Most '87 - '93 GM cars came with Roller lifters, but most '87 - '95 trucks came with flat tappet lifters in Roller lifter style blocks. If a Roller Cam is desired and your block has OEM-style Roller Cam provisions. COMP Hydraulic Roller Lifter Install Kit for '87-'90 Blocks or '91-'02 Blocks can be purchased, as well as a '87+ OE-Style Hydraulic Roller Cam.
Product Overview
Fits Chevrolet GEN 1 Small Blocks including the 262, 265, 267, 283, 302, 305, 307, 327, 350 and 400. Does not fit LT1/LT4, or factory roller Small Blocks built from 1985 and newer. GM gradually added roller camshafts to 305's and 350's from the mid 80's forward. Camaros/Firebirds/Corvettes received the roller cams early, but many trucks and SUV's had flat tappet cams until the mid 90's. Remove the intake or timing cover to confirm whether the block is a factory roller or flat tappet. Does not fit the LS1, LS2, LS3 or any LS-based 4.8, 5.3, 5.7, 6.0 and 6.2. 1955-1957 Chevrolet 265 engines require a groove on the 5th cam journal for oiling. Contact us for more information.
Product Details
| Advertised Exhaust Duration: | 306 |
|---|---|
| Advertised Intake Duration: | 300 |
| Amazon ASIN: | B001O05ZK0 |
| Assembly Lubricant Included: | Yes |
| Basic Operating RPM Range: | 3,000-6,000 |
| C.A.R.B. E.O. Number: | N/A |
| C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for On-Road Vehicles?: | No |
| C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: | Yes, but must be a race/competition only vehicle. |
| C.A.R.B. Exemption Reason: | N/A |
| California Proposition 65: | WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov |
| Cam Type: | Hydraulic Flat Tappet |
| Camshaft Gear Attachment: | 3-Bolt |
| Camshaft Material: | Cast Iron |
| Camshaft Series: | Low Lift Oval Track |
| Description: | Low Lift Oval Track 247/255 Hydraulic Flat Cam for Chevrolet Small Block |
| Engine Family: | Chevrolet 262-400 c.i. 8 Cylinder (1958-1998) |
| Exhaust Duration @ .050 in.: | 255 |
| Exhaust Duration at .050 inch Lift: | 255 |
| Exhaust Duration: | 306 |
| Exhaust Valve Lift(in): | 0.399 |
| Exhaust Valve Lift: | 0.399 |
| Grind Number: | 22/12 H-6 |
| Intake Duration @ .050 in.: | 247 |
| Intake Duration at .050 Inch Lift: | 247 |
| Intake Duration: | 300 |
| Intake Valve Lift(in): | 0.399 |
| Intake Valve Lift: | 0.399 |
| Lifter Type: | Hydraulic Flat Tappet |
| Lifters Included: | No |
| Lobe Separation: | 106 |
| Part Number: | cca12-520-5 |
| RPM Range: | 2000-9000 |
| Title: | Low Lift Oval Track 247/255 Hydraulic Flat Cam for Chevrolet Small Block |
| Usage: | Strip |
| Valve Springs Required: | Yes |
Application Summary
Fits Chevrolet GEN 1 Small Blocks including the 262, 265, 267, 283, 302, 305, 307, 327, 350 and 400. Does not fit LT1/LT4, or factory roller Small Blocks built from 1985 and newer. GM gradually added roller camshafts to 305's and 350's from the mid 80's forward. Camaros/Firebirds/Corvettes received the roller cams early, but many trucks and SUV's had flat tappet cams until the mid 90's. Remove the intake or timing cover to confirm whether the block is a factory roller or flat tappet. Does not fit the LS1, LS2, LS3 or any LS-based 4.8, 5.3, 5.7, 6.0 and 6.2. 1955-1957 Chevrolet 265 engines require a groove on the 5th cam journal for oiling. Contact us for more information.
Part Type
Engine Camshaft
Specifications
- Product Attributes - Brand
- COMP Cams
- Product Attributes - Manufacturer's Part Number
- 12-520-5
- Product Attributes - Part Type
- Camshafts
- Product Attributes - Product Line
- COMP Cams Low Lift Oval Track Camshafts
- Product Attributes - UPC
- 036584642398
- Product Attributes - Cam Style
- Hydraulic flat tappet
- Product Attributes - Camshaft Use
- Drag race
- Product Attributes - Basic Operating RPM Range
- 3,000-6,000
- Product Attributes - Intake Duration at 050 inch Lift
- 247
- Product Attributes - Exhaust Duration at 050 inch Lift
- 255
- Product Attributes - Duration at 050 inch Lift
- 247 int./255 exh.
- Product Attributes - Advertised Intake Duration
- 300
- Product Attributes - Advertised Exhaust Duration
- 306
- Product Attributes - Advertised Duration
- 300 int./306 exh.
- Product Attributes - Intake Valve Lift with Factory Rocker Arm Ratio
- 0.399 in.
- Product Attributes - Exhaust Valve Lift with Factory Rocker Arm Ratio
- 0.399 in.
- Product Attributes - Valve Lift with Factory Rocker Arm Ratio
- 0.399 int./0.399 exh.
- Product Attributes - Lobe Separation (degrees)
- 106
- Product Attributes - Remanufactured
- No
- Product Attributes - Computer-Controlled Compatible
- No
- Product Attributes - Grind Number
- CS 22/12 H6
- Product Attributes - Valve Springs Required
- Yes
- Product Attributes - Quantity
- Sold individually.
- Product Attributes - Notes
- Designed for Circle Track classes with 0.400 in. lift rule.
Reference Information
| Brand Name/s | Comp Cams |
|---|---|
| StreetFX SKU | cca12-520-5 |
| SFX Item ID | 4118716 |
| Supplier Item Code | 4118716 |
| Manufacturer SKU | 12-520-5 |
| Manufacturer UPC | 36584642398 |
| Alternative References | l46, l48, l65, lm1, lt-1, l82 |
Brochures
Compatibility
Fits Chevrolet GEN 1 Small Blocks including the 262, 265, 267, 283, 302, 305, 307, 327, 350 and 400. Does not fit LT1/LT4, or factory roller Small Blocks built from 1985 and newer. GM gradually added roller camshafts to 305's and 350's from the mid 80's forward. Camaros/Firebirds/Corvettes received the roller cams early, but many trucks and SUV's had flat tappet cams until the mid 90's. Remove the intake or timing cover to confirm whether the block is a factory roller or flat tappet. Does not fit the LS1, LS2, LS3 or any LS-based 4.8, 5.3, 5.7, 6.0 and 6.2. 1955-1957 Chevrolet 265 engines require a groove on the 5th cam journal for oiling. Contact us for more information.
