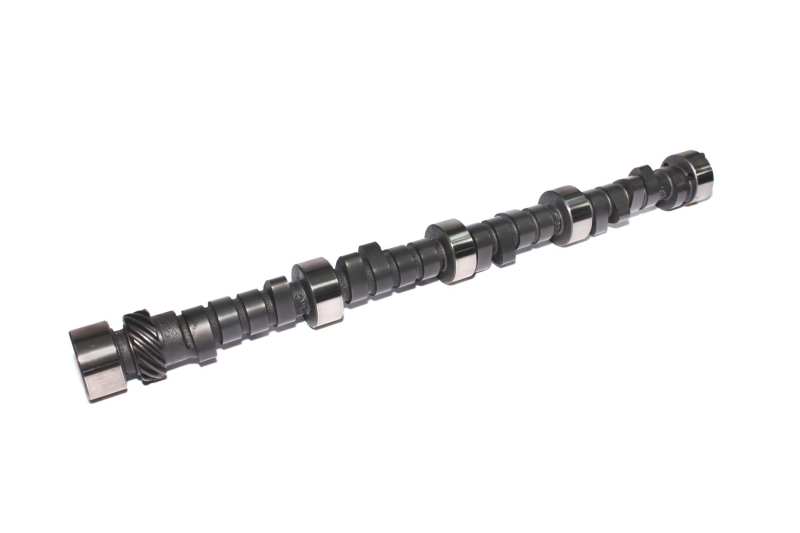

COMP Cams Nitrided Camshaft CS 288Btl-6
COMP Cams Nitrided Camshaft CS 288Btl-6
A$823.93
Special Order. Contact for ETA.
This item is out of stock in our warehouse and partner distribution centres. In some cases, this may be due to not having live inventory feeds available for all suppliers. Please contact us before ordering if you need to meet a specific deadline.
We accept
Description
These tight lash camshafts from COMP Cams are designed for Circle Track and drag racing applications where a tight lash is necessary. These cams produce good torque and power and can handle high, sustained rpm.
Product Overview
Fits Chevrolet GEN 1 Small Blocks including the 262, 265, 267, 283, 302, 305, 307, 327, 350 and 400. Does not fit LT1/LT4, or factory roller Small Blocks built from 1985 and newer. GM gradually added roller camshafts to 305's and 350's from the mid 80's forward. Camaros/Firebirds/Corvettes received the roller cams early, but many trucks and SUV's had flat tappet cams until the mid 90's. Remove the intake or timing cover to confirm whether the block is a factory roller or flat tappet. Does not fit the LS1, LS2, LS3 or any LS-based 4.8, 5.3, 5.7, 6.0 and 6.2. 1955-1957 Chevrolet 265 engines require a groove on the 5th cam journal for oiling. Contact us for more information.
Product Details
| Advertised Exhaust Duration: | 292 |
|---|---|
| Advertised Intake Duration: | 288 |
| Amazon ASIN: | B002EE2B0C |
| Assembly Lubricant Included: | Yes |
| Basic Operating RPM Range: | 3400-7,000 |
| C.A.R.B. E.O. Number: | N/A |
| C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for On-Road Vehicles?: | No |
| C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: | Yes, but must be a race/competition only vehicle. |
| C.A.R.B. Exemption Reason: | N/A |
| California Proposition 65: | WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov |
| Cam Type: | Solid Flat Tappet |
| Camshaft Gear Attachment: | 3-Bolt |
| Camshaft Material: | Nitrided Cast Iron |
| Camshaft Series: | Tight Lash |
| Description: | Tight Lash NIT 259/262 Solid Flat Cam for Chevrolet Small Block |
| Engine Family: | Chevrolet 262-400 c.i. 8 Cylinder (1958-1998) |
| Exhaust Duration @ .050 in.: | 259 |
| Exhaust Duration at .050 inch Lift: | 259 |
| Exhaust Duration: | 292 |
| Exhaust Valve Lift(in): | 0.56 |
| Exhaust Valve Lift: | 0.56 |
| Grind Number: | 288BTL-6 |
| Intake Duration @ .050 in.: | 259 |
| Intake Duration at .050 Inch Lift: | 259 |
| Intake Duration: | 288 |
| Intake Valve Lift(in): | 0.550 |
| Intake Valve Lift: | 0.55 |
| Lifter Type: | Solid Flat Tappet |
| Lifters Included: | No |
| Lobe Separation: | 106 |
| Part Number: | cca12-506-20 |
| RPM Range: | 3400-7200 |
| Title: | Tight Lash NIT 259/262 Solid Flat Cam for Chevrolet Small Block |
| Usage: | Strip |
| Valve Springs Required: | Yes |
Application Summary
Fits Chevrolet GEN 1 Small Blocks including the 262, 265, 267, 283, 302, 305, 307, 327, 350 and 400. Does not fit LT1/LT4, or factory roller Small Blocks built from 1985 and newer. GM gradually added roller camshafts to 305's and 350's from the mid 80's forward. Camaros/Firebirds/Corvettes received the roller cams early, but many trucks and SUV's had flat tappet cams until the mid 90's. Remove the intake or timing cover to confirm whether the block is a factory roller or flat tappet. Does not fit the LS1, LS2, LS3 or any LS-based 4.8, 5.3, 5.7, 6.0 and 6.2. 1955-1957 Chevrolet 265 engines require a groove on the 5th cam journal for oiling. Contact us for more information.
Part Type
Engine Camshaft
Specifications
- Product Attributes - Brand
- COMP Cams
- Product Attributes - Manufacturer's Part Number
- 12-506-20
- Product Attributes - Part Type
- Camshafts
- Product Attributes - Product Line
- COMP Cams Tight Lash Camshafts
- Product Attributes - UPC
- 036584177951
- Product Attributes - Cam Style
- Solid flat tappet
- Product Attributes - Camshaft Use
- Drag race
- Product Attributes - Basic Operating RPM Range
- 3,400-7,000
- Product Attributes - Intake Duration at 050 inch Lift
- 259
- Product Attributes - Exhaust Duration at 050 inch Lift
- 259
- Product Attributes - Duration at 050 inch Lift
- 259 int./259 exh.
- Product Attributes - Advertised Intake Duration
- 288
- Product Attributes - Advertised Exhaust Duration
- 292
- Product Attributes - Advertised Duration
- 288 int./292 exh.
- Product Attributes - Intake Valve Lift with Factory Rocker Arm Ratio
- 0.550 in.
- Product Attributes - Exhaust Valve Lift with Factory Rocker Arm Ratio
- 0.560 in.
- Product Attributes - Valve Lift with Factory Rocker Arm Ratio
- 0.550 int./0.560 exh.
- Product Attributes - Lobe Separation (degrees)
- 106
- Product Attributes - Camshaft Gear Attachment
- 3-bolt
- Product Attributes - Remanufactured
- No
- Product Attributes - Computer-Controlled Compatible
- No
- Product Attributes - Grind Number
- 288BTL-6
- Product Attributes - Valve Springs Required
- Yes
- Product Attributes - Quantity
- Sold individually.
Reference Information
| Brand Name/s | Comp Cams |
|---|---|
| StreetFX SKU | cca12-506-20 |
| SFX Item ID | 4118704 |
| Supplier Item Code | 4118704 |
| Manufacturer SKU | 12-506-20 |
| Manufacturer UPC | 36584177951 |
| Alternative References | l46, l48, l65, lm1, lt-1, l82 |
Brochures
Compatibility
Fits Chevrolet GEN 1 Small Blocks including the 262, 265, 267, 283, 302, 305, 307, 327, 350 and 400. Does not fit LT1/LT4, or factory roller Small Blocks built from 1985 and newer. GM gradually added roller camshafts to 305's and 350's from the mid 80's forward. Camaros/Firebirds/Corvettes received the roller cams early, but many trucks and SUV's had flat tappet cams until the mid 90's. Remove the intake or timing cover to confirm whether the block is a factory roller or flat tappet. Does not fit the LS1, LS2, LS3 or any LS-based 4.8, 5.3, 5.7, 6.0 and 6.2. 1955-1957 Chevrolet 265 engines require a groove on the 5th cam journal for oiling. Contact us for more information.
