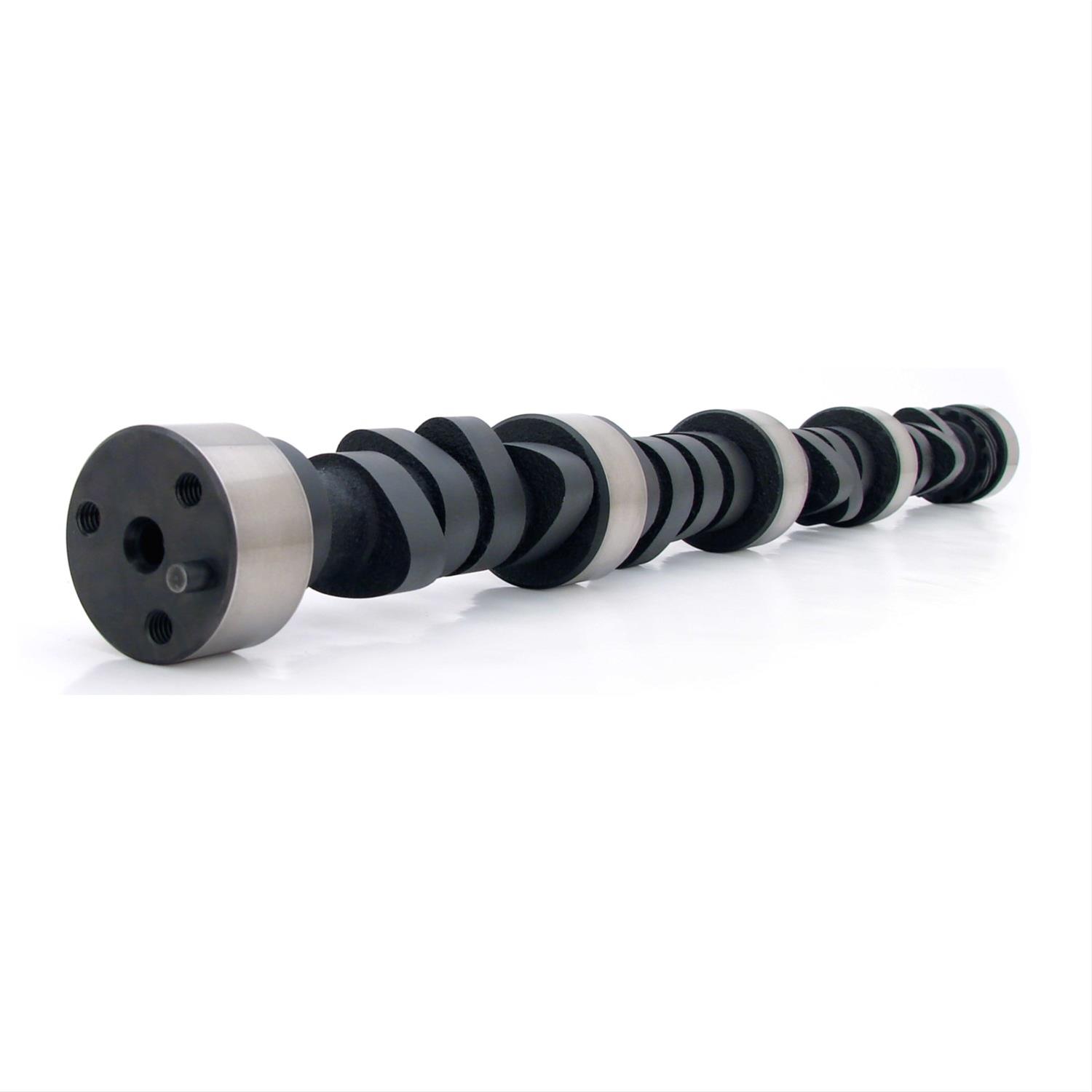

COMP Cams Nitrided Camshaft CS XM 278H
COMP Cams Nitrided Camshaft CS XM 278H
A$972.31
Last Available from MFR.
LAST ONE AVAILABLE from the manufacturer's distribution centre. Once sold, this item may not be immediately available again. The dispatch timeframe shown is an estimate based on historical orders for this part and is dependent on the manufacturer releasing the final available unit.
We accept
Description
COMP Cams Xtreme Marine camshafts take advantage of the newest developments in camshaft engineering. Their aggressive lobe design produces better throttle response and top-end horsepower than other cams with the same duration at .050 in., while delivering increased engine vacuum. These cams are available for everything from pleasure boats to race applications, so you can always enjoy Xtreme performance on the water. From hydraulic and mechanical, to flat and roller tappet, COMP Cams offers camshafts for your watercraft dating as far back as the 1950s.
Product Overview
Fits Chevrolet GEN 1 Small Blocks including the 262, 265, 267, 283, 302, 305, 307, 327, 350 and 400. Does not fit LT1/LT4, or factory roller Small Blocks built from 1985 and newer. GM gradually added roller camshafts to 305's and 350's from the mid 80's forward. Camaros/Firebirds/Corvettes received the roller cams early, but many trucks and SUV's had flat tappet cams until the mid 90's. Remove the intake or timing cover to confirm whether the block is a factory roller or flat tappet. Does not fit the LS1, LS2, LS3 or any LS-based 4.8, 5.3, 5.7, 6.0 and 6.2. 1955-1957 Chevrolet 265 engines require a groove on the 5th cam journal for oiling. Contact us for more information.
Product Details
| Description: | Xtreme Marine 234/244 Nitrided Hydraulic Flat Cam for Chevrolet Small Block |
|---|---|
| Part Number: | cca12-244-20 |
| Title: | 244-20 Nitrided Camshaft (Cs Xm 278H-12) |
Application Summary
Fits Chevrolet GEN 1 Small Blocks including the 262, 265, 267, 283, 302, 305, 307, 327, 350 and 400. Does not fit LT1/LT4, or factory roller Small Blocks built from 1985 and newer. GM gradually added roller camshafts to 305's and 350's from the mid 80's forward. Camaros/Firebirds/Corvettes received the roller cams early, but many trucks and SUV's had flat tappet cams until the mid 90's. Remove the intake or timing cover to confirm whether the block is a factory roller or flat tappet. Does not fit the LS1, LS2, LS3 or any LS-based 4.8, 5.3, 5.7, 6.0 and 6.2. 1955-1957 Chevrolet 265 engines require a groove on the 5th cam journal for oiling. Contact us for more information.
Part Type
Engine Camshaft
Specifications
- Product Attributes - Brand
- COMP Cams
- Product Attributes - Manufacturer's Part Number
- 12-244-20
- Product Attributes - Part Type
- Camshafts
- Product Attributes - Product Line
- COMP Cams Xtreme Marine Camshafts
- Product Attributes - UPC
- 036584191681
- Product Attributes - Cam Style
- Hydraulic flat tappet
- Product Attributes - Camshaft Use
- Marine
- Product Attributes - Basic Operating RPM Range
- 2,000-6,200
- Product Attributes - Intake Duration at 050 inch Lift
- 234
- Product Attributes - Exhaust Duration at 050 inch Lift
- 244
- Product Attributes - Duration at 050 inch Lift
- 234 int./244 exh.
- Product Attributes - Advertised Intake Duration
- 278
- Product Attributes - Advertised Exhaust Duration
- 292
- Product Attributes - Advertised Duration
- 278 int./292 exh.
- Product Attributes - Intake Valve Lift with Factory Rocker Arm Ratio
- 0.498 in.
- Product Attributes - Exhaust Valve Lift with Factory Rocker Arm Ratio
- 0.500 in.
- Product Attributes - Valve Lift with Factory Rocker Arm Ratio
- 0.498 int./0.500 exh.
- Product Attributes - Lobe Separation (degrees)
- 112
- Product Attributes - Camshaft Gear Attachment
- 3-bolt
- Product Attributes - Remanufactured
- No
- Product Attributes - Computer-Controlled Compatible
- No
- Product Attributes - Grind Number
- CS XM 278H-12
- Product Attributes - Valve Springs Required
- Yes
- Product Attributes - Quantity
- Sold individually.
Reference Information
| Brand Name/s | Comp Cams |
|---|---|
| StreetFX SKU | cca12-244-20 |
| SFX Item ID | 4118617 |
| Supplier Item Code | 4118617 |
| Manufacturer SKU | 12-244-20 |
| Manufacturer UPC | 36584191681 |
| Alternative References | l46;, l48;, l65;, lm1;, zq3;, lt1; |
Brochures
Compatibility
Fits Chevrolet GEN 1 Small Blocks including the 262, 265, 267, 283, 302, 305, 307, 327, 350 and 400. Does not fit LT1/LT4, or factory roller Small Blocks built from 1985 and newer. GM gradually added roller camshafts to 305's and 350's from the mid 80's forward. Camaros/Firebirds/Corvettes received the roller cams early, but many trucks and SUV's had flat tappet cams until the mid 90's. Remove the intake or timing cover to confirm whether the block is a factory roller or flat tappet. Does not fit the LS1, LS2, LS3 or any LS-based 4.8, 5.3, 5.7, 6.0 and 6.2. 1955-1957 Chevrolet 265 engines require a groove on the 5th cam journal for oiling. Contact us for more information.
