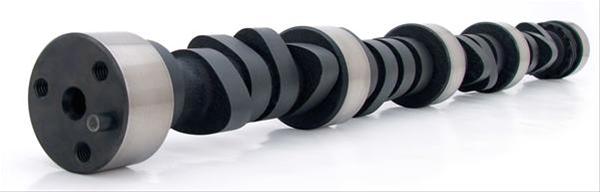

COMP Cams Nitrided Camshaft CB XS274 S
COMP Cams Nitrided Camshaft CB XS274 S
A$923.84
Special Order. Contact for ETA.
This item is out of stock in our warehouse and partner distribution centres. In some cases, this may be due to not having live inventory feeds available for all suppliers. Please contact us before ordering if you need to meet a specific deadline.
We accept
Description
Xtreme Energy NIT 236/242 Solid Flat Cam for Chevy Big Block 396-454 (Nitrided). Very strong mid-range torque and throttle response. 2500+ stall.
Product Overview
*Xtreme Energy Camshafts*
* Quicker opening lobe profiles deliver increased responsiveness & more area under the lift curve
* More vacuum allows an increase in duration for improved performance and assists power brakes
* Excellent performance in street carbureted applications
* Best performance with aftermarket intake manifolds, headers, lower gear ratios, etc.
Product Details
| Advertised Exhaust Duration: | 280 |
|---|---|
| Advertised Intake Duration: | 274 |
| Amazon ASIN: | B002EE0DGQ |
| Assembly Lubricant Included: | Yes |
| Basic Operating RPM Range: | 2,000-6,400 |
| C.A.R.B. E.O. Number: | N/A |
| C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for On-Road Vehicles?: | No |
| C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: | Yes, but must be a race/competition only vehicle. |
| C.A.R.B. Exemption Reason: | N/A |
| California Proposition 65: | WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov |
| Cam Type: | Solid Flat Tappet |
| Camshaft Gear Attachment: | 3-Bolt |
| Camshaft Material: | Nitrided Cast Iron |
| Camshaft Series: | Xtreme Energy |
| Description: | Xtreme Energy NIT 236/242 Solid Flat Cam for Chevrolet Big Block 396-454 |
| Engine Family: | Chevrolet 396-454 c.i. 8 Cylinder (1967-1996) |
| Exhaust Duration @ .050 in.: | 242 |
| Exhaust Duration at .050 inch Lift: | 242 |
| Exhaust Duration: | 280 |
| Exhaust Valve Lift(in): | 0.578 |
| Exhaust Valve Lift: | 0.578 |
| Grind Number: | XS274S |
| Intake Duration @ .050 in.: | 236 |
| Intake Duration at .050 Inch Lift: | 236 |
| Intake Duration: | 274 |
| Intake Valve Lift(in): | 0.568 |
| Intake Valve Lift: | 0.568 |
| Lifter Type: | Solid Flat Tappet |
| Lifters Included: | No |
| Lobe Separation: | 110 |
| Part Number: | cca11-677-20 |
| RPM Range: | 2000-7000 |
| Title: | Xtreme Energy NIT 236/242 Solid Flat Cam for Chevrolet Big Block 396-454 |
| Usage: | Street/Strip |
| Valve Springs Required: | Yes |
Application Summary
Chevrolet GEN IV 396-454 Big Block Engines Originally Equipped with Flat Tappet Camshafts
Part Type
Engine Camshaft
Specifications
- Product Attributes - Brand
- COMP Cams
- Product Attributes - Manufacturer's Part Number
- 11-677-20
- Product Attributes - Part Type
- Camshafts
- Product Attributes - Product Line
- COMP Cams Xtreme Energy Pro-Plasma Nitrided Camshafts
- Product Attributes - UPC
- 036584177876
- Product Attributes - Cam Style
- Solid flat tappet
- Product Attributes - Camshaft Use
- Street/Strip
- Product Attributes - Camshaft Manufacturers Description
- Very strong mid-range torque and throttle response, 2500+ stall.
- Product Attributes - Basic Operating RPM Range
- 2,000-6,400
- Product Attributes - Intake Duration at 050 inch Lift
- 236
- Product Attributes - Exhaust Duration at 050 inch Lift
- 242
- Product Attributes - Duration at 050 inch Lift
- 236 int./242 exh.
- Product Attributes - Advertised Intake Duration
- 274
- Product Attributes - Advertised Exhaust Duration
- 280
- Product Attributes - Advertised Duration
- 274 int./280 exh.
- Product Attributes - Intake Valve Lift with Factory Rocker Arm Ratio
- 0.568 in.
- Product Attributes - Exhaust Valve Lift with Factory Rocker Arm Ratio
- 0.578 in.
- Product Attributes - Valve Lift with Factory Rocker Arm Ratio
- 0.568 int./0.578 exh.
- Product Attributes - Lobe Separation (degrees)
- 110
- Product Attributes - Camshaft Gear Attachment
- 3-bolt
- Product Attributes - Intake Valve Lash
- 0.016 in.
- Product Attributes - Exhaust Valve Lash
- 0.016 in.
- Product Attributes - Remanufactured
- No
- Product Attributes - Computer-Controlled Compatible
- No
- Product Attributes - Grind Number
- XS274S
- Product Attributes - Valve Springs Required
- Yes
- Product Attributes - Quantity
- Sold individually.
Reference Information
| Brand Name/s | Comp Cams |
|---|---|
| StreetFX SKU | cca11-677-20 |
| SFX Item ID | 4118498 |
| Supplier Item Code | 4118498 |
| Manufacturer SKU | 11-677-20 |
| Manufacturer UPC | 36584177876 |
| Alternative References | c10, s10, XS274 |
Brochures
Compatibility
Chevrolet GEN IV 396-454 Big Block Engines Originally Equipped with Flat Tappet Camshafts
