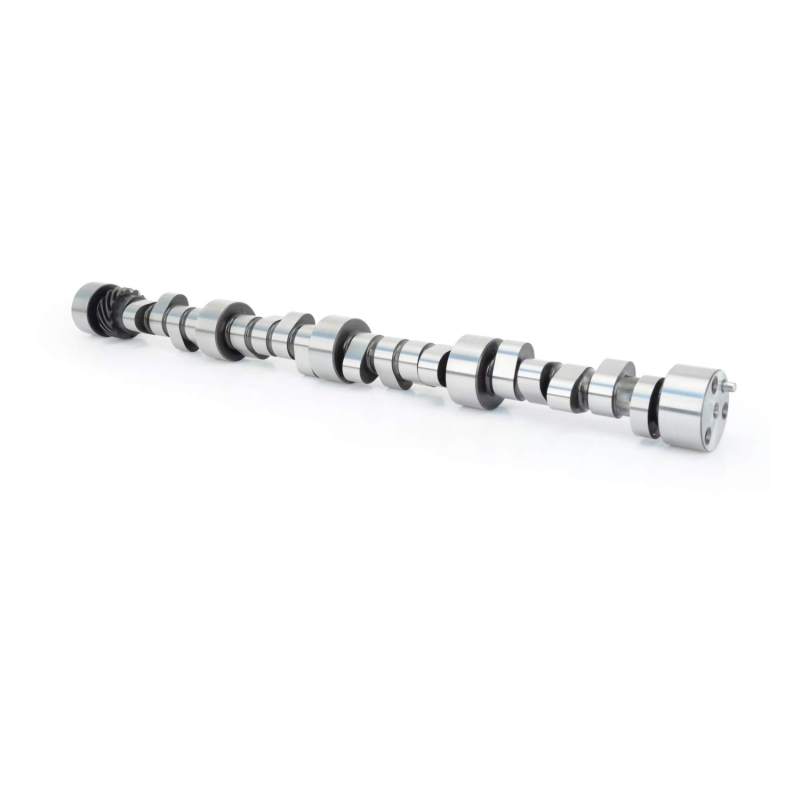

COMP Cams Camshaft CB 293Qio10
COMP Cams Camshaft CB 293Qio10
A$1,479.20
Available from MFR.
This item is available from the manufacturer's distribution centre. The dispatch timeframe shown is an estimate based on historical order processing and release times for this part. This item is not held in our own warehouse, and actual dispatch timing may vary depending on manufacturer workload and logistics at the time of ordering.
We accept
Description
Hydraulic Roller: 4-Pattern 293QIO10 - Great in street/strip 454-502c.i.d. engines with good heads and 9.5:1+ compression: 3000+ Stall or manual transmissions.
Product Overview
*4-Pattern Camshafts*
* Optimize valve events based on runner length
* Feature a large increase in both area under the curve and stability at high RPM
* Feature four lobe patterns; one intake & exhaust design for outboard runners and another intake & exhaust design for inboard runners
* Technology developed and race-proven in NASCAR
Product Details
| Advertised Inboard Exhaust Duration: | 305 |
|---|---|
| Advertised Inboard Intake Duration: | 293 |
| Advertised Outboard Exhaust Duration: | 307 |
| Advertised Outboard Intake Duration: | 295 |
| Amazon ASIN: | B00CWZVVGS |
| Assembly Lubricant Included: | No |
| Basic Operating RPM Range: | 2900-7,200 |
| C.A.R.B. E.O. Number: | N/A |
| C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for On-Road Vehicles?: | No |
| C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: | Yes, but must be a race/competition only vehicle. |
| C.A.R.B. Exemption Reason: | N/A |
| California Proposition 65: | WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov |
| Cam Type: | Hydraulic Roller |
| Camshaft Gear Attachment: | 3-Bolt |
| Camshaft Material: | Billet Steel |
| Camshaft Series: | 4-Pattern |
| Description: | 4-Pattern 241/251 IB 243/253 OB Hydraulic Roller Cam Chevrolet Big Block 396-454 |
| Engine Family: | Chevrolet 396-454 c.i. 8 Cylinder (1967-1996) |
| Exhaust Duration @ .050 in.: | 253 |
| Exhaust Duration: | 307 |
| Exhaust Valve Lift(in): | 0.661 |
| Grind Number: | 293QIO10 |
| Inboard Exhaust Duration at .050 inch Lift: | 251 |
| Inboard Exhaust Valve Lift: | 0.661 |
| Inboard Intake Duration at .050 Inch Lift: | 241 |
| Inboard Intake Valve Lift: | 0.677 |
| Intake Duration @ .050 in.: | 243 |
| Intake Duration: | 295 |
| Intake Valve Lift(in): | 0.678 |
| Lifter Type: | Hydraulic Roller |
| Lifters Included: | No |
| Outboard Exhaust Duration at .050 inch Lift: | 253 |
| Outboard Exhaust Valve Lift: | 0.661 |
| Outboard Intake Duration at .050 Inch Lift: | 243 |
| Outboard Intake Valve Lift: | 0.678 |
| Part Number: | cca11-616-44 |
| RPM Range: | 2900-7200 |
| Title: | 4-Pattern 241/251 IB 243/253 OB Hydraulic Roller Cam Chevrolet Big Block 396-454 |
| Usage: | Street/Performance |
| Valve Springs Required: | Yes |
Application Summary
Chevrolet GEN IV 396-454 Big Block Engines Originally Equipped with Flat Tappet Camshafts
Part Type
Engine Camshaft
Specifications
- Product Attributes - Brand
- COMP Cams
- Product Attributes - Manufacturer's Part Number
- 11-616-44
- Product Attributes - Part Type
- Camshafts
- Product Attributes - Product Line
- COMP Cams 4-Pattern Hydraulic Roller Camshafts
- Product Attributes - UPC
- 036584259701
- Product Attributes - Cam Style
- Hydraulic roller, Retro-fit
- Product Attributes - Camshaft Use
- Street/Strip
- Product Attributes - Camshaft Manufacturers Description
- Great in street/strip 454-502 cubic inch engines with good heads and 9.5:1+ compression, 3,000+ stall or manual transmissions.
- Product Attributes - Basic Operating RPM Range
- 2,900-7,200
- Product Attributes - Intake Duration at 050 inch Lift
- 243/241
- Product Attributes - Exhaust Duration at 050 inch Lift
- 253/251
- Product Attributes - Duration at 050 inch Lift
- 243 int./253 exh., 241 int./251 exh.
- Product Attributes - Advertised Intake Duration
- 295/293
- Product Attributes - Advertised Exhaust Duration
- 307/305
- Product Attributes - Advertised Duration
- 295 int./307 exh., 293 int./305 exh.
- Product Attributes - Intake Valve Lift with Factory Rocker Arm Ratio
- 0.678 in./0.677 in.
- Product Attributes - Exhaust Valve Lift with Factory Rocker Arm Ratio
- 0.661 in./0.661 in.
- Product Attributes - Valve Lift with Factory Rocker Arm Ratio
- 0.678 int./0.661 exh., 0.677 int./0.661 exh.
- Product Attributes - Lobe Separation (degrees)
- 110
- Product Attributes - Camshaft Gear Attachment
- 3-bolt
- Product Attributes - Remanufactured
- No
- Product Attributes - Computer-Controlled Compatible
- No
- Product Attributes - Grind Number
- 293QIO10
- Product Attributes - Valve Springs Required
- Yes
- Product Attributes - Quantity
- Sold individually.
Reference Information
| Brand Name/s | Comp Cams |
|---|---|
| StreetFX SKU | cca11-616-44 |
| SFX Item ID | 4118485 |
| Supplier Item Code | 4118485 |
| Manufacturer SKU | 11-616-44 |
| Manufacturer UPC | 36584259701 |
| Alternative References | c10, s10, COM11-616-44, 293Qio10 |
Brochures
Compatibility
Chevrolet GEN IV 396-454 Big Block Engines Originally Equipped with Flat Tappet Camshafts
