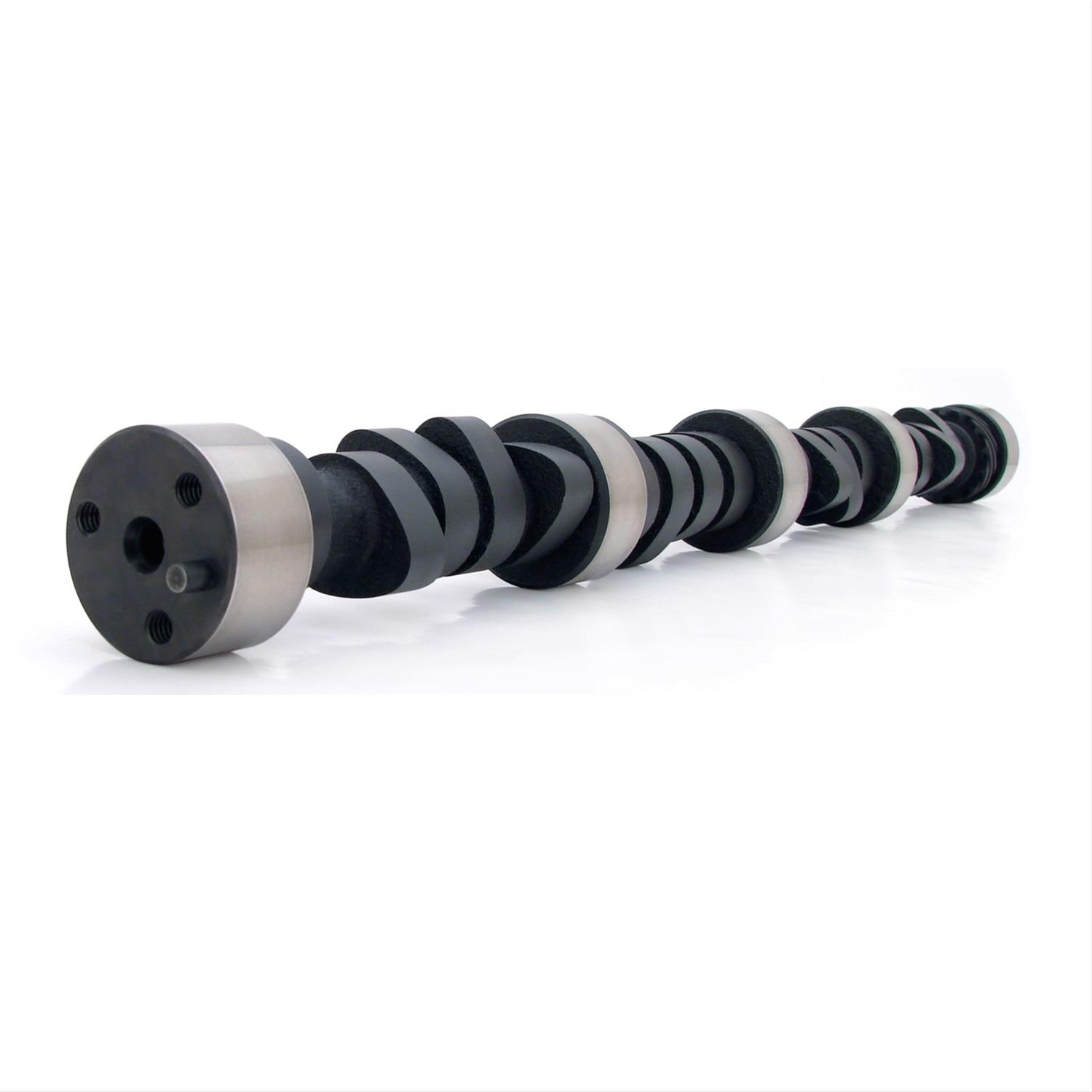

COMP Cams Nitrided Camshaft CB XE274H-1
COMP Cams Nitrided Camshaft CB XE274H-1
A$928.85
Last Available from MFR.
LAST ONE AVAILABLE from the manufacturer's distribution centre. Once sold, this item may not be immediately available again. The dispatch timeframe shown is an estimate based on historical orders for this part and is dependent on the manufacturer releasing the final available unit.
We accept
Description
Xtreme Energy NIT 230/236 Hydraulic Flat Tappet Cam for Chevy Big Block 396-454 (Nitrided). High performance street. Very strong mid-range with headers and a 2200+ stall.
Product Overview
*Xtreme Energy Camshafts*
* Quicker opening lobe profiles deliver increased responsiveness & more area under the lift curve
* More vacuum allows an increase in duration for improved performance and assists power brakes
* Excellent performance in street carbureted applications
* Best performance with aftermarket intake manifolds, headers, lower gear ratios, etc.
Product Details
| Advertised Exhaust Duration: | 286 |
|---|---|
| Advertised Intake Duration: | 274 |
| Amazon ASIN: | B002EDX5XA |
| Assembly Lubricant Included: | Yes |
| Basic Operating RPM Range: | 1,800-6,000 |
| C.A.R.B. E.O. Number: | N/A |
| C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for On-Road Vehicles?: | No |
| C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: | Yes, but must be a race/competition only vehicle. |
| C.A.R.B. Exemption Reason: | N/A |
| California Proposition 65: | WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov |
| Cam Type: | Hydraulic Flat Tappet |
| Camshaft Gear Attachment: | 3-Bolt |
| Camshaft Material: | Nitrided Cast Iron |
| Camshaft Series: | Xtreme Energy |
| Description: | Xtreme Energy NIT 230/236 Hydraulic Flat Cam for Chevrolet Big Block 396-454 |
| Engine Family: | Chevrolet 396-454 c.i. 8 Cylinder (1967-1996) |
| Exhaust Duration @ .050 in.: | 236 |
| Exhaust Duration at .050 inch Lift: | 236 |
| Exhaust Duration: | 286 |
| Exhaust Valve Lift(in): | 0.555 |
| Exhaust Valve Lift: | 0.555 |
| Grind Number: | XE274H |
| Intake Duration @ .050 in.: | 230 |
| Intake Duration at .050 Inch Lift: | 230 |
| Intake Duration: | 274 |
| Intake Valve Lift(in): | 0.552 |
| Intake Valve Lift: | 0.552 |
| Lifter Type: | Hydraulic Flat Tappet |
| Lifters Included: | No |
| Lobe Separation: | 110 |
| Part Number: | cca11-246-20 |
| RPM Range: | 1700-6800 |
| Title: | Xtreme Energy NIT 230/236 Hydraulic Flat Cam for Chevrolet Big Block 396-454 |
| Usage: | Street/Strip |
| Valve Springs Required: | Yes |
Application Summary
Chevrolet GEN IV 396-454 Big Block Engines Originally Equipped with Flat Tappet Camshafts
Part Type
Engine Camshaft
Specifications
- Product Attributes - Brand
- COMP Cams
- Product Attributes - Manufacturer's Part Number
- 11-246-20
- Product Attributes - Part Type
- Camshafts
- Product Attributes - Product Line
- COMP Cams Xtreme Energy Camshafts
- Product Attributes - UPC
- 036584177791
- Product Attributes - Cam Style
- Hydraulic flat tappet
- Product Attributes - Camshaft Use
- Street/Strip
- Product Attributes - Camshaft Manufacturers Description
- High performance street, very strong mid-range, with header and 2200+ stall.
- Product Attributes - Basic Operating RPM Range
- 1,800-6,000
- Product Attributes - Intake Duration at 050 inch Lift
- 230
- Product Attributes - Exhaust Duration at 050 inch Lift
- 236
- Product Attributes - Duration at 050 inch Lift
- 230 int./236 exh.
- Product Attributes - Advertised Intake Duration
- 274
- Product Attributes - Advertised Exhaust Duration
- 286
- Product Attributes - Advertised Duration
- 274 int./286 exh.
- Product Attributes - Intake Valve Lift with Factory Rocker Arm Ratio
- 0.552 in.
- Product Attributes - Exhaust Valve Lift with Factory Rocker Arm Ratio
- 0.555 in.
- Product Attributes - Valve Lift with Factory Rocker Arm Ratio
- 0.552 int./0.555 exh.
- Product Attributes - Lobe Separation (degrees)
- 110
- Product Attributes - Remanufactured
- No
- Product Attributes - Computer-Controlled Compatible
- No
- Product Attributes - Grind Number
- XE274H
- Product Attributes - Valve Springs Required
- Yes
- Product Attributes - Quantity
- Sold individually.
- Product Attributes - Notes
- Cam has been nitrided.
Reference Information
| Brand Name/s | Comp Cams |
|---|---|
| StreetFX SKU | cca11-246-20 |
| SFX Item ID | 4118408 |
| Supplier Item Code | 4118408 |
| Manufacturer SKU | 11-246-20 |
| Manufacturer UPC | 36584177791 |
| Alternative References | c10, s10, XE274H-1 |
Brochures
Compatibility
Chevrolet GEN IV 396-454 Big Block Engines Originally Equipped with Flat Tappet Camshafts
