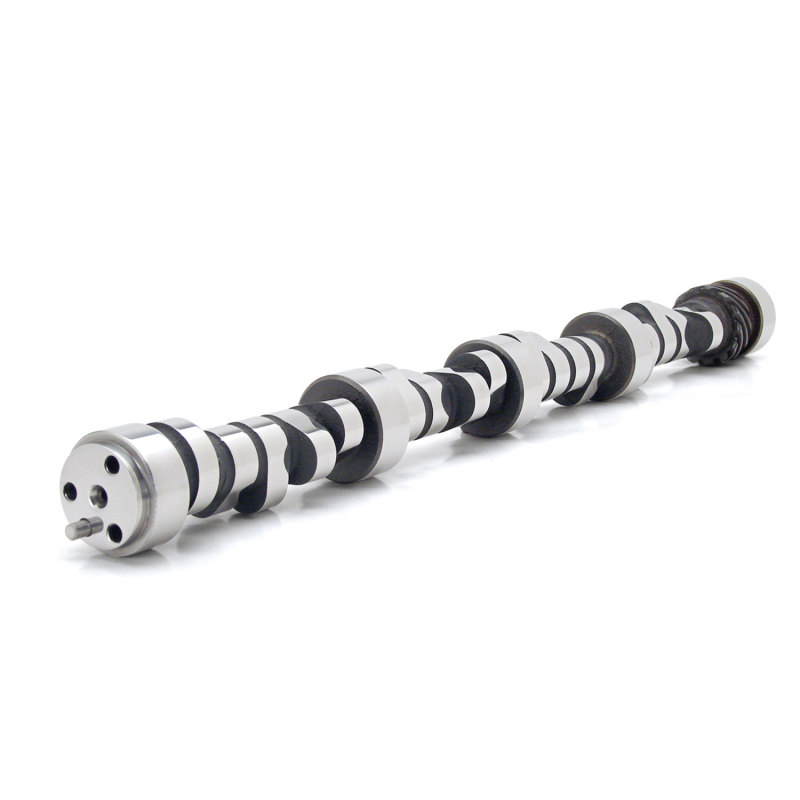

COMP Cams Camshaft CS 269Qio8
COMP Cams Camshaft CS 269Qio8
A$1,234.91
Special Order. Contact for ETA.
This item is out of stock in our warehouse and partner distribution centres. In some cases, this may be due to not having live inventory feeds available for all suppliers. Please contact us before ordering if you need to meet a specific deadline.
We accept
Description
Hydraulic Roller - 4-Pattern: Best choice for smaller c.i. applications with very good heads. Extremely wide power range. 1800+ stall.
Product Overview
*4-Pattern Camshafts*
* Optimize valve events based on runner length
* Feature a large increase in both area under the curve and stability at high RPM
* Feature four lobe patterns; one intake & exhaust design for outboard runners and another intake & exhaust design for inboard runners
* Technology developed and race-proven in NASCAR
Product Details
| Advertised Inboard Exhaust Duration: | 281 |
|---|---|
| Advertised Inboard Intake Duration: | 269 |
| Advertised Outboard Exhaust Duration: | 283 |
| Advertised Outboard Intake Duration: | 271 |
| Amazon ASIN: | N/A |
| Assembly Lubricant Included: | No |
| Basic Operating RPM Range: | 1,700-6,300 |
| C.A.R.B. E.O. Number: | N/A |
| C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for On-Road Vehicles?: | No |
| C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: | Yes, but must be a race/competition only vehicle. |
| C.A.R.B. Exemption Reason: | N/A |
| California Proposition 65: | WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov |
| Cam Type: | Hydraulic Roller |
| Camshaft Gear Attachment: | 3-Bolt |
| Camshaft Material: | Billet Steel |
| Camshaft Series: | 4-Pattern |
| Description: | 4-Pattern 217/227 IB, 219/229 OB Hydraulic Roller Cam for OE Roller SBC |
| Engine Family: | Chevrolet 305-350 c.i. 8 Cylinder O.E. Roller (1987-1998) |
| Exhaust Duration @ .050 in.: | 229 |
| Exhaust Duration: | 283 |
| Exhaust Valve Lift(in): | 0.59 |
| Grind Number: | 269QIO8 |
| Inboard Exhaust Valve Lift: | 0.587 |
| Inboard Intake Duration at .050 Inch Lift: | 217 |
| Inboard Intake Valve Lift: | 0.6 |
| Intake Duration @ .050 in.: | 219 |
| Intake Duration: | 271 |
| Intake Valve Lift(in): | 0.603 |
| Lifter Type: | Hydraulic Roller |
| Lifters Included: | No |
| Outboard Exhaust Valve Lift: | 0.59 |
| Outboard Intake Duration at .050 Inch Lift: | 219 |
| Outboard Intake Valve Lift: | 0.603 |
| Part Number: | cca08-604-44 |
| RPM Range: | 1700-6300 |
| Title: | 4-Pattern 217/227 IB, 219/229 OB Hydraulic Roller Cam for OE Roller SBC |
| Usage: | Street/Performance |
| Valve Springs Required: | Yes |
Application Summary
Fits '87+ GEN 1 Chevrolet 305-350 Small Blocks w/ Factory Roller Camshafts (Not LT-1/LS1 etc)
Part Type
Engine Camshaft
Specifications
- Advertised Inboard Exhaust Duration:
- 281
- Advertised Inboard Intake Duration:
- 269
- Advertised Outboard Exhaust Duration:
- 283
- Advertised Outboard Intake Duration:
- 271
- Amazon ASIN:
- N/A
- Assembly Lubricant Included:
- No
- Basic Operating RPM Range:
- 1,700-6,300
- C.A.R.B. E.O. Number:
- N/A
- C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?:
- Yes, but must meet tailpipe emission standards for year of vehicle.
- C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?:
- Yes, but must meet tailpipe emission standards for year of vehicle.
- C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?:
- Yes, but must meet tailpipe emission standards for year of vehicle.
- C.A.R.B. Exempt for On-Road Vehicles?:
- No
- C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?:
- Yes, but must be a race/competition only vehicle.
- C.A.R.B. Exemption Reason:
- N/A
- California Proposition 65:
- WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov
- Cam Type:
- Hydraulic Roller
- Camshaft Gear Attachment:
- 3-Bolt
- Camshaft Material:
- Billet Steel
- Camshaft Series:
- 4-Pattern
- Description:
- 4-Pattern 217/227 IB, 219/229 OB Hydraulic Roller Cam for OE Roller SBC
- Engine Family:
- Chevrolet 305-350 c.i. 8 Cylinder O.E. Roller (1987-1998)
- Exhaust Duration @ .050 in.:
- 229
- Exhaust Duration:
- 283
- Exhaust Valve Lift(in):
- 0.59
- Grind Number:
- 269QIO8
- Inboard Exhaust Valve Lift:
- 0.587
- Inboard Intake Duration at .050 Inch Lift:
- 217
- Inboard Intake Valve Lift:
- 0.6
- Intake Duration @ .050 in.:
- 219
- Intake Duration:
- 271
- Intake Valve Lift(in):
- 0.603
- Lifter Type:
- Hydraulic Roller
- Lifters Included:
- No
- Outboard Exhaust Valve Lift:
- 0.59
- Outboard Intake Duration at .050 Inch Lift:
- 219
- Outboard Intake Valve Lift:
- 0.603
- Part Number:
- cca08-604-44
- RPM Range:
- 1700-6300
- Title:
- 4-Pattern 217/227 IB, 219/229 OB Hydraulic Roller Cam for OE Roller SBC
- Usage:
- Street/Performance
- Valve Springs Required:
- Yes
Reference Information
| Brand Name/s | Comp Cams |
|---|---|
| StreetFX SKU | cca08-604-44 |
| SFX Item ID | 4118289 |
| Supplier Item Code | 4118289 |
| Manufacturer SKU | 08-604-44 |
| Manufacturer UPC | 36584259534 |
| Alternative References | l46, l48, l65, lm1, lt-1, l82 |
Brochures
Compatibility
Fits '87+ GEN 1 Chevrolet 305-350 Small Blocks w/ Factory Roller Camshafts (Not LT-1/LS1 etc)
