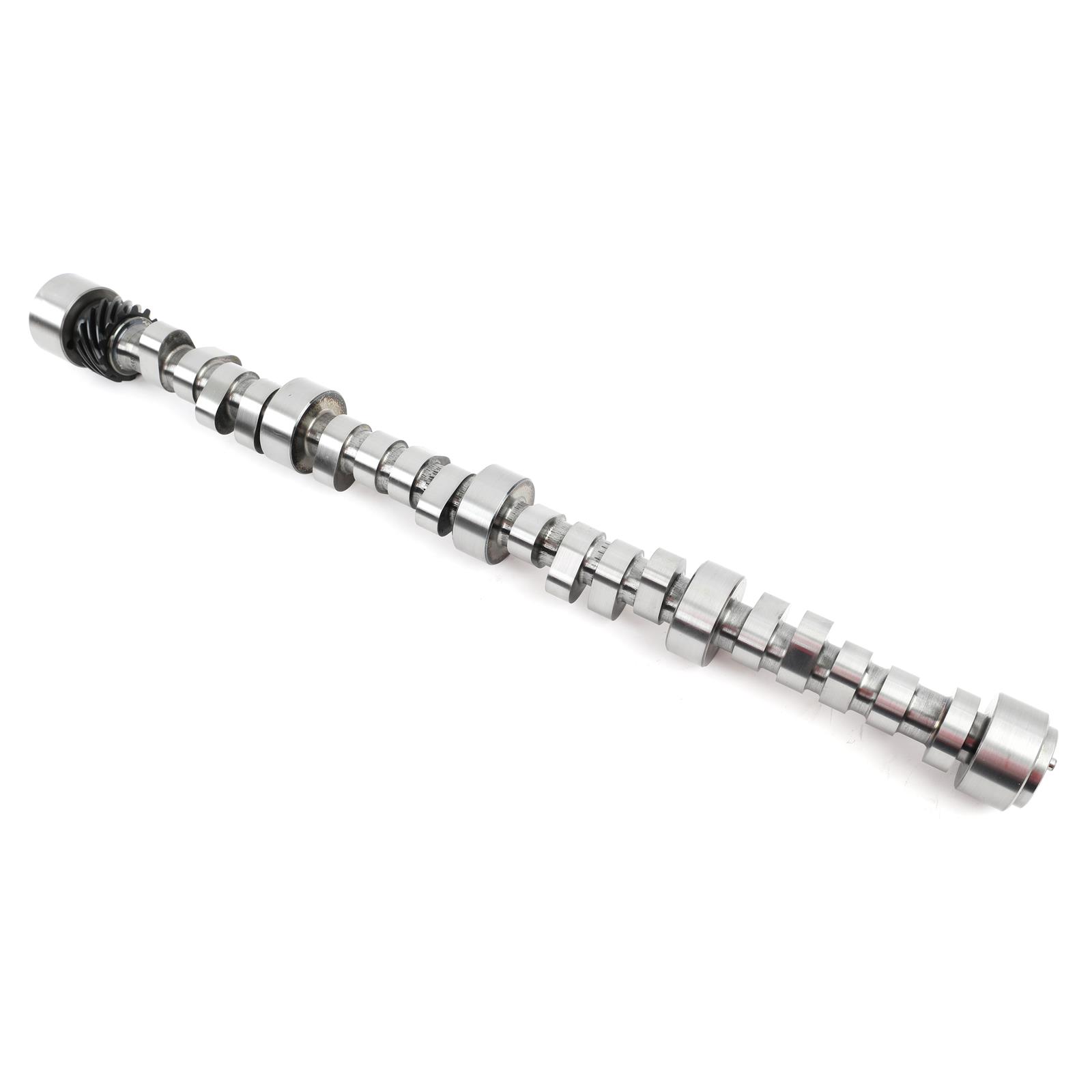

COMP Cams Camshaft CBVI XM 525 Efi
COMP Cams Camshaft CBVI XM 525 Efi
A$1,311.88
Available from MFR.
This item is available from the manufacturer's distribution centre. The dispatch timeframe shown is an estimate based on historical order processing and release times for this part. This item is not held in our own warehouse, and actual dispatch timing may vary depending on manufacturer workload and logistics at the time of ordering.
We accept
Description
Xtreme Marine EFI 235/243 Hydraulic Roller Cam
Product Overview
*Xtreme Marine Camshafts*
* Extremely wide powerband helps get boat on plane while making maximum horsepower
* Work against exhaust systems with restrictive back pressure
* Power enhancement helps maintain top end speed for long distances
* Intended for applications where low idle speeds are required
Product Details
| Advertised Exhaust Duration: | 297 |
|---|---|
| Advertised Intake Duration: | 289 |
| Amazon ASIN: | N/A |
| Assembly Lubricant Included: | No |
| Basic Operating RPM Range: | 2,500-6,000 |
| C.A.R.B. E.O. Number: | N/A |
| C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for On-Road Vehicles?: | No |
| C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: | Yes, but must be a race/competition only vehicle. |
| C.A.R.B. Exemption Reason: | N/A |
| California Proposition 65: | WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov |
| Cam Type: | Hydraulic Roller |
| Camshaft Gear Attachment: | 3-Bolt |
| Camshaft Material: | Billet Steel |
| Camshaft Series: | Xtreme Marine EFI |
| Description: | Xtreme Marine EFI 235/243 Hydraulic Roller Cam for Chevrolet Big Block GEN VI |
| Engine Family: | Chevrolet GEN VI 454 and 502 c.i. 8 Cylinder (1996-1999) |
| Exhaust Duration @ .050 in.: | 243 |
| Exhaust Duration at .050 inch Lift: | 243 |
| Exhaust Duration: | 297 |
| Exhaust Valve Lift(in): | 0.627 |
| Exhaust Valve Lift: | 0.627 |
| Grind Number: | XM289HR-14 |
| Intake Duration @ .050 in.: | 235 |
| Intake Duration at .050 Inch Lift: | 235 |
| Intake Duration: | 289 |
| Intake Valve Lift(in): | 0.610 |
| Intake Valve Lift: | 0.61 |
| Lifter Type: | Hydraulic Roller |
| Lifters Included: | No |
| Lobe Separation: | 114 |
| Part Number: | cca01-446-11 |
| RPM Range: | 2500-6000 |
| Title: | Xtreme Marine EFI 235/243 Hydraulic Roller Cam for Chevrolet Big Block GEN VI |
| Usage: | Marine |
| Valve Springs Required: | Yes |
Application Summary
1996-1999 Chevrolet 454/502 GEN VI Big Block
Part Type
Engine Camshaft
Specifications
- Product Attributes - Brand
- COMP Cams
- Product Attributes - Manufacturer's Part Number
- 01-446-11
- Product Attributes - Part Type
- Camshafts
- Product Attributes - Product Line
- COMP Cams Xtreme Marine Camshafts
- Product Attributes - UPC
- 036584262855
- Product Attributes - Cam Style
- Hydraulic roller, OE roller
- Product Attributes - Camshaft Use
- Marine
- Product Attributes - Basic Operating RPM Range
- 2,500-6,000
- Product Attributes - Intake Duration at 050 inch Lift
- 235
- Product Attributes - Exhaust Duration at 050 inch Lift
- 243
- Product Attributes - Duration at 050 inch Lift
- 235 int./243 exh.
- Product Attributes - Advertised Intake Duration
- 289
- Product Attributes - Advertised Exhaust Duration
- 297
- Product Attributes - Advertised Duration
- 289 int./297 exh.
- Product Attributes - Intake Valve Lift with Factory Rocker Arm Ratio
- 0.610 in.
- Product Attributes - Exhaust Valve Lift with Factory Rocker Arm Ratio
- 0.627 in.
- Product Attributes - Valve Lift with Factory Rocker Arm Ratio
- 0.610 int./0.627 exh.
- Product Attributes - Lobe Separation (degrees)
- 114
- Product Attributes - Remanufactured
- No
- Product Attributes - Computer-Controlled Compatible
- No
- Product Attributes - Grind Number
- XM289HR-14
- Product Attributes - Valve Springs Required
- Yes
- Product Attributes - Quantity
- Sold individually.
- Product Attributes - Notes
- Only fits applications with a 525 c.i. marine engine.
Reference Information
| Brand Name/s | Comp Cams |
|---|---|
| StreetFX SKU | cca01-446-11 |
| SFX Item ID | 4118217 |
| Supplier Item Code | 4118217 |
| Manufacturer SKU | 01-446-11 |
| Manufacturer UPC | 36584262855 |
| Alternative References | c10, s10, COM01-446-11 |
Brochures
Compatibility
1996-1999 Chevrolet 454/502 GEN VI Big Block
