Borla 86-91 Corvette 5.7L 8cyl S-Type SS Catback Exhaust

SKU: BOR140082

Exhaust Systems

BOR Cat Back S-Type...

Borla

Borla 86-91 Corvette 5.7L 8cyl S-Type SS Catback Exhaust

SKU: BOR140082

Exhaust Systems

BOR Cat Back S-Type...

IN STOCK! Est Ship 3-5 days. This item is IN STOCK at one of our warehouses or distribution centres, the ETA is the approximate time required to prepare your order for dispatch.

We accept

Description

Borla(r) Performance Industries Cat-Back(tm) system for the celebrated 1986-1991 C4 Corvette equipped with a 5.7L V-8 engine has been engineered to work with either the popular manual transmission or the automatic. The premium, high-quality, T-304 Austenitic stainless steel system is easy to bolt on, is a direct replacement for the much heavier (by some 20lbs.!) stock system. A 3" diameter front pipe is mounted just after the catalytic converter leading to a Y-pipe, which splits into two 2-1/2" pipes exiting on each side of the rear. The muffler and tip assemblies use a 10"x 5" diameter round muffler on each side of the vehicle, with polished T-304 stainless steel rectangular, rolled edge, angle cut tailpipe tip at each split rear exit. Tests have shown an exciting 41% increase in flow for dramatic improvement in power or fuel economy. That now famous, aggressive Borla(r) growl and sexy look proclaim this block may be small, but it means all business we guarantee it for a Million-Miles! With race-bred technology that has been transferred from the many successful Borla(r) race programs, it was no accident that this Borla(r) system has won several major Corvette exhaust shootouts. Included in this great and storied past are such famous efforts as the C5-R Race Team that has dominated LeMans along with the Bondurant Corvette program at the Bob Bondurant School of High Performance Driving. Only what you would expect from Borla(r), the most winning exhaust in racing.

Product Overview

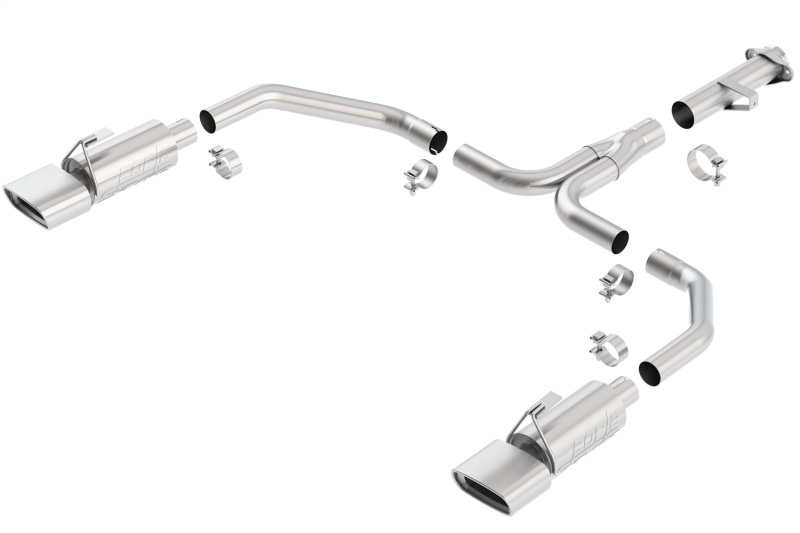

Borla Performance Industries Cat-Back system for the celebrated 1986-1991 C4 Corvette equipped with a 5.7L V-8 engine has been engineered to work with either the popular manual transmission or the automatic. The premium, high-quality, T-304 Austenitic stainless steel system is easy to bolt on, is a direct replacement for the much heavier (by some 20lbs.!) stock system. A 3" diameter front pipe is mounted just after the catalytic converter leading to a Y-pipe, which splits into two 2-1/2" pipes exiting on each side of the rear. The muffler and tip assemblies use a 10"x 5" diameter round muffler on each side of the vehicle, with polished T-304 stainless steel rectangular, rolled edge, angle cut tailpipe tip at each split rear exit. Tests have shown an exciting 41% increase in flow for dramatic improvement in power or fuel economy. That now famous, aggressive Borla growl and sexy look proclaim this block may be small, but it means all business we guarantee it for a Million-Miles! With race-bred technology that has been transferred from the many successful Borla race programs, it was no accident that this Borla system has won several major Corvette exhaust shootouts. Included in this great and storied past are such famous efforts as the C5-R Race Team that has dominated LeMans along with the Bondurant Corvette program at the Bob Bondurant School of High Performance Driving. Only what you would expect from Borla, the most winning exhaust in racing.

Product Details

Construction:	All Welded
Description:	S-Type; Cat-BackÃ¢â€žÂ¢ System
Exhaust Type:	Cat-Back(tm) System
Exit Position:	Split Rear
Exit Style:	Single Split Rear Exit
Grade Type:	Performance
Inlet Inside Diameter:	3.000 in.
Inlet Size (in.):	3
Material:	T-304 Stainless Steel
Muffler Type:	Straight-Through
Off Road Use Only:	No
Outlet Outside Diameter:	2.500 in.
Outlet Size (in.):	2.5
Part Number:	bor140082
Prop 65 (C, R or CR):	CR
Prop 65 - Long Label:	WARNING: This product in the physical form it is sold does not present a hazard. However, operations including, but not limited to welding, brazing, or thermal cutting can expose you to chemicals including Chromium, Nickel, Cobalt, Arsenic, Cadmium and Lead which are known to the State Of California to cause cancer, birth defects and other reproductive harm. For more information go towww.P65Warnings.ca.gov
Prop 65 - Short Label:	Proposition 65 Warning.JPG
Prop 65 Yes/No:	Yes
System Type:	Cat Back
Tail Pipe Diameter:	2.500 in.
Tail Pipe Material:	Stainless Steel

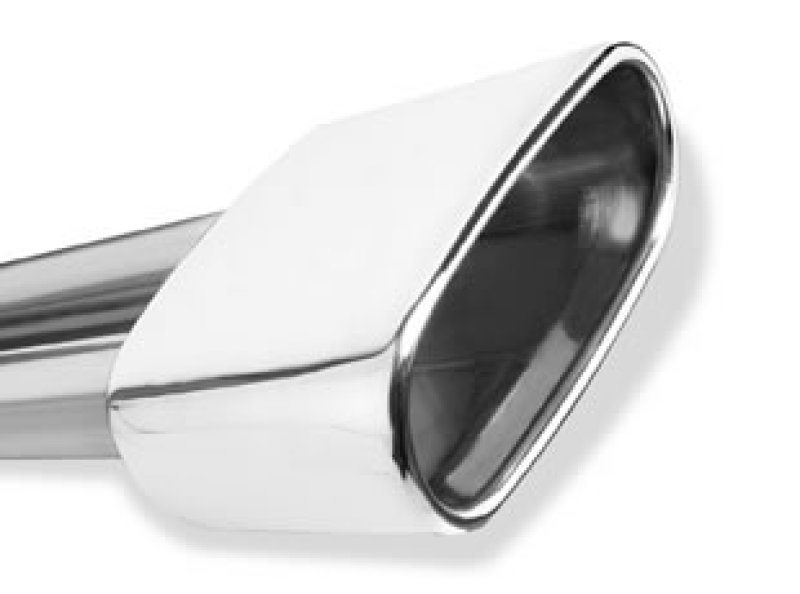

Tip / Outlet Finish:	Polished T-304 Stainless Steel
Tip Diameter:	6.600 in.
Tip Size:	6.6in
Title Extended:	C4 Corvette 1986-1991 Cat-Back(tm) Exhaust System S-Type Part # 140082
Title:	1986-1981 Chevrolet Corvette C4 Cat-Back(tm) Exhaust System S-Type
Tubing Diameter:	3.000 in.

Application Summary

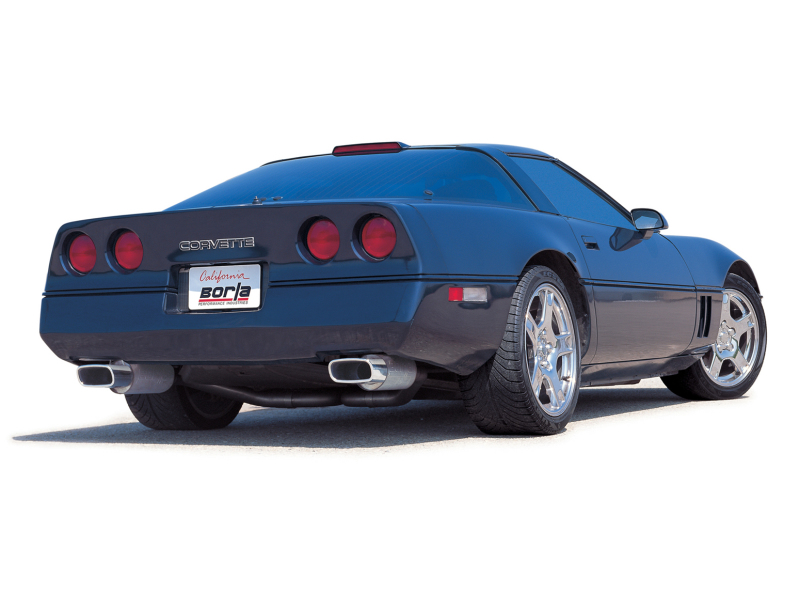

1986-1991 Chevrolet Corvette (C4) 5.7L V8 Automatic/ Manual Transmission Rear Wheel Drive Coupe/ Convertible (EXCEPT ZR1).

Part Type

Exhaust System Kit

Data: v4.2 - Upd: 2026-10-15 02:13:39

Specifications

Product Attributes - UPC: 808422400824
Product Attributes - Brand: Borla
Product Attributes - Notes: S-Type system.
Product Attributes - Tip Cut: Slant
Product Attributes - Quantity: Sold as a kit.
Product Attributes - Part Type: Exhaust Systems
Product Attributes - Tip Shape: Rectangular
Product Attributes - Tip Finish: Polished
Product Attributes - Exhaust Type: Single in/Dual out
Product Attributes - Product Line: Borla S-Type Cat-Back Exhaust Systems
Product Attributes - System Style: Cat-back
Product Attributes - Tip Included: Yes
Product Attributes - Tip Material: 304 stainless steel
Product Attributes - Tip Quantity: 2
Product Attributes - Exit Location: Split rear
Product Attributes - Muffler Style: Turbo
Product Attributes - System Finish: Natural
Product Attributes - Inlet Quantity: 1
Product Attributes - Muffler Finish: Natural
Product Attributes - Tip Edge Style: Rolled edge
Product Attributes - System Material: 304 stainless steel
Product Attributes - Muffler Included: Yes
Product Attributes - Muffler Material: 304 stainless steel
Product Attributes - Muffler Quantity: Two
Product Attributes - Hardware Included: Yes
Product Attributes - Special Attention: It is illegal to install parts or components that bypass, defeat, or render inoperative the manufacturers’ technology and design necessary to reduce vehicle emissions to meet state and federal Clean Air Act standards.
Product Attributes - Muffler Configuration: Single inlet/Single outlet
Product Attributes - Tip Outlet Size (in.): 6.69 x 3.00
Product Attributes - Tailpipe Diameter (in.): 2.50 in.
Product Attributes - Manufacturer's Part Number: 140082
Product Attributes - Catalytic Converter(s) Included: No
Product Attributes - Intermediate Pipe Diameter (in.): 3.00 in.

Reference Information

Brand Name/s	Borla
StreetFX SKU	bor140082
SFX Item ID	4224909
Supplier Item Code	4224909
Manufacturer SKU	140082
Manufacturer UPC	808422400824
Alternative References	5.7L, 8cyl
