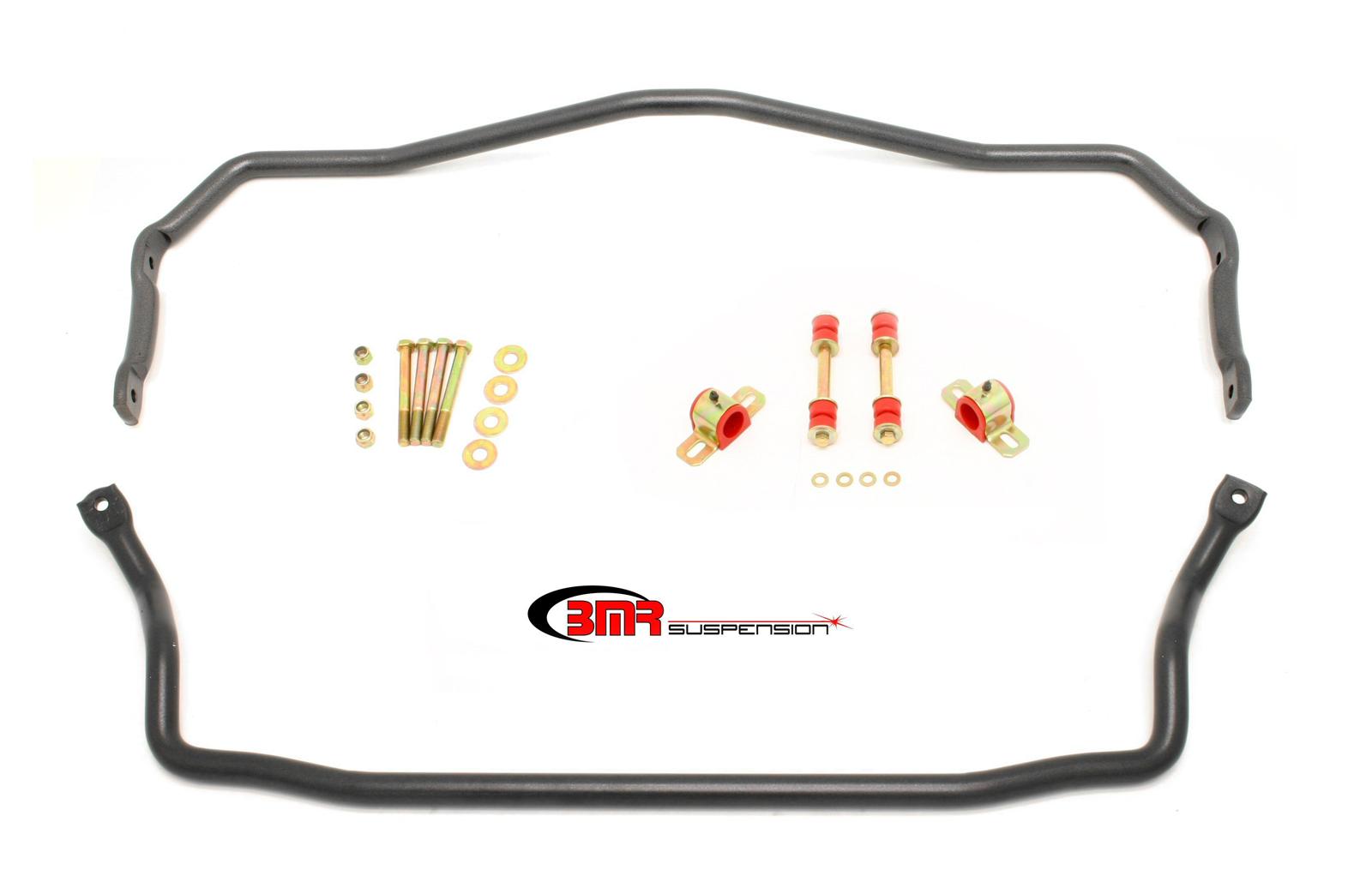

BMR 64-72 A-Body Front & Rear Sway Bar Kit w/ Bushings - Black Hammertone
BMR 64-72 A-Body Front & Rear Sway Bar Kit w/ Bushings - Black Hammertone
A$1,216.47
LAST ONE! Est Ship 3-5 days.
LAST ONE! This is the last unit at our distribution centre. Contact us if you need more. The ETA is the approximate time required to prepare your order for dispatch.
We accept
Description
Reduce body roll and improve the handling of your 1964-1972 A-Body with a Sway Bar Kit from BMR's suspension! Stock sway bars have low torsional spring rates because they are manufactured from small diameter bar stock or tubing. BMRs Sway Bar Kit (SB028) increases sway bar rate and is designed for street performance, autocross, and road racing applications. When performance is a must, rely on BMR's suspension!
Product Overview
The two primary functions of sway bars are to control body roll and to determine the understeer or oversteer behavior of a vehicle. Stock sway bars have low torsional spring rates because they are manufactured from small diameter bar stock or tubing. BMR Suspensions SB028 front and rear sway bar kit was designed by factoring in the vehicle weight, application, motion ratio, and coil spring rate. Manufactured from heavy-duty, solid 32mm bar stock (front) and solid 1-inch bar stock 9rear), the SB028 is cold formed to better resist torsional fatigue and retain its "memory" far longer than the hot-formed bars used by many competitors. The sway bars are CNC-formed for exact manufacturing tolerances and repeatable high quality. The front sway bar mounts to the car using polyurethane bushings. These bushings are molded from 88-durometer, low-deflection, polyurethane, and are internally fluted to keeps grease in the bushing. The steel sway bar mounting brackets are reinforced to minimize deflection. The rear sway bar mounts to the rear lower control arm in the factory location.
Product Details
| Description: | BMR 64-72 A-Body Front & Rear Sway Bar Kit w/ Bushings - Black Hammertone |
|---|---|
| Front Sway Bar Adjustable: | Fixed |
| Front Sway Bar Diameter (in): | 1.25 inches |
| Front Sway Bar Diameter (mm): | 32.0 mm |
| Front Sway Bar Type: | Solid |
| Mounting Hardware Included: | Yes |
| Part Number: | bmrSB028H |
| Position: | Front and rear |
| Quantity: | Sold as a kit |
| Rear Sway Bar Adjustable: | Fixed |
| Rear Sway Bar Diameter (in): | 1.00 inches |
| Rear Sway Bar Diameter (mm): | 25.0 mm |
| Rear Sway Bar Type: | Solid |
| Sway Bar Finish: | Black hammertone powdercoated |
| Sway Bar Material: | Steel |
Part Type
Coil Spring / Tie Rod Sleeve / Stabilizer Bar Kit
Specifications
- Product Attributes - Brand
- BMR Suspension
- Product Attributes - Manufacturer's Part Number
- SB028H
- Product Attributes - Part Type
- Sway Bars
- Product Attributes - Product Line
- BMR Sway Bars
- Product Attributes - UPC
- 887753326072
- Product Attributes - Sway Bar Position
- Front and Rear
- Product Attributes - Front Sway Bar Type
- Solid
- Product Attributes - Front Sway Bar Adjustable
- Fixed
- Product Attributes - Rear Sway Bar Type
- Solid
- Product Attributes - Rear Sway Bar Adjustable
- Fixed
- Product Attributes - Front Sway Bar Diameter (in.)
- 1.250 in.
- Product Attributes - Front Sway Bar Diameter (mm)
- 32.00 mm
- Product Attributes - Rear Sway Bar Diameter (in.)
- 1.000 in.
- Product Attributes - Rear Sway Bar Diameter (mm)
- 25.00 mm
- Product Attributes - Mounting Hardware Included
- Yes
- Product Attributes - Sway Bar Color
- Black
- Product Attributes - Sway Bar Material
- Steel
- Product Attributes - Quantity
- Sold as a kit.
Reference Information
| Brand Name/s | Bmr Suspension |
|---|---|
| StreetFX SKU | bmrSB028H |
| SFX Item ID | 4008609 |
| Supplier Item Code | 4008609 |
| Manufacturer SKU | SB028H |
| Manufacturer UPC | 887753326072 |
