Description

The two primary functions of sway bars are to control body roll and to determine the understeer or oversteer behavior of a vehicle. Stock sway bars have low torsional spring rates because they are manufactured from small diameter bar stock or tubing. BMR's suspensions SB023 rear sway bar was designed by factoring in the vehicle weight, application, motion ratio, coil spring rate, and adjustability requirements. Manufactured from heavy-duty 22mm bar stock, the SB023 is cold formed to better resist torsional fatigue and retain its "memory" far longer than the hot-formed bars used by many competitors. The sway bar is CNC-formed for exact manufacturing tolerances and repeatable high quality. The SB023 attaches to your Mustang with billet aluminum end links and 88-durometer polyurethane bushings, reducing the deflection from the stock rubber bushings. These bushings are molded from 88-durometer, low-deflection, polyurethane, and are internally fluted to keep grease in the bushing. The CNC-machined, billet aluminum sway bar end links eliminate deflection.BMR's suspension designed the SB023 sway bar for street performance, autocross, and road race applications. The non-adjustable SB023 gives you a 52% increase in rate over the stock bar (depending on year and model). The rate increases gives you improved handling characteristics so you can drive harder through corners with minimal body roll. This allows for more sway bar control, which equals better handling. When performance is a must, rely on BMR's suspension!BMR's suspensions SB023 sway bars are available in black hammertone and red powdercoat for long-lasting good looks. Installation time is about 1-2 hours. Proudly made in the U.S.A.!NOTE: BMR'sB023 rear sway bar is not compatible with convertible models unless the additional OE convertible bracing is removed.

Product Overview

The two primary functions of sway bars are to control body roll and to determine the understeer or oversteer behavior of a vehicle. Stock sway bars have low torsional spring rates because they are manufactured from small diameter bar stock or tubing. BMR Suspensions SB023 rear sway bar was designed by factoring in the vehicle weight, application, motion ratio, coil spring rate, and adjustability requirements. Manufactured from heavy-duty 22mm bar stock, the SB023 is cold formed to better resist torsional fatigue and retain its "memory" far longer than the hot-formed bars used by many competitors. The sway bar is CNC-formed for exact manufacturing tolerances and repeatable high quality. The SB023 attaches to your Mustang with billet aluminum end links and 88-durometer polyurethane bushings, reducing the deflection from the stock rubber bushings. These bushings are molded from 88-durometer, low-deflection, polyurethane, and are internally fluted to keep grease in the bushing. The CNC-machined, billet aluminum sway bar end links eliminate deflection.BMR Suspension designed the SB023 sway bar for street performance, autocross, and road race applications. The non-adjustable SB023 gives you a 52% increase in rate over the stock bar (depending on year and model). The rate increases gives you improved handling characteristics so you can drive harder through corners with minimal body roll. This allows for more sway bar control, which equals better handling. When performance is a must, rely on BMR Suspension!BMR Suspensions SB023 sway bars are available in black hammertone and red powdercoat for long-lasting good looks. Installation time is about 1-2 hours. Proudly made in the U.S.A.!NOTE: BMR SB023 rear sway bar is not compatible with convertible models unless the additional OE convertible bracing is removed.

Product Details

Description:	BMR 05-10 S197 Mustang Rear Solid 22mm Sway Bar Kit w/ Bushings & Billet Links - Black Hammertone
Mounting Hardware Included:	Yes
Part Number:	bmrSB023H
Position:	Rear
Quantity:	Sold as a kit
Rear Sway Bar Adjustable:	Fixed
Rear Sway Bar Diameter (in):	0.875 inches
Rear Sway Bar Diameter (mm):	22.0 mm
Rear Sway Bar Type:	Solid
Sway Bar Finish:	Black hammertone powdercoated
Sway Bar Material:	Steel

Kit Options

This item is available as a full kit.
Select a kit option in the following table if you are looking for this item in a bundle form with all associated components.

Kit option/s:

Thumb	SKU	Kit Title

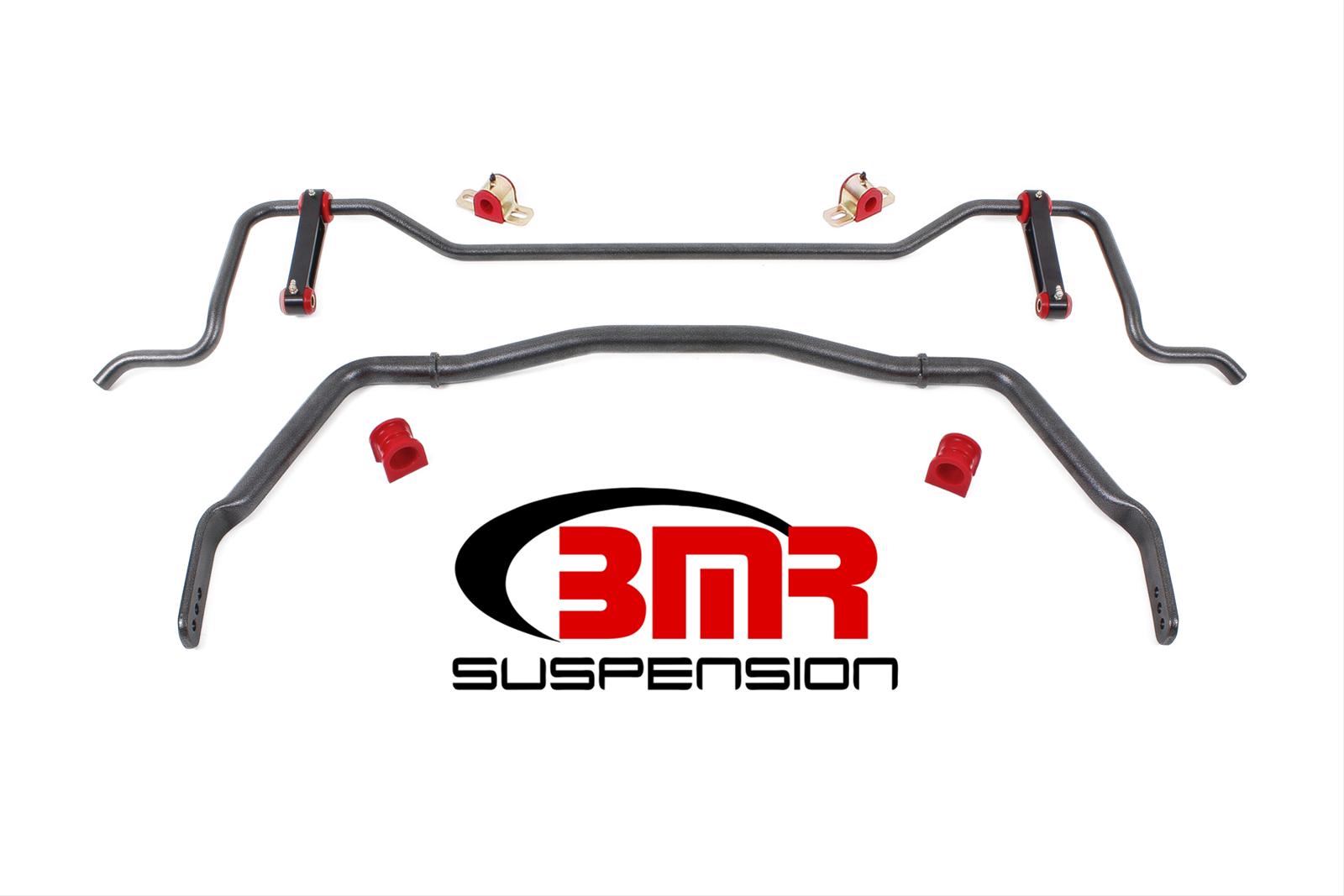

	bmrSBP010H	BMR 05-10 Ford S197 Mustang Sway Bar Package - Black Hammertone (1x bmrSB022H, 1x bmrSB023H)

Data: v4.2 - Upd: 2026-10-14 11:42:34

Specifications

Product Attributes - UPC

887753326003

Product Attributes - Brand

BMR Suspension

Product Attributes - Notes

Kit contains billet end links.

Product Attributes - Quantity

Sold as a kit.

Product Attributes - Part Type

Sway Bars

Product Attributes - Product Line

BMR Sway Bars

Product Attributes - Sway Bar Color

Black

Product Attributes - Sway Bar Material

Steel

Product Attributes - Sway Bar Position

Rear

Product Attributes - Rear Sway Bar Type

Solid

Product Attributes - Rear Sway Bar Adjustable

Fixed

Product Attributes - Manufacturer's Part Number

SB023H

Product Attributes - Mounting Hardware Included

Yes

Product Attributes - Rear Sway Bar Diameter (mm)

22.23 mm

Product Attributes - Rear Sway Bar Diameter (in.)

0.875 in.

Compatibility
