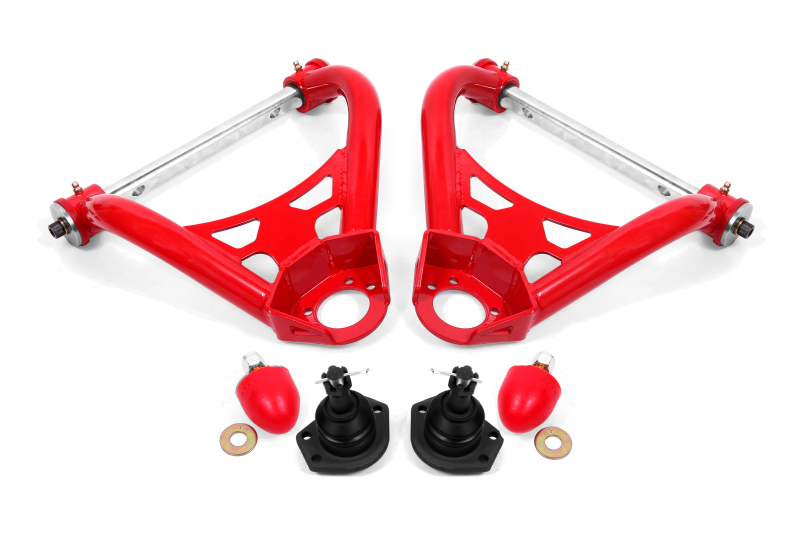

BMR 64-72 A-Body Upper Non-Adj. A-Arms w/ Stock Spindles (Polyurethane) - Red
BMR 64-72 A-Body Upper Non-Adj. A-Arms w/ Stock Spindles (Polyurethane) - Red
A$834.92
Limited Availability from MFR
Limited stock available from the manufacturer's distribution centre. The dispatch timeframe shown is an estimate based on historical orders of this part. This item is not held in our own warehouse, and availability and release timing may vary depending on manufacturer stock movements and processing at the time of ordering.
We accept
Description
The polyurethane bushings add strength and reduce deflection over the stock rubber bushing, while still absorbing much of the NVH. The means you get a great blend of performance and comfort. Designed for street performance, drag race, and handling, and pro-touring applications, BMR upper A-arms are engineered to provide 2 additional degrees of positive caster for increased high-speed stability. Combine with BMR Lower A-arms, and you get 4 additional degrees of positive caster over stock (2 degree from the uppers and 2 degrees from the lowers). This gives you improved geometry and increased lateral grip during cornering situations. The upper arms also have revised cross shaft geometry and shorter overall length, requiring less shim stack to achieve negative camber on lowered cars, or race and pro touring vehicles with aggressive alignments. The combination of cross shaft design and the shortened overall A-arm length gives you a improved camber curve through the front suspensions range of motion.BMR's suspension AA017 Non-Adjustable Upper A-arms are available in black hammertone and red powdercoat for long-lasting good looks. Installation time is 3-4 hours. Proudly made in the U.S.A.Control arm hardware kit RH006 (Includes upper and lower control arm hardware - Highly Recommended) also available.
Product Overview
A-arms are one of the most important, yet overlooked suspension components. They are the direct link between the front wheels and the chassis. Any deflection causes a change in alignment, which results in poor performance and driving feel. Fabricated from heavy-duty 1.25-inch, 0.095-inch wall DOM tubing with laser-cut, CNC-formed plate steel braces for extra strength, deflection is eliminated with A-arms from BMR Suspension. BMRs AA017 Upper A-arms are equipped with CNC machined, nickel-plated, dual-offset cross-shafts with heavy-duty stainless bushing retainers. They come pre-assembled with new polyurethane bump stops, and new upper ball joints are included. Greasable, 95-durometer bushings add a solid, more responsive feel over the stock rubber bushings. BMRs bushings are internally fluted, which allows grease to evenly coat the inner sleeve. These flutes also direct grease to the outer edge of the bushing, keeping the thrust surface lubricated. This efficient lubrication ensures quiet, reliable operation over the life of the bushings.
Product Details
| Adjustable: | No |
|---|---|
| Ball Joint Included: | Yes |
| Bushing Material: | Polyurethane |
| Bushings Included: | Yes |
| Control Arm Finish: | Red Powdercoated |
| Control Arm Material: | Steel |
| Control Arm Style: | Tubular |
| Description: | BMR 64-72 A-Body Upper Non-Adj. A-Arms w/ Stock Spindles (Polyurethane) - Red |
| Hardware Included: | No |
| Part Number: | bmrAA017R |
| Quantity: | Sold as a pair |
Part Type
Suspension Control Arm
Specifications
- Product Attributes - Brand
- BMR Suspension
- Product Attributes - Manufacturer's Part Number
- AA017R
- Product Attributes - Part Type
- Control Arms
- Product Attributes - Product Line
- BMR Suspension A-Arms
- Product Attributes - UPC
- 887753320995
- Product Attributes - Control Arm Style
- Tubular
- Product Attributes - Control Arm Material
- Steel
- Product Attributes - Ball Joint Included
- No
- Product Attributes - Bushings Included
- Yes
- Product Attributes - Control Arm Color
- Red
- Product Attributes - Cross Pin Material
- Steel
- Product Attributes - Adjustable
- No
- Product Attributes - Hardware Included
- No
- Product Attributes - Bushing Material
- Polyurethane
- Product Attributes - Quantity
- Sold as a pair.
- Product Attributes - Notes
- For use with stock spindles.
Reference Information
| Brand Name/s | Bmr Suspension |
|---|---|
| StreetFX SKU | bmrAA017R |
| SFX Item ID | 4008184 |
| Supplier Item Code | 4008184 |
| Manufacturer SKU | AA017R |
| Manufacturer UPC | 887753320995 |
