Bilstein 5100 Series (BTS) 05-13 Ford F-250/F-350 Super Duty Front Tuned Suspension Kit
Bilstein 5100 Series (BTS) 05-13 Ford F-250/F-350 Super Duty Front Tuned Suspension Kit
A$1,331.64
Special Order. Contact for ETA.
This item is out of stock in our warehouse and partner distribution centres. In some cases, this may be due to not having live inventory feeds available for all suppliers. Please contact us before ordering if you need to meet a specific deadline.
We accept
Description

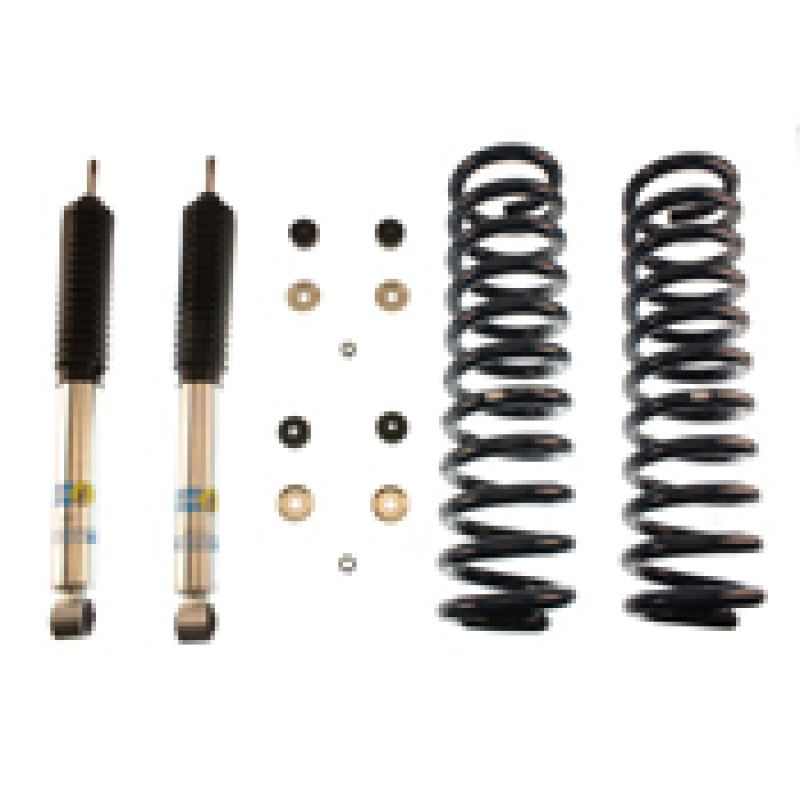

Bilstein B8 5112 suspension kit is a high performance leveling kit which provides more ground clearance, allows for larger tires, and increases wheel travel. The Bilstein B8 5112 suspension kit is for front applications and consists of (2) B8 5100 shock absorbers combined with (2) matched coil springs. This simple yet effective kit will bolt into the factory locations with no modifications. The Bilstein B8 5112 suspension kit provides a smooth and stable ride both on and off-road.
Product Overview
BILSTEIN B8 5112 is a high performance leveling kit which provides more ground clearance, allows for larger tires, and increases wheel travel. The B8 5112 kit is for front applications and consists of (2) B8 5100 Series shocks combined with (2) matched coil springs. This simple yet effective kit will bolt into the factory locations with no modifications. The B8 5112 kit is available for front 2000-2005 F-250 and F-350 4WD applications, and will provide a smooth and stable ride both on and off the road.
*Features and Benefits:*
* Provides 2"-2.75" of lift depending on application
* 46mm monotube shock design for consistent fade-free performance
* Patented digressive shock valving instantly reacts to changing surface conditions for maximum comfort, and control on and off-road
* Vehicle specific tuning optimizes performance for ride and handling
* OEM certified shock mounting hardware allows for easy installation
* Zinc plated shocks for resistance to harsh elements
* Black shock boots included
* Made in the USA
* Limited Lifetime Warranty
* Kit includes (2) front B8 5100 shocks and (2) custom tuned springs
Features and Benefits
- Zinc-Plated Steel Body
- 46mm monotube design ensures consistent, fade-free performance in all conditions
- Vehicle specific tuning
- Patented digressive valving instantly reacts to changing surface conditions
Product Details
| Adjustable Damping: | Non-Adjustable |
|---|---|
| Body Design: | Smooth Body (Non-Coilover) |
| Body Diameter (ID): | 46mm |
| Body Diameter (OD): | 2.0 in. |
| Body Inside Diameter: | 46mm |
| Boot Included: | Black Bellows |
| Description: | B8 5112-Suspension Leveling Kit |
| Finish: | Dampers: Zinc Plated/Springs: Blue |
| Internal Design: | Monotube |
| Part Number: | bilF4-SE5-C765-H0 |
| PartType: | Suspension Kit |
| Piston Diameter: | 46mm |
| Position: | Front |
| Prop 65 (Y/N): | Y |
| Prop 65 - Short Label: | WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov |
| Reservoir Included: | No |
| Reservoir: | No |
| Segment: | Light Truck |
| Series: | B8 5112 |
| Spring Seat Included: | No |
| Title: | Bilstein Shock Absorbers |
| Upper Mount Type: | N/A |
| WARNING CA Proposition 65 Message: | WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov |
| WARNING CA Proposition 65: | Yes |
Application Summary
Ford F-250 Super Duty 2016-2005; F-350 Super Duty 2016-2005
Part Type
Suspension Leveling Kit
Features
- 46mm monotube design ensures consistent, fade-free performance in all conditions
- Patented digressive valving instantly reacts to changing surface conditions
- Vehicle specific tuning
- Zinc-Plated Steel Body
Specifications
- Product Attributes - UPC
- 651860563688
- Product Attributes - Brand
- Bilstein
- Product Attributes - Notes
- Kit includes two 5100 Series shocks and two coil springs. Adjustable track bar recommended.
- Product Attributes - Quantity
- Sold as a kit.
- Product Attributes - Part Type
- Suspension Leveling & Lift Kits
- Product Attributes - Lift Style
- Suspension Leveling Kit
- Product Attributes - Product Line
- Bilstein BTS System Lift Kits
- Product Attributes - Front Shock Type
- Gas-charged monotube
- Product Attributes - Hardware Included
- No
- Product Attributes - Brake Lines Included
- No
- Product Attributes - FMVSS 126 Certification
- Yes
- Product Attributes - Manufacturer's Part Number
- F4-SE5-C765-H0
- Product Attributes - Rear Shocks/Struts Included
- No
- Product Attributes - Front Shocks/Struts Included
- Yes
- Product Attributes - Primary Front Lift Component
- Coilover
- Product Attributes - Front Shock Quantity Per Wheel
- 1
Reference Information
| Brand Name/s | Bilstein |
|---|---|
| StreetFX SKU | bilF4-SE5-C765-H0 |
| SFX Item ID | 4440092 |
| Supplier Item Code | 4440092 |
| Manufacturer SKU | F4-SE5-C765-H0 |
| Manufacturer UPC | 651860563688 |
| Alternative References | bsn-f4se5c765h0, F-250/F-350 |
Compatibility
Ford F-250 Super Duty 2016-2005; F-350 Super Duty 2016-2005
