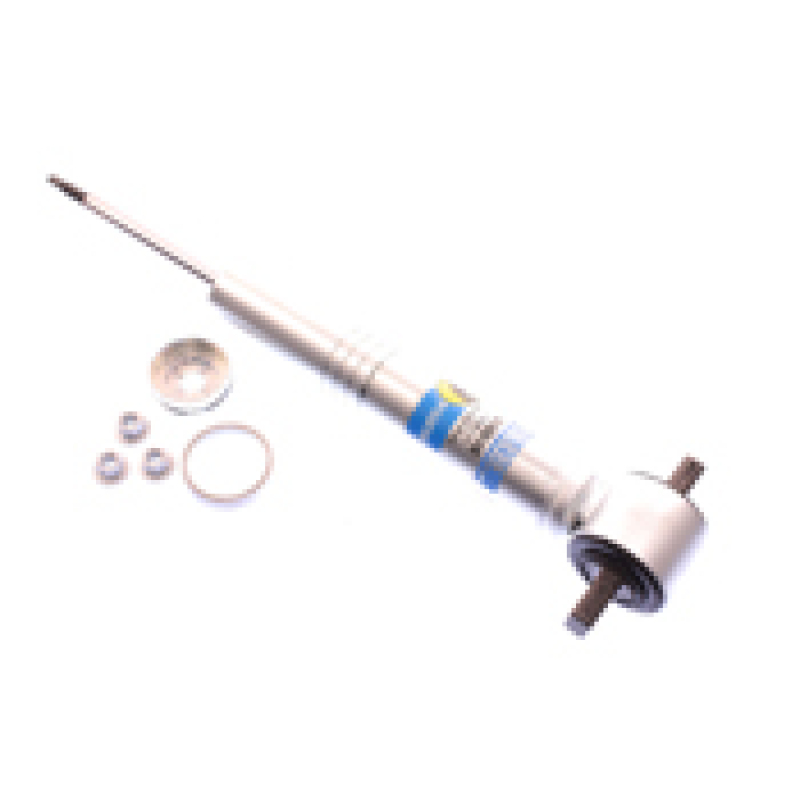

Bilstein 5100 Series 2012 GMC Sierra 1500 XFE Front 46mm Monotube Shock Absorber
Bilstein 5100 Series 2012 GMC Sierra 1500 XFE Front 46mm Monotube Shock Absorber
A$392.92
IN STOCK! Est Ship 3-5 days.
This item is IN STOCK at one of our warehouses or distribution centres, the ETA is the approximate time required to prepare your order for dispatch.
We accept
Description
Bilstein B8 5100 (Ride Height Adjustable) shock absorbers are designed for trucks and SUVs with a front OE coilover style suspension. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-3 inches of front lift with OE springs (depending on application). The monotube shock absorbers feature a 46mm digressive piston a with self-adjusting deflective disc valve setting. Bilstein B8 5100 (Ride Height Adjustable) shock absorbers provide increased wheel travel and improved handling. Utilizing a B8 5100 (Ride Height Adjustable) shock absorber is the easiest way to level out your vehicle.
Product Overview
*BILSTEIN 5100 Series*
*Lifted Performance*
BILSTEIN 5100 Series Shock Absorbers are designed specifically to help your lifted truck, Jeep or SUV reach its pinnacle in ride performance, while supplying the correct tuning and length for your specific lift.
*Features and Benefits:*
* Individually engineered for a wide array of specific vehicles and lift combinations
* Monotube gas pressure technology
* Easy to install; direct bolt-on; no modification required
* Multi-layer zinc finish is the most durable in the industry
* 5100 Series provides the most comprehensive range of vehicle applications
* Lifetime Warranty
*BILSTEIN 5100 Series Ride Height Adjustable*
*Lifted Performance*
BILSTEIN 5100 Series Ride Height Adjustable Shock Absorbers are designed for front coilover style pickup and SUV suspensions. With the use of multiple snap ring grooves to position the spring seat at different heights the vehicles ride height can be changed anywhere between 0-2.5†depending on application.
*Features and Benefits:*
* An extremely affordable and practical alternative to coil spring spacers, with the benefit of BILSTEIN's superior monotube design
* Lifetime Warranty
* Utilizes the vehicle's stock front coil springs
* Zinc finish with multi-layer unique BILSTEIN coating for extreme protection
* Self-adjusting deflective disc valving with independent rebound and compression tuning
Features and Benefits
- Made In The USA
- 46mm monotube design ensures consistent, fade-free performance in all conditions
- Practical alternative to coil spring spacers, with the benefit of Bilstein monotube technology
- Adjustable spring seat offers 0-2.75in of lift, depending on the application
Product Details
| Adjustable Damping: | Non-Adjustable |
|---|---|
| Body Design: | Snap Ring Grooved Body (Coilover) |
| Body Diameter (ID): | 46mm |
| Body Inside Diameter: | 46mm |
| Boot Included: | No |
| Collapsed Length (IN): | 12.95 |
| Collapsed Length (MM): | 329 |
| Collapsed Length: | 329mm |
| Description: | B8 5100 (Ride Height Adjustable)-Shock Absorber |
| Extended Length (IN): | 18.48 |
| Extended Length (MM): | 469.3 |
| Extended Length: | 469.3mm |
| Finish: | Zinc Plated |
| Internal Design: | Monotube |
| Lower Mount Type: | Bar Pin |
| Part Number: | bil24-186940 |
| PartType: | Shocks / Struts |
| Piston Diameter: | 46mm |
| Position: | Front |
| Prop 65 (Y/N): | Y |
| Prop 65 - Short Label: | WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov |
| Reservoir Included: | No |
| Reservoir: | No |
| Segment: | Light Truck |
| Series: | B8 5100 (Ride Height Adjustable) |
| Spring Seat Included: | No - Reuse OEM |
| Title: | Bilstein Shock Absorbers |
| Upper Mount Type: | Stem |
| WARNING CA Proposition 65 Message: | WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov |
| WARNING CA Proposition 65: | Yes |
Application Summary
Chevrolet Avalanche 2013-2007, Silverado 1500 2013-2007, Suburban 1500 2014-2007, Tahoe 2014-2007, GMC Sierra 1500 2013-2007, Yukon 2014-2007, Yukon XL 1500 2014-2007
Part Type
Suspension Shock Absorber
Features
- 46mm monotube design ensures consistent, fade-free performance in all conditions
- Adjustable spring seat offers 0-2.75in of lift, depending on the application
- Made In The USA
- Practical alternative to coil spring spacers, with the benefit of Bilstein monotube technology
Specifications
- Adjustable Damping:
- Non-Adjustable
- Body Design:
- Snap Ring Grooved Body (Coilover)
- Body Diameter (ID):
- 46mm
- Body Inside Diameter:
- 46mm
- Boot Included:
- No
- Collapsed Length (IN):
- 12.95
- Collapsed Length (MM):
- 329
- Collapsed Length:
- 329mm
- Description:
- B8 5100 (Ride Height Adjustable)-Shock Absorber
- Extended Length (IN):
- 18.48
- Extended Length (MM):
- 469.3
- Extended Length:
- 469.3mm
- Finish:
- Zinc Plated
- Internal Design:
- Monotube
- Lower Mount Type:
- Bar Pin
- Part Number:
- bil24-186940
- PartType:
- Shocks / Struts
- Piston Diameter:
- 46mm
- Position:
- Front
- Prop 65 (Y/N):
- Y
- Prop 65 - Short Label:
- WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov
- Reservoir Included:
- No
- Reservoir:
- No
- Segment:
- Light Truck
- Series:
- B8 5100 (Ride Height Adjustable)
- Spring Seat Included:
- No - Reuse OEM
- Title:
- Bilstein Shock Absorbers
- Upper Mount Type:
- Stem
- WARNING CA Proposition 65 Message:
- WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov
- WARNING CA Proposition 65:
- Yes
Reference Information
| Brand Name/s | Bilstein |
|---|---|
| StreetFX SKU | bil24-186940 |
| SFX Item ID | 4439369 |
| Supplier Item Code | 4439369 |
| Manufacturer SKU | 24-186940 |
| Manufacturer UPC | N/A |
| Alternative References | bsn-24-186940, 46mm |
Compatibility
Chevrolet Avalanche 2013-2007, Silverado 1500 2013-2007, Suburban 1500 2014-2007, Tahoe 2014-2007, GMC Sierra 1500 2013-2007, Yukon 2014-2007, Yukon XL 1500 2014-2007
