Bilstein Motorsport 10in. TRVL CL W/RESRVOIR 255/100 46mm Monotube Shock Absorber
Bilstein Motorsport 10in. TRVL CL W/RESRVOIR 255/100 46mm Monotube Shock Absorber
A$761.31
Limited Availability from MFR
Limited stock available from the manufacturer's distribution centre. The dispatch timeframe shown is an estimate based on historical orders of this part. This item is not held in our own warehouse, and availability and release timing may vary depending on manufacturer stock movements and processing at the time of ordering.
We accept
Description

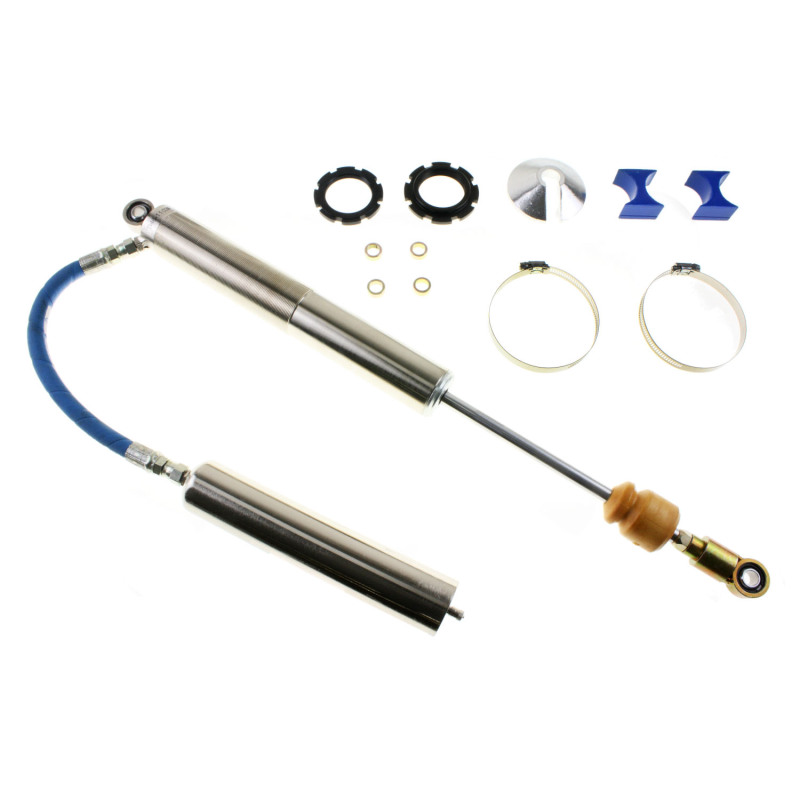

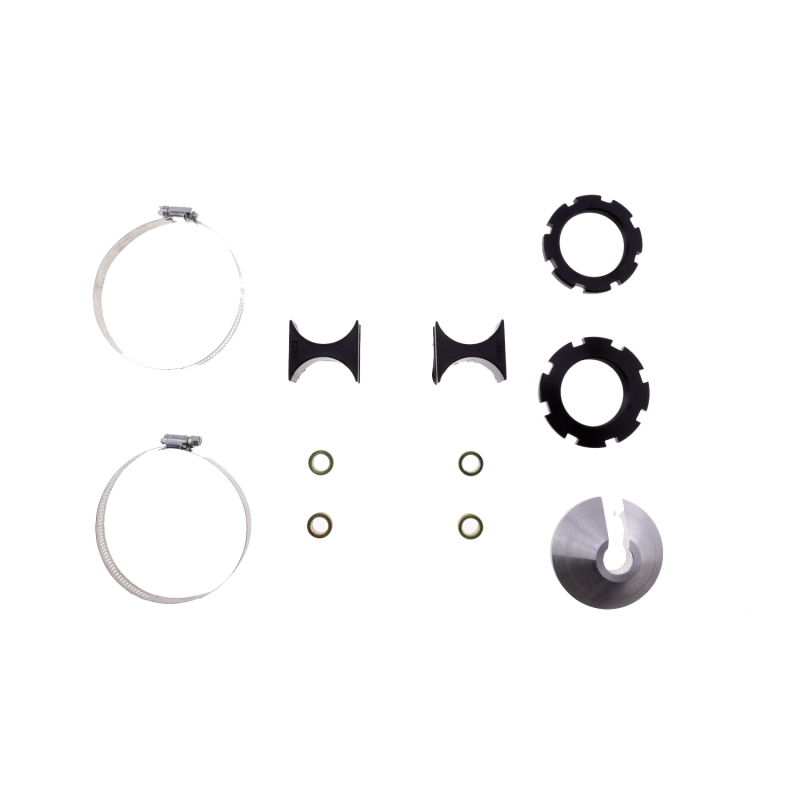

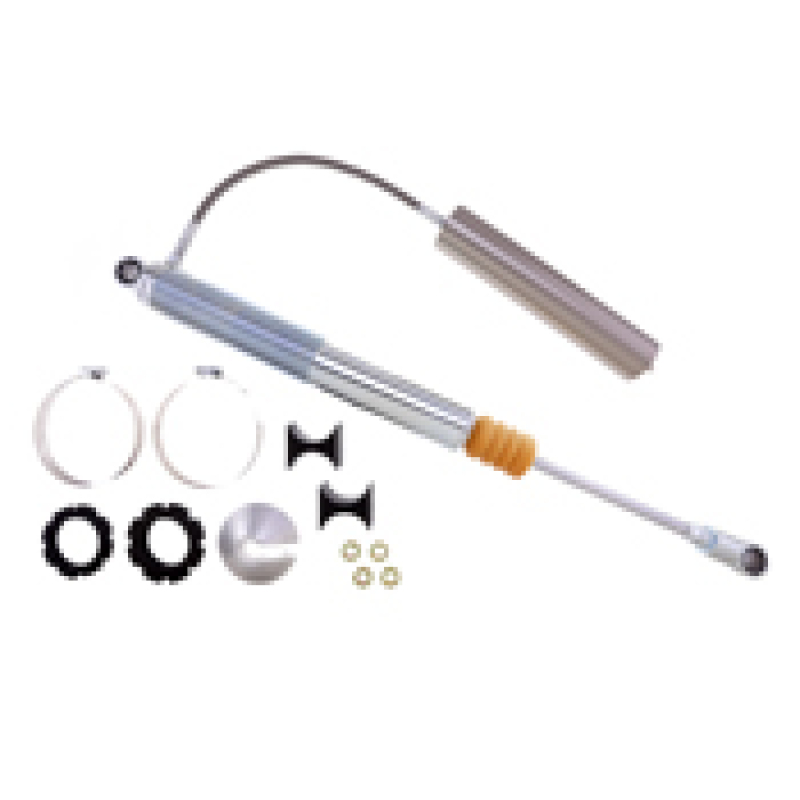

Bilstein M 7100 (Coilover) is designed for custom off-road motorsports and recreational applications. These coilovers are owner rebuildable and are available in remote reservoir or non-reservoir configurations. Each coilover is supplied with ½ inch heims and misalignment spacers for maximum durability in off-road conditions. M 7100 (Coilover) is offered in a 10 inch travel stroke with a choice of multiple valve settings and will accommodate a 2.5 inch ID coil spring. All service components are readily available and sold separately. M 7100 (Coilover) is the perfect choice for light weight off-road vehicles.
Product Overview
The M 7100 Classic shocks are the most successful shock absorbers in off-road racing history. Since their inception in the early 70's, BILSTEIN's monotube shocks have equipped more winning off-road cars and trucks than any other shock. Today, the M 7100 Classic shocks are perfect for meeting the demands of off-road recreational vehicles such as forerunner trucks, Baja Bugs, rockcrawlers and sandbuggies.
*Features and Benefits:*
* Monotube gas pressure construction
* Threaded body lengths to 10" travel
* Self-adjusting deflecting disc valving
* 2" diameter shock body
* High-flow piston reduces harshness
* Factory rebuildable
* Spherical bearing end loops, which accept 1/2" and 12mm mounting bolts.
* Available for standard and coilover applications, this series is primarily designed for vehicles with modified shock mounts and Type I VW suspension.
Features and Benefits
- Prevents Performance Loss Under Extreme Work Conditions
- High-flow piston reduces harshness
- Self-adjusting deflective disc valving reacts immediately to surface changes enabling maximum vehicle control
- 46mm monotube design ensures consistent, fade-free performance in all conditions
Product Details
| Adjustable: | Yes |
|---|---|
| Body Design: | Threaded Body (Coilover) |
| Body Diameter (ID): | 46mm |
| Body Inside Diameter: | 46mm |
| Collapsed Length (IN) Rounded: | 17 |
| Collapsed Length (IN): | 17.44 |
| Collapsed Length (MM): | 443 |
| Collapsed Length Rounded: | 17 in. |
| Collapsed Length: | 443mm |
| Compression @0.52m/s: | 1000 |
| Description: | M 7100 (Coilover)-Shock Absorber |
| Extended Length (IN) Rounded: | 27 |
| Extended Length (IN): | 26.65 |
| Extended Length (MM): | 676.9 |
| Extended Length Rounded: | 27 in. |
| Extended Length: | 676.9mm |
| Finish: | Nickel Plated with Clear Powder Coat |
| Internal Design: | Monotube |
| Lower Mount Type: | 0.500 in. Heim |
| Mount Type: | Eye-to-Eye |
| Optional Reservoir Clamp: | N/A |
| Part Number: | bilB46-1103R |
| PartType: | Shocks / Struts |
| Piston Diameter: | 46mm |
| Prop 65 (Y/N): | Y |
| Prop 65 - Short Label: | WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov |
| Rebound @0.26m/s: | 2550 |
| Rebound @0.52m/s: | 2550 |
| Reservoir Included: | Yes |
| Reservoir: | Yes |
| Segment: | Motorsports |
| Series: | M 7100 (Coilover) |
| Shock Stroke: | 9.210 in. |
| Spring Hardware: | Single Rate (2.5in) |
| Spring Seat Included: | Yes |
| Title: | Bilstein Shock Absorbers |
| Upper Mount Type: | 0.500 in. Heim |
| WARNING CA Proposition 65 Message: | WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov |
| WARNING CA Proposition 65: | Yes |
Application Summary
No Applications
Part Type
Suspension Shock Absorber
Features
- 46mm monotube design ensures consistent, fade-free performance in all conditions
- High-flow piston reduces harshness
- Prevents Performance Loss Under Extreme Work Conditions
- Self-adjusting deflective disc valving reacts immediately to surface changes enabling maximum vehicle control
Specifications
- Product Attributes - Brand
- Bilstein
- Product Attributes - Manufacturer's Part Number
- B46-1103R
- Product Attributes - Part Type
- Shocks and Struts
- Product Attributes - UPC
- 790832512337
Reference Information
| Brand Name/s | Bilstein |
|---|---|
| StreetFX SKU | bilB46-1103R |
| SFX Item ID | 4440016 |
| Supplier Item Code | 4440016 |
| Manufacturer SKU | B46-1103R |
| Manufacturer UPC | 790832512337 |
| Alternative References | bsn-b46-1103r, 10in., 46mm |
