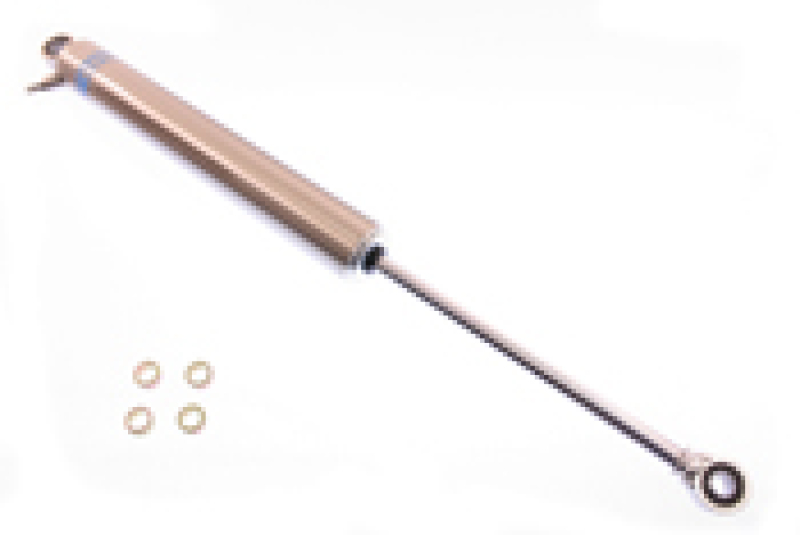

Bilstein Motorsport Class 11 FRNT W/SCHRDR 220/115 46mm Monotube Shock Absorber
Bilstein Motorsport Class 11 FRNT W/SCHRDR 220/115 46mm Monotube Shock Absorber
A$573.32
Available from MFR.
This item is available from the manufacturer's distribution centre. The dispatch timeframe shown is an estimate based on historical order processing and release times for this part. This item is not held in our own warehouse, and actual dispatch timing may vary depending on manufacturer workload and logistics at the time of ordering.
We accept
Description

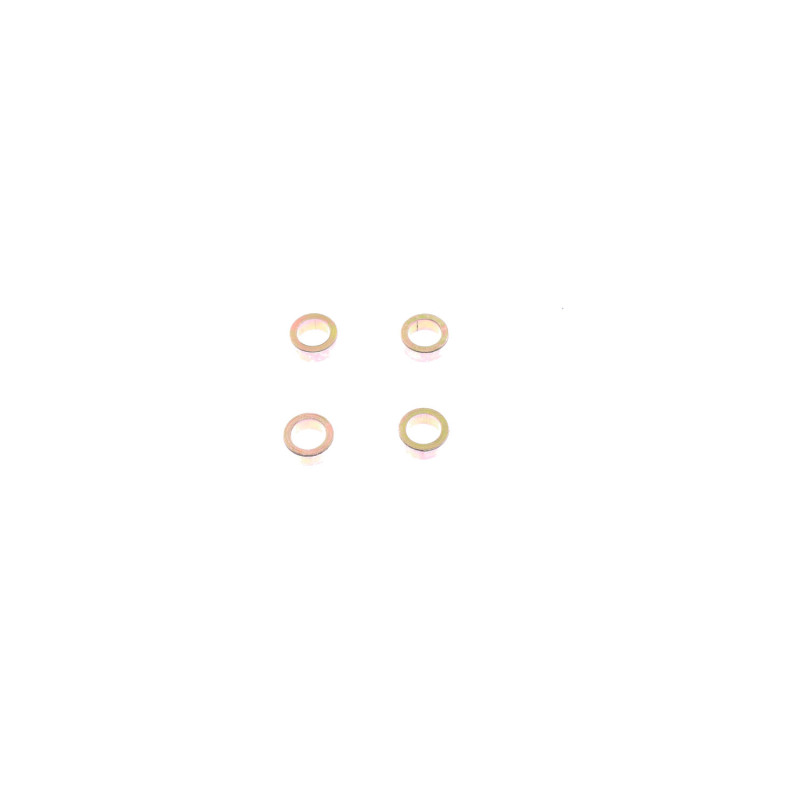

Bilstein M 7100 shock absorbers are designed for custom off-road motorsports and recreational applications. These shock absorbers are owner rebuildable and are available in remote reservoir or non-reservoir configurations. Each shock absorber is supplied with ½ inch heims and misalignment spacers for maximum durability in off-road conditions. M 7100 shock absorbers are available in a wide array of lengths and valve settings. Service components for M 7100 shock absorbers are readily available and sold separately. M 7100 shock absorbers will offer reliable performance that is customizable to meet specific demands.
Product Overview
Bilstein M 7100 shock absorbers are designed for custom off-road motorsports and recreational applications. These shock absorbers are owner rebuildable and are available in remote reservoir or non-reservoir configurations. Each shock absorber is supplied with ½ inch heims and misalignment spacers for maximum durability in off-road conditions. M 7100 shock absorbers are available in a wide array of lengths and valve settings. Service components for M 7100 shock absorbers are readily available and sold separately. M 7100 shock absorbers will offer reliable performance that is customizable to meet specific demands.
Features and Benefits
- Prevents Performance Loss Under Extreme Work Conditions
- 46mm monotube design ensures consistent, fade-free performance in all conditions
- High-flow piston reduces harshness
- Self-adjusting deflective disc valving reacts immediately to surface changes enabling maximum vehicle control
Product Details
| Adjustable: | Yes |
|---|---|
| Body Design: | Smooth Body (Non-Coilover) |
| Body Diameter (ID): | 46mm |
| Body Inside Diameter: | 46mm |
| Collapsed Length (IN) Rounded: | 12 |
| Collapsed Length (IN): | 11.83 |
| Collapsed Length (MM): | 300.5 |
| Collapsed Length Rounded: | 12 in. |
| Collapsed Length: | 300.5mm |
| Compression @0.52m/s: | 1150 |
| Description: | M 7100-Shock Absorber |
| Extended Length (IN) Rounded: | 18 |
| Extended Length (IN): | 18.46 |
| Extended Length (MM): | 468.9 |
| Extended Length Rounded: | 18 in. |
| Extended Length: | 468.9mm |
| Finish: | Nickel Plated with Clear Powder Coat |
| Internal Design: | Monotube |
| Lower Mount Type: | 0.500 in. Heim |
| Mount Type: | Stem-to-Eye |
| Optional Reservoir Clamp: | N/A |
| Part Number: | bilB46-1085S |
| PartType: | Shocks / Struts |
| Piston Diameter: | 46mm |
| Prop 65 (Y/N): | Y |
| Prop 65 - Short Label: | WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov |
| Rebound @0.26m/s: | 2200 |
| Rebound @0.52m/s: | 2200 |
| Reservoir Included: | No |
| Reservoir: | No |
| Segment: | Motorsports |
| Series: | M 7100 |
| Shock Stroke: | 6.630 in. |
| Spring Seat Included: | No |
| Title: | Bilstein Shock Absorbers |
| Upper Mount Type: | Stem |
| WARNING CA Proposition 65 Message: | WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov |
| WARNING CA Proposition 65: | Yes |
Application Summary
No Applications
Part Type
Suspension Shock Absorber
Features
- 46mm monotube design ensures consistent, fade-free performance in all conditions
- High-flow piston reduces harshness
- Prevents Performance Loss Under Extreme Work Conditions
- Self-adjusting deflective disc valving reacts immediately to surface changes enabling maximum vehicle control
Specifications
- Product Attributes - Brand
- Bilstein
- Product Attributes - Manufacturer's Part Number
- B46-1085S
- Product Attributes - Part Type
- Shocks and Struts
- Product Attributes - Product Line
- Bilstein M 7100 Series Shocks
- Product Attributes - UPC
- 790832512306
- Product Attributes - Ride Height
- Custom
- Product Attributes - Extended Length (in.)
- 18.46
- Product Attributes - Collapsed Length (in.)
- 11.83
- Product Attributes - Internal Design
- Monotube
- Product Attributes - Adjustable Valving
- Yes
- Product Attributes - Gas Charged
- Yes
- Product Attributes - Upper Mount
- Stud
- Product Attributes - Lower Mount
- Bearing
- Product Attributes - Bushing Material
- Spherical bearing/Rubber
- Product Attributes - Bushing Color
- Black/Natural
- Product Attributes - Boot Included
- No
- Product Attributes - Body Diameter (in.)
- 1.811
- Product Attributes - Remanufactured
- No
- Product Attributes - Quantity
- Sold individually.
- Product Attributes - Notes
- Non-reservoir shock. 1/2 in. Stem upper mount and Heim bottom mount. Smooth non-threaded shock body is nickel plated with clear powdercoat. Shock stroke is 6.63 inches. Rebound is 2200 and compression is 1150.
Reference Information
| Brand Name/s | Bilstein |
|---|---|
| StreetFX SKU | bilB46-1085S |
| SFX Item ID | 4440015 |
| Supplier Item Code | 4440015 |
| Manufacturer SKU | B46-1085S |
| Manufacturer UPC | 790832512306 |
| Alternative References | bsn-b46-1085s, 46mm |
