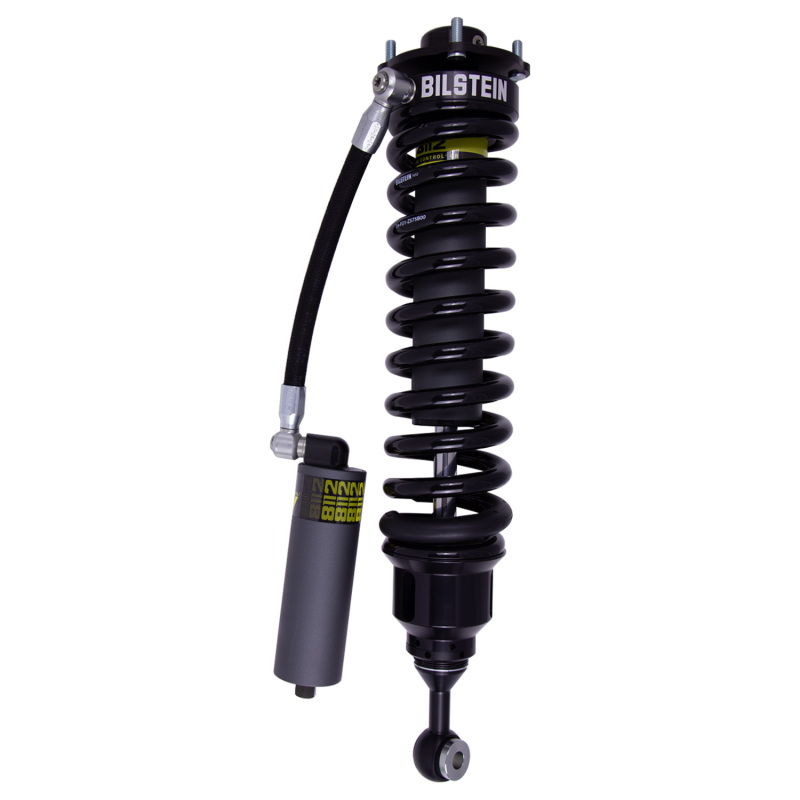

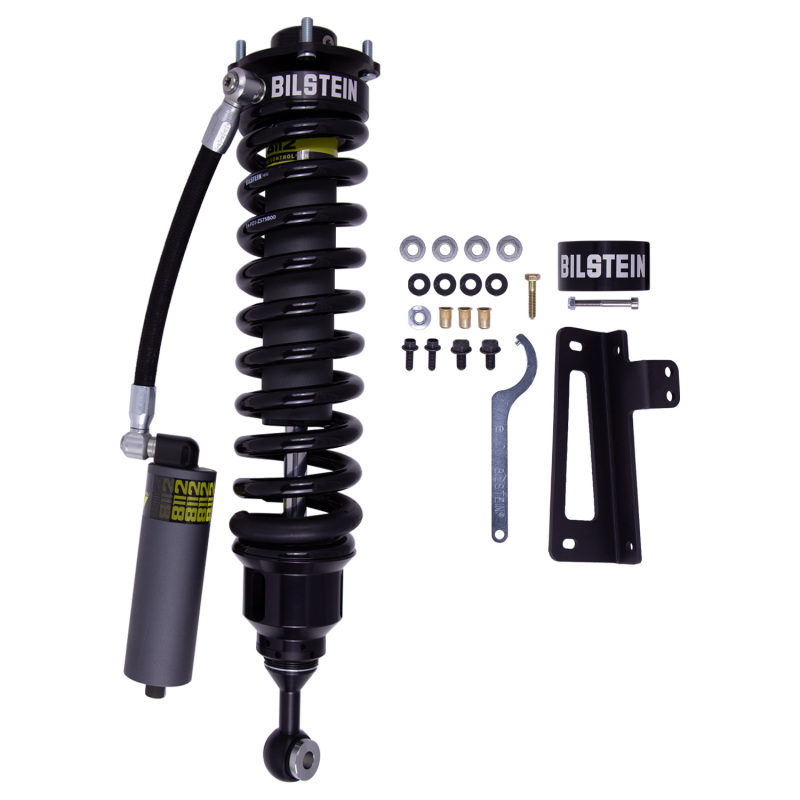

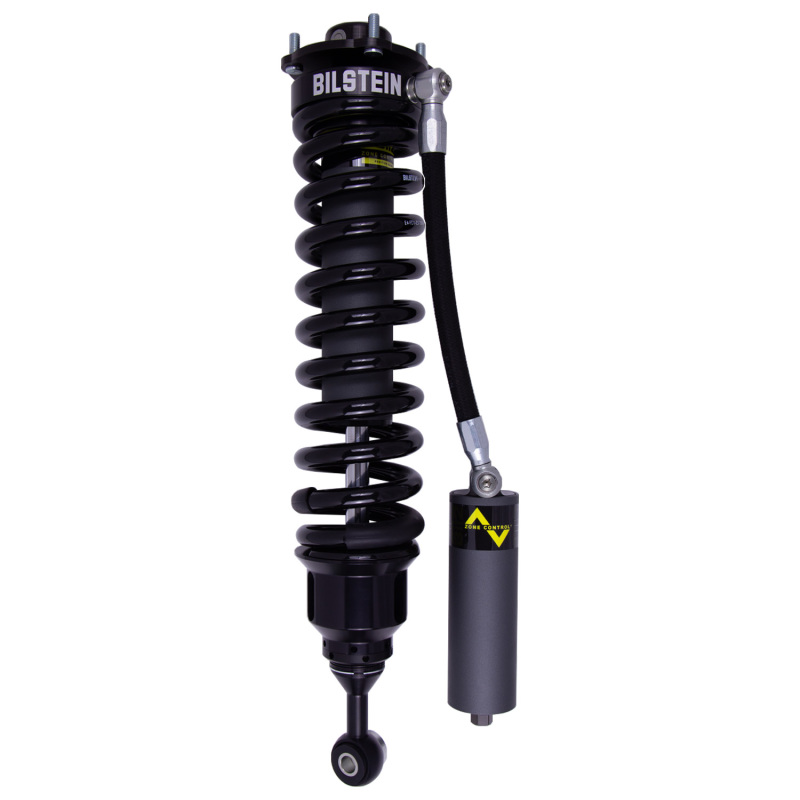

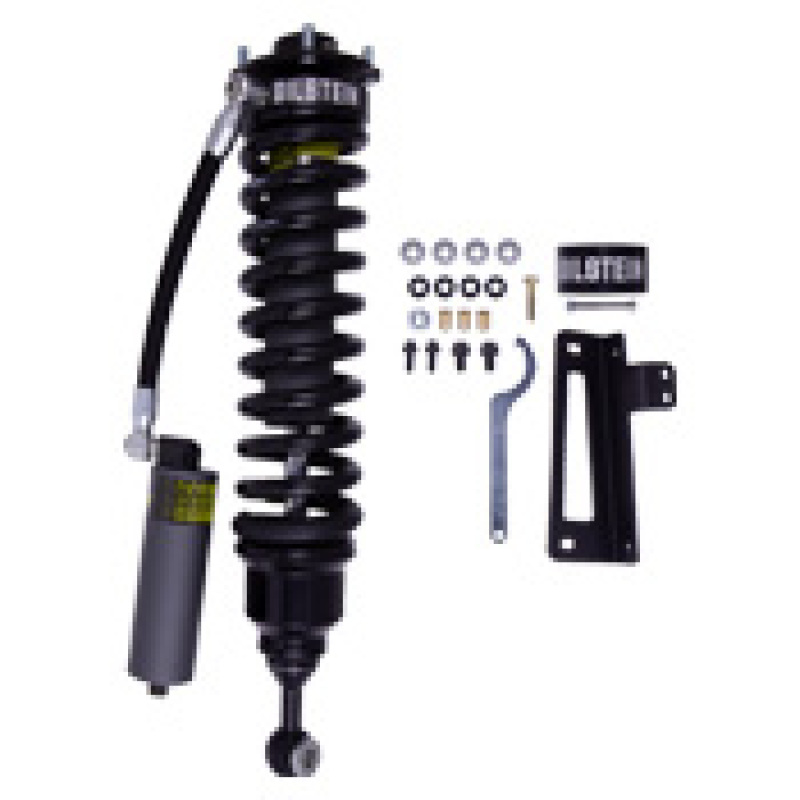

Bilstein B8 8112 Series 07-21 Toyota Tundra Zone Control Monotube Front Right Corner Module
Bilstein B8 8112 Series 07-21 Toyota Tundra Zone Control Monotube Front Right Corner Module
A$2,651.89
LAST ONE! Est Ship 3-5 days.
LAST ONE! This is the last unit at our distribution centre. Contact us if you need more. The ETA is the approximate time required to prepare your order for dispatch.
We accept
Description
Bilstein B8 8112 (ZoneControl CR) is a direct fit, 2.65-in body position sensitive coilover shock designed for light trucks and SUV’s. ZoneControl CR is a revolutionary technology delivering position sensitive damping. The system incorporates a triple piston design, offering 3 stages of compression valving and 2 stages of rebound valving. The coilover module utilizes a threaded spring seat for ride height adjustability ranging from 0-3.8” (depending on application). The coilover is supplied with a remote reservoir for increased cooling and an accompanied, bolt-on anodized reservoir chassis mount. BILSTEIN B8 8112 (ZoneControl) CR position sensitive coilovers will offer unparalleled ride comfort during every day driving combined with maximum control over large suspension inputs.
Product Overview
Bilstein B8 8112 (ZoneControl CR) is a direct fit, 2.65-in body position sensitive coilover shock designed for light trucks and SUV’s. ZoneControl CR is a revolutionary technology delivering position sensitive damping. The system incorporates a triple piston design, offering 3 stages of compression valving and 2 stages of rebound valving. The coilover module utilizes a threaded spring seat for ride height adjustability ranging from 0-3.8” (depending on application). The coilover is supplied with a remote reservoir for increased cooling and an accompanied, bolt-on anodized reservoir chassis mount. BILSTEIN B8 8112 (ZoneControl) CR position sensitive coilovers will offer unparalleled ride comfort during every day driving combined with maximum control over large suspension inputs.
Features and Benefits
- 60mm remote reservoir for increased oil capacity and cooling
- Triple piston design delivers comfort during every day driving conditions and maximum control under large suspension inputs
- ZoneControl® CR: Position sensitive damping with 3 compression zones and 2 rebound zones, controlled by 3 independent pistons
Product Details
| Adjustable Damping: | Non-Adjustable |
|---|---|
| Aftermarket Upper Arms Required: | Yes |
| Body Design: | Smooth Body (Coilover) |
| Body Diameter (OD): | 2.65 in. |
| Body Material: | Steel |
| Boot Included: | No |
| Collapsed Length (IN): | 19.43 |
| Collapsed Length (MM): | 493.6 |
| Description: | Bilstein B8 8112 Series 07-21 Toyota Tundra Zone Control Monotube Front Right Corner Module |
| Extended Length (IN): | 25.79 |
| Extended Length (MM): | 655.1 |
| Finish: | Dampers: EVO Grey/Springs: Black |
| Internal Design: | Monotube |
| Lower Mount Type: | Eye 16.1mm |
| Part Number: | bil41-326039 |
| PartType: | Shocks / Struts |
| Piston Diameter: | 60mm |
| Prop 65 (Y/N): | Y |
| Prop 65 - Short Label: | WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov |
| Reservoir: | Yes |
| Segment: | Light Truck |
| Series: | B8 8112 (ZoneControl CR) |
| Spring Seat Included: | Yes |
| Title: | Bilstein Shock Absorbers |
| Upper Mount Type: | Special |
Application Summary
Toyota Tundra 2021-2007
Part Type
Suspension Shock Absorber and Coil Spring Assembly
Features
- 60mm remote reservoir for increased oil capacity and cooling
- Triple piston design delivers comfort during every day driving conditions and maximum control under large suspension inputs
- ZoneControl® CR: Position sensitive damping with 3 compression zones and 2 rebound zones, controlled by 3 independent pistons
Specifications
- Product Attributes - Brand
- Bilstein
- Product Attributes - Manufacturer's Part Number
- 41-326039
- Product Attributes - Part Type
- Coilover Shocks and Struts
- Product Attributes - Product Line
- Bilstein B8 8112 Zone Control Coilover Shocks
- Product Attributes - UPC
- 651860891866
- Product Attributes - Coilover Shock Type
- Non-adjustable
- Product Attributes - Suspension Height Adjustment
- 0.0-3.8 in. raised
- Product Attributes - Shock Body Material
- Aluminum
- Product Attributes - Shock Body Finish
- Black anodized
- Product Attributes - Adjustable Valving
- No
- Product Attributes - Extended Length (in.)
- 25.79
- Product Attributes - Collapsed Length (in.)
- 19.43
- Product Attributes - Threaded Adjustment Range
- 3.800 in.
- Product Attributes - Upper Mount
- Stock
- Product Attributes - Lower Mount
- Stock
- Product Attributes - Internal Design
- Triple-tube
- Product Attributes - Gas Charged
- Yes
- Product Attributes - Body Diameter (in.)
- 2.362
- Product Attributes - Bushing Material
- Rubber
- Product Attributes - Bushing Color
- Black
- Product Attributes - Coilover Springs Included
- Yes
- Product Attributes - Spring Finish
- Black
- Product Attributes - Adjustable Mounting Bracket Included
- No
- Product Attributes - Hardware Included
- Yes
- Product Attributes - Quantity
- Sold individually.
Reference Information
| Brand Name/s | Bilstein |
|---|---|
| StreetFX SKU | bil41-326039 |
| SFX Item ID | 4441589 |
| Supplier Item Code | 4441589 |
| Manufacturer SKU | 41-326039 |
| Manufacturer UPC | 651860891866 |
| Alternative References | bsn-41-326039 |
Compatibility
Toyota Tundra 2021-2007
